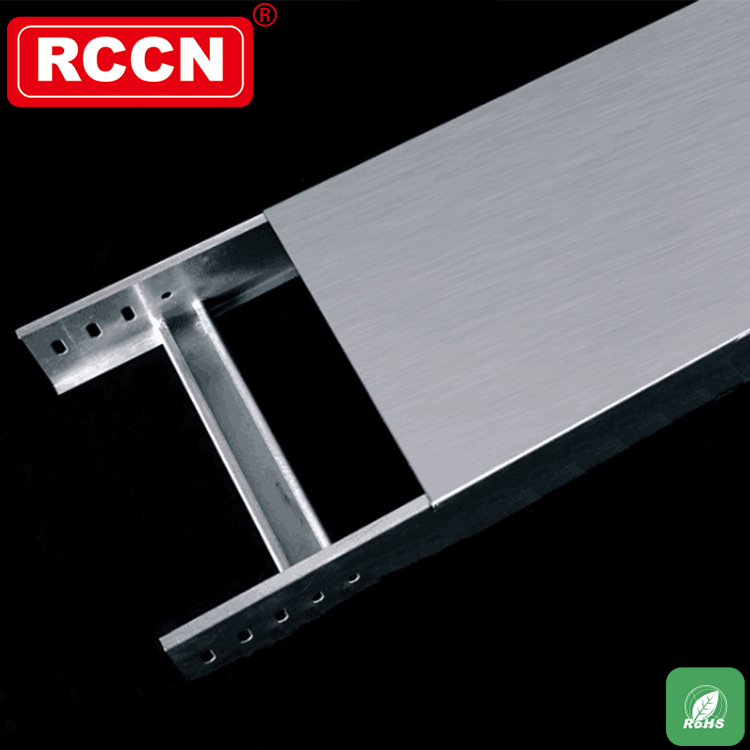

Stainless steel trough bridge

Galvanized ladder bridge, stainless steel trough bridge

Bridge: The full name of a rigid structural system with closely connected cables consisting of trough, tray or step type straight section, bend through, three-way, four-way assembly and support arm (arm bracket), hanger, etc. Bridge)
The current bridge is continuously recognized by the market and accepts the localization of the cable tray industry. The products use high-quality cold-rolled steel sheets and have received extensive attention. The products are made of high-quality cold-rolled steel sheets. The surface processes include cold-galvanizing, hot-dip galvanizing, electrostatic spraying and fire-retardant coatings. , baking varnish, etc.

Specification

Galvanized ladder bridge
model	widthA	widthB
XQJ-T-01-6-2	200	60
XQJ-T-01-10-2		100
XQJ-T-01-15-2		150
XQJ-T-01-6-3	300	60
XQJ-T-01-10-3		100
XQJ-T-01-15-3		150
XQJ-T-01-6-4	400	60
XQJ-T-01-10-4		100
XQJ-T-01-15-4		150
XQJ-T-01-6-5	500	60
XQJ-T-01-10-5		100
XQJ-T-01-15-5		150
XQJ-T-01-6-6	600	60
XQJ-T-01-10-6		100
XQJ-T-01-15-6		150
XQJ-T-01-6-8	800	60
XQJ-T-01-10-8		100
XQJ-T-01-15-8		150

Stainless steel trough bridge
model	widthA	widthB
XQJ-T-01-6-2	50	25
XQJ-T-01-10-2	100	50
XQJ-T-01-15-2	150	75
XQJ-T-01-6-3	200	100
XQJ-T-01-10-3	250	125
XQJ-T-01-15-3	300	150
XQJ-T-01-6-4	400	200
XQJ-T-01-10-4	500	200
XQJ-T-01-15-4	600	200
XQJ-T-01-6-5	800	200
