Rubber plug SPT/SPR-M/SPR-L

Features: Anti-aging rubber for blocking holes

1. Single-hole connector rubber plug SPT
Product Material: Anti-aging rubber material. Product Certification: European environmental ROHS. Operating temperature: static -50 ° C to 150 ° C.
Color type: black. How to use: Plug the plug into the hole, tighten the head to fix it.
Functional Description: Suitable for use when the cable is not threaded, mainly from the fixed head with dust and water. T-shaped head structure.
2. Porous rubber joints SPR-M
SPR-M Product Material: Anti-aging rubber material. Product Certification: European environmental ROHS, rubber raw materials UL
Operating temperature: static -50 ° C to 150 ° C. Color type: black.
How to use: Plug the plug into the hole, tighten the head to fix it.
Functional Description: Suitable for use when the cable is not threaded, mainly from the porous head with dust and water.
3. Multi-joint rubber plug SPR-L
Product Material: Silicone rubber. Product Certification: European environmental ROHS. Operating temperature: Static -40 ° C to 150 ° C.
How to use: Plug the plug into the hole, tighten the head to fix it.
Functional Description: Suitable for use when the cable is not threaded, mainly from the fixed head with dust and water.
This product is more reasonable for the new design, a model can be applied to a variety of connectors, single hole or porous are applicable

Specification

1. Single-hole connector rubber plug SPT (anti-aging rubber for blocking)


Item No

A

B

B1

C

package
SPT-5B 11 5.5 8.7 18 50PCS
SPT-7B 13.2 7 10.7 18
SPT-9B 15.5 9.2 12.7 18
SPT-10B 17 10.5 14.3 18
SPT-12B 15.5 12 12.7 18
SPT-14B 17 14 14.4 18 25PCS
SPT-18B 22 17.8 19.3 18
SPT-24B 28 24.5 25 18
SPT-30B 36 30.6 33 20
SPT-41B 46 41 13.1 20
SPT-47B 53 47.3 51.6 20

2 porous joints rubber plug (anti-aging rubber for blocking holes)

Item No.

A

B

C

package
SPR-2MB 3 2 15 100PCS
SPR-3MB 4 3 15
SPR-4MB 5 4 15
SPR-5MB 6 5 15
SPR-6MB 7.5 6 15
SPR-7MB 8.5 7 15 50PCS
SPR-8MB 9.5 8 15
SPR-9MB 10.5 9 15
SPR-10MB 11.5 10 15

3. Multi-joint rubber plug SPR-L (trapezoidal plug)

Item No.   A   B   C Suitable for joints
Path range
package
SPR-0512LB 12 5 20 5-12 100PCS
SPR-0815LB 15 8 20 8-15
SPR-1520LB 20 15 27 15-20
SPR-2025LB 25 20 27 20-25
SPR-2532LB 32 25 27 25-32
SPR-3238LB 38 32 27 32-38 50PCS
SPR-3744LB 44 37 27 37-44

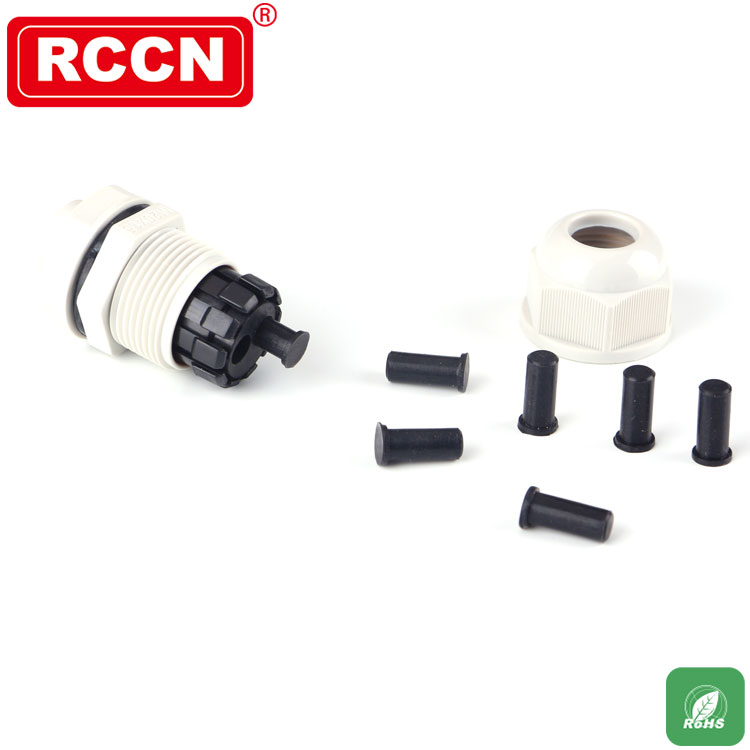

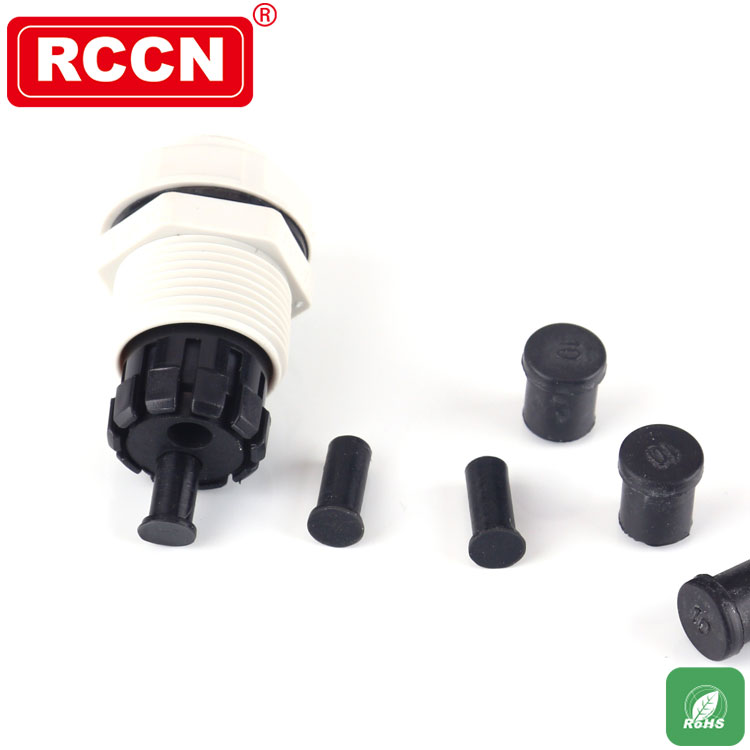

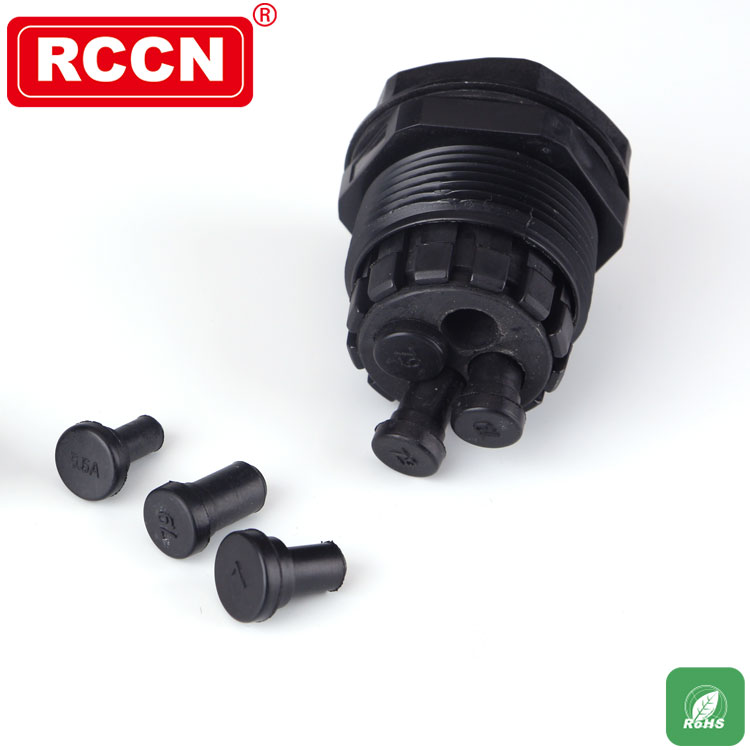

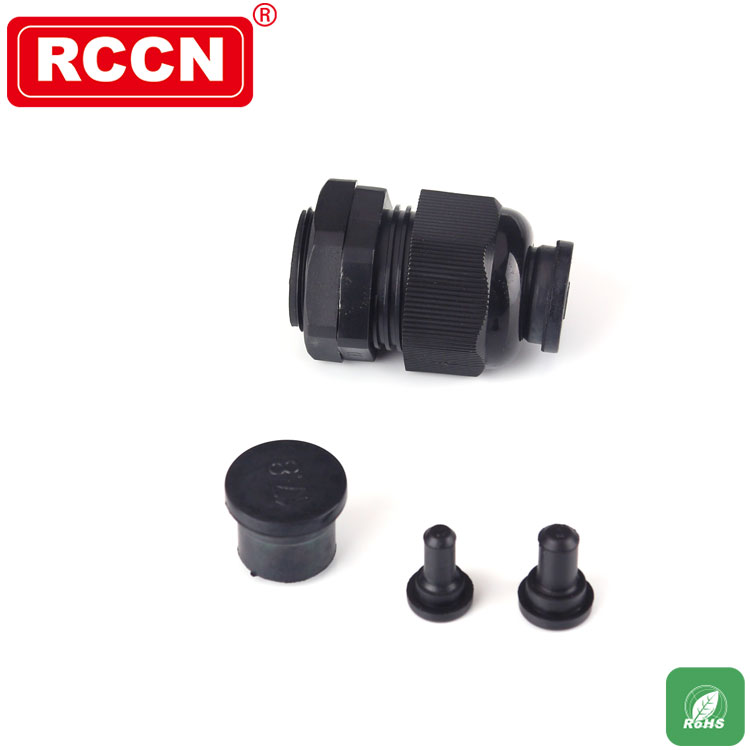

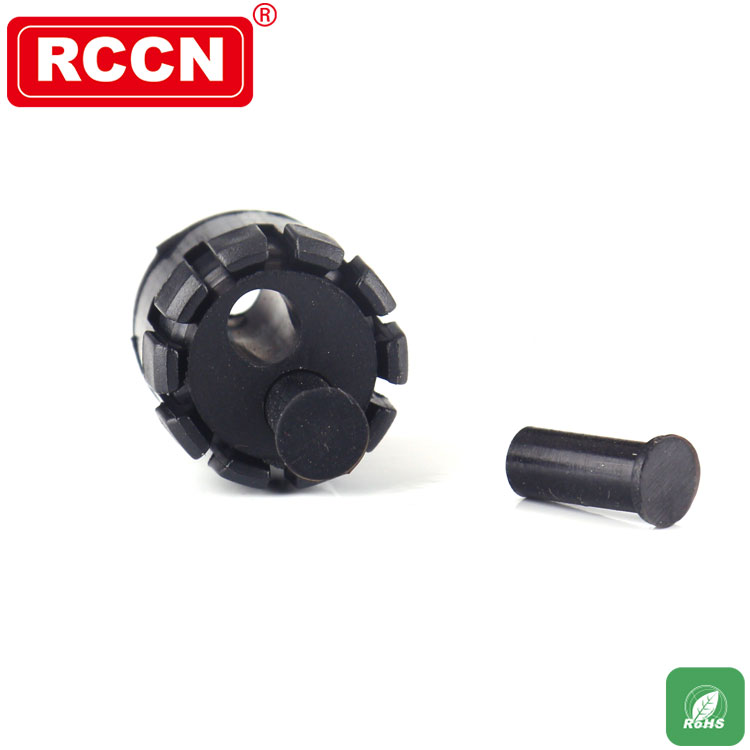

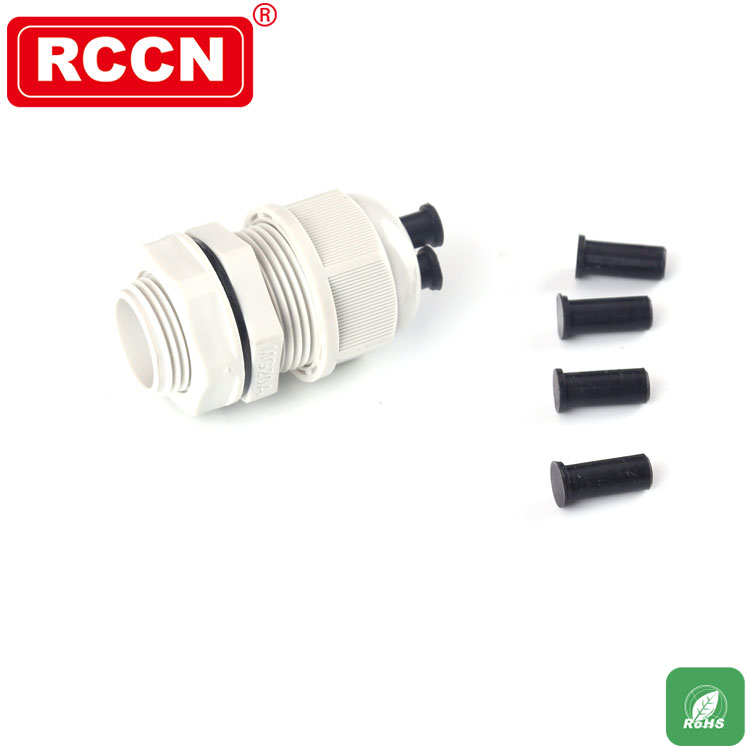

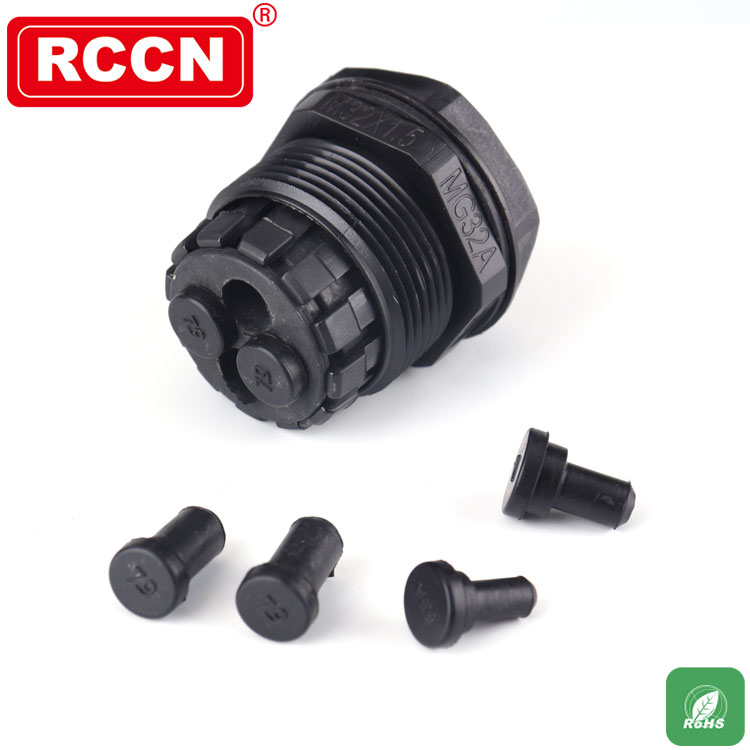

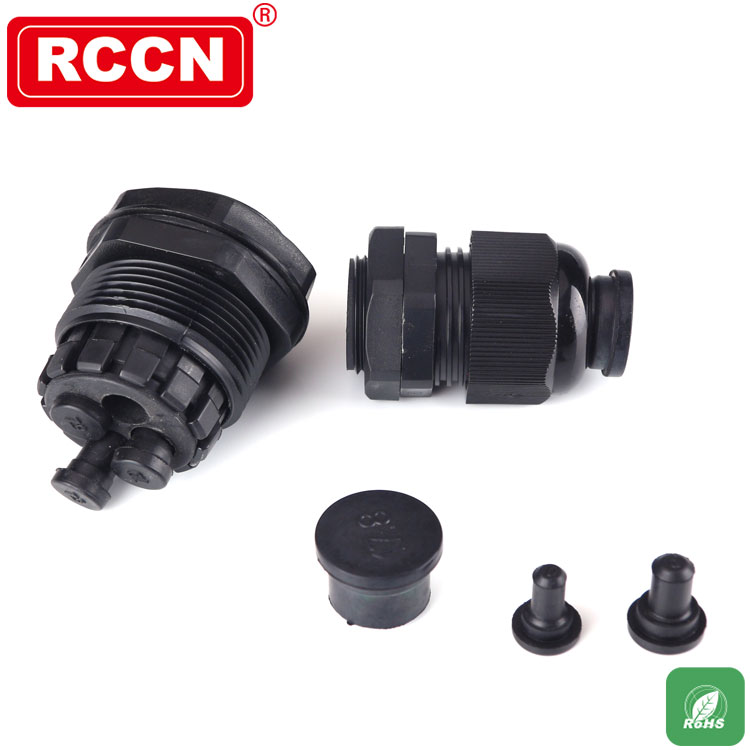

Product Show
