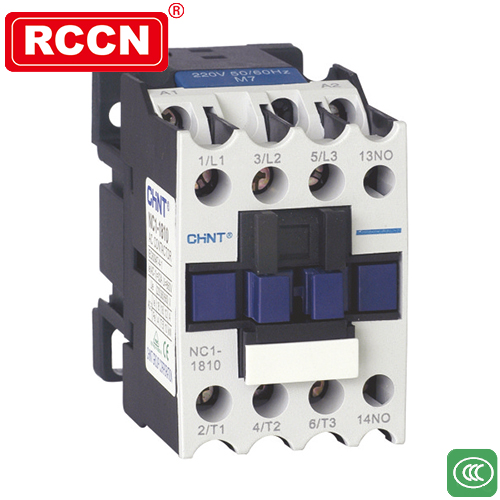

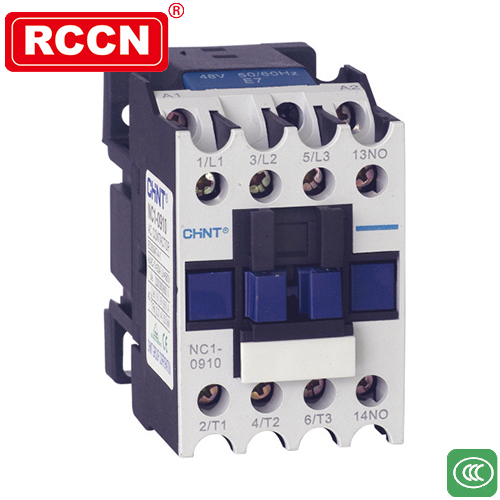

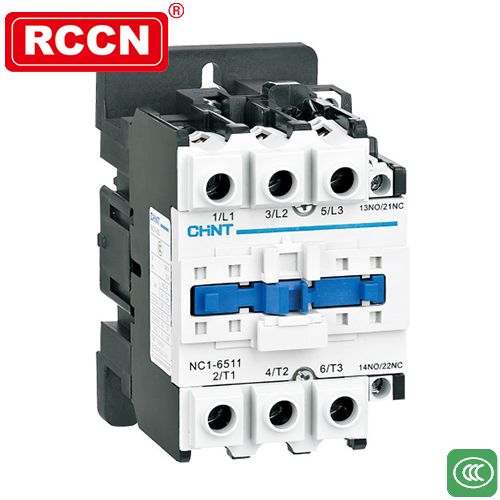

NC1 series AC contactor

Motor control and protection

NC1 series AC contactor (hereinafter referred to as contactor), mainly used for AC 50Hz (or 60Hz), rated working voltage to 690V, in the AC-3, 400 (380) V class under the rated working current to 95A, It can be used to connect and disconnect circuits at a long distance, and can form an electromagnetic starter with an appropriate thermal overload relay to protect the circuit from which an operational overload may occur. The contactor is suitable for frequently starting and controlling the AC motor.
NC1-N AC contactor (reversible type) is mainly used for AC 50Hz (or 60Hz), rated working voltage to 690V, rated working current to 95A, for motor reversible control. Its mechanical interlock mechanism ensures the reliability of the conversion of the two reversible contactor contacts.
In order to meet the needs of some special occasions, the NC1 series AC contactor is designed with an AC contactor with a DC operating system.
Compliance with standards: IEC/EN 60947-4-1, GB/T 14048.4.
