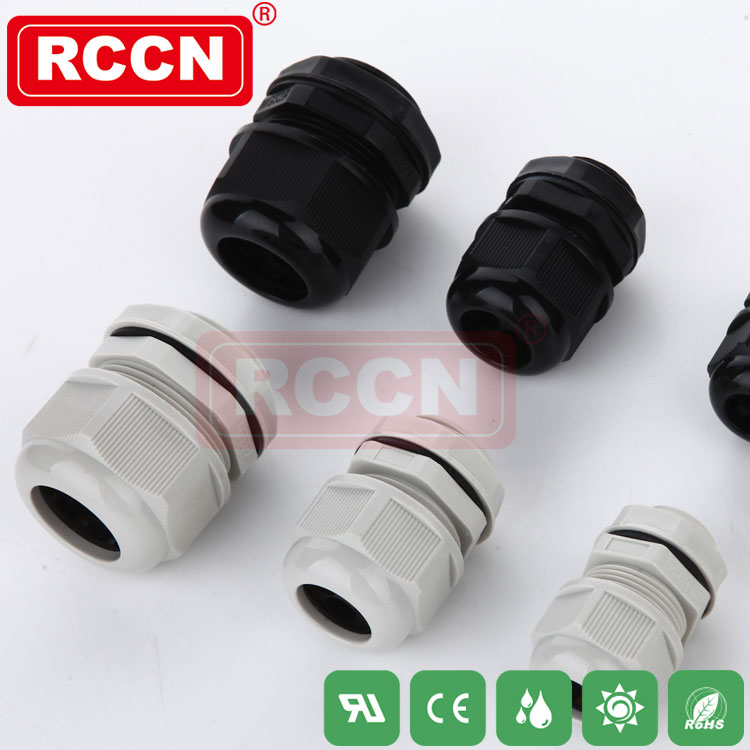

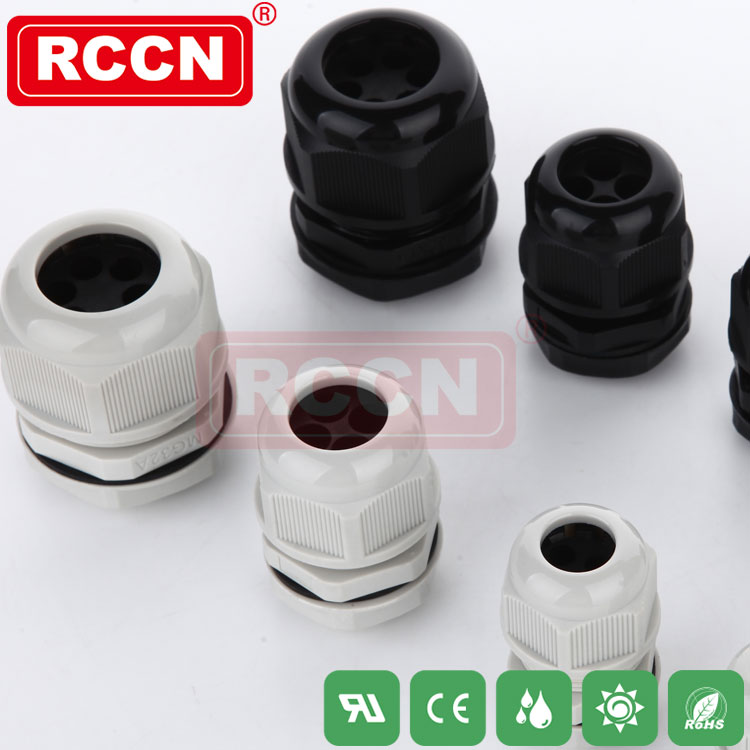

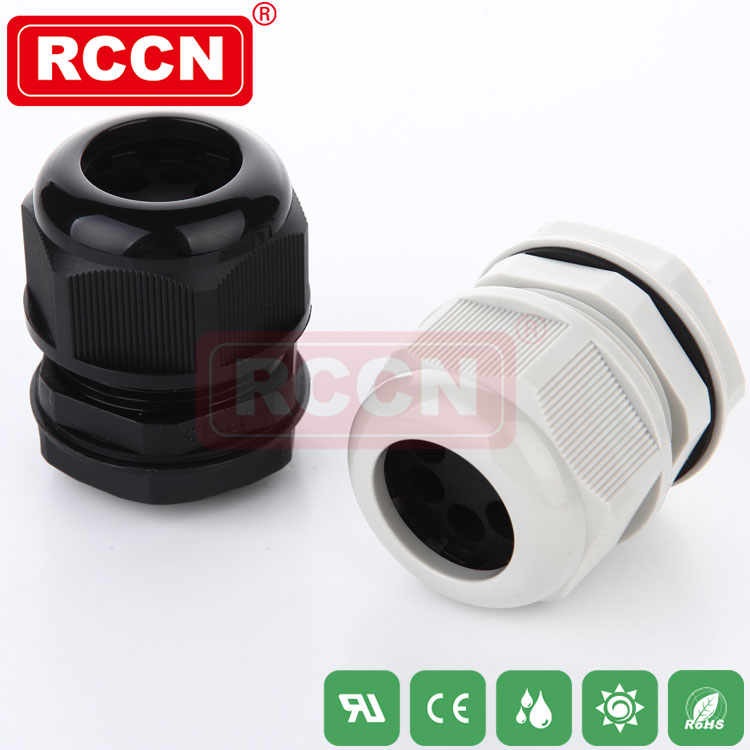

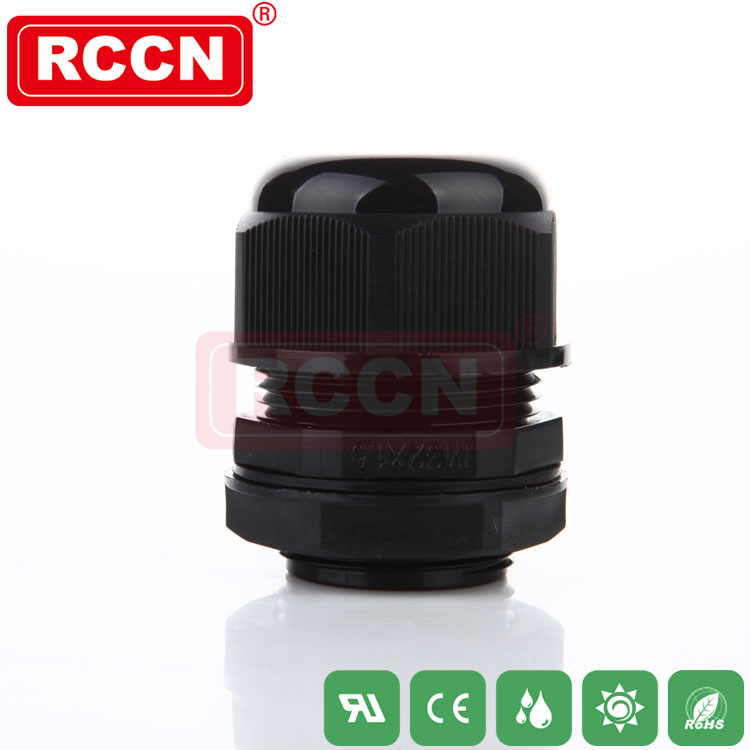

Nylon Cable Gland MGA-H - RCCN Shanghai RiCheng

Item No		Thread	cableRange Φ	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Spanner size A&F
Black	White	Thread	cableRange Φ	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Spanner size A&F
2Hole
*MG12A-H2-03B	MG12A-H2-03G	M12*1.5	1.2-3	12	12-12.3	8.5	18/19
MG16A-H2-04B	MG16A-H2-04G	M16*1.5	1.6-4.1	16	16-16.3	15	22/22
MG20A-H2-03B	MG20A-H2-03G	M20*1.5	2-3.5	20	20-20.3	15	27/27
*MG20A-H2-06B	MG20A-H2-06G	M20*1.5	2.5-6.1	20	20-20.3	15	27/27
MG25A-H2-05B	MG25A-H2-05G	M25*1.5	2-5.2	25	25-25.3	15	33/33
*MG25A-H2-08B	MG25A-H2-08G	M25*1.5	4.5-8.7	25	25-25.3	15	33/33
MG32A-H2-10B	MG32A-H2-10G	M32*1.5	5-10	32	32-32.3	15	41/42
3Hole
*MG12A-H3-02B	MG12A-H3-02G	M12*1.5	1.2-2.6	12	12-12.3	8.5	18/19
*MG16A-H3-04B	MG16A-H3-04G	M16*1.5	1.6-4.2	16	16-16.3	15	22/22
MG20A-H3-03B	MG20A-H3-03G	M20*1.5	1.5-3.6	20	20-20.3	15	27/27
*MG20A-H3-05B	MG20A-H3-05G	M20*1.5	2-5.2	20	20-20.3	15	27/27
MG25A-H3-05B	MG25A-H3-05G	M25*1.5	2.5-5.2	25	25-25.3	15	33/33
*MG25A-H3-08B	MG25A-H3-08G	M25*1.5	4-8	25	25-25.3	15	33/33
*MG32A-H3-10B	MG32A-H3-10G	M32*1.5	5-10	32	32-32.3	15	41/42
4Hole
*MG12A-H4-02B	MG12A-H4-02G	M12*1.5	1.2-2.3	12	12-12.3	8.5	18/19
MG16A-H4-03B	MG16A-H4-03G	M16*1.5	1.2-3.4	16	16-16.3	15	22/22
MG20A-H4-03B	MG20A-H4-03G	M20*1.5	1.5-3.6	20	20-20.3	15	27/27
*MG20A-H4-04B	MG20A-H4-04G	M20*1.5	2-4.8	20	20-20.3	15	27/27
MG25A-H4-05B	MG25A-H4-05G	M25*1.5	2-5.2	25	25-25.3	15	33/33
*MG25A-H4-07B	MG25A-H4-07G	M25*1.5	3.5-7.3	25	25-25.3	15	33/33
*MG32A-H4-09B	MG32A-H4-09G	M32*1.5	4.5-9	32	32-32.3	15	41/42
5Hole
MG16A-H5-02B	MG16A-H5-02G	M16*1.5	1.2-2.5	16	16-16.3	15	22/22
MG20A-H5-03B	MG20A-H5-03G	M20*1.5	1.2-3.1	20	20-20.3	15	27/27
MG20A-H5-04B	MG20A-H5-04G	M20*1.5	2-4.1	20	20-20.3	15	27/27
MG25A-H5-03B	MG25A-H5-03G	M25*1.5	1.5-3.6	25	25-25.3	15	33/33
MG25A-H5-06B	MG25A-H5-06G	M25*1.5	3-6	25	25-25.3	15	33/33
*MG32A-H5-08B	MG32A-H5-08G	M32*1.5	4-8	32	32-32.3	15	41/42
6Hole
MG16A-H6-02B	MG16A-H6-02G	M16*1.5	1-2.1	16	16-16.3	15	22/22
MG20A-H6-03B	MG20A-H6-03G	M20*1.5	1.2-3	20	20-20.3	15	27/27
MG25A-H6-03B	MG25A-H6-03G	M25*1.5	1.5-3.5	25	25-25.3	15	33/33
*MG25A-H6-05B	MG25A-H6-05G	M25*1.5	2.4-5.2	25	25-25.3	15	33/33
*MG32A-H6-07B	MG32A-H6-07G	M32*1.5	3.5-7	32	32-32.3	15	41/42
7Hole
MG20A-H7-03B	MG20A-H7-03G	M20*1.5	1.2-3	20	20-20.3	15	27/27
*MG25A-H7-03B	MG25A-H7-03G	M25*1.5	1.5-3	25	25-25.3	15	33/33
MG32A-H7-06B	MG32A-H7-06G	M32*1.5	3-6	32	32-32.3	15	41/42
8Hole
MG20A-H8-02B	MG20A-H8-02G	M20*1.5	1.2-2.5	20	20-20.3	15	27/27
*MG25A-H8-03B	MG25A-H8-03G	M25*1.5	1.5-3	25	25-25.3	15	33/33
Flat Hole
MG16A-0610B	MG16A-0610G	M16*1.5	6*10	16	16-16.3	15	22/22
MG20A-0714B	MG20A-0714G	M20*1.5	7*14	20	20-20.3	15	27/27
*MG25A-0714B	MG25A-0714G	M25*1.5	7*14	25	25-25.3	15	33/33
*MG32A-0822B	MG32A-0822G	M32*1.5	8*22	32	32-32.3	15	41/42
MG40A-5529B	MG40A-5529G	M40*1.5	5.5*29	40	40-40.3	20	41/42
