Maximum current: 26-22 A.W.G: 9A 22-16 A.W.G: 19A 16-14 A.W.G: 27A 12-10 A.W.G: 48A
Maximum pressure: 105 ℃ 600V insulating sheath material: Nylon
Max. cunrrent：
26-22 A.W.G :9A
22-16 A.W.G :19A
16-14 A.W.G :27A
12-10 A.W.G :48A
Maximum pressure: 105 ℃ 600V insulating sheath material: Nylon
| Item No. | DIMENSION(mm) | AWG | mm2 | Max. cunrrent |
INSULATION COLOR |
||
| L | DΦ | dΦ | |||||

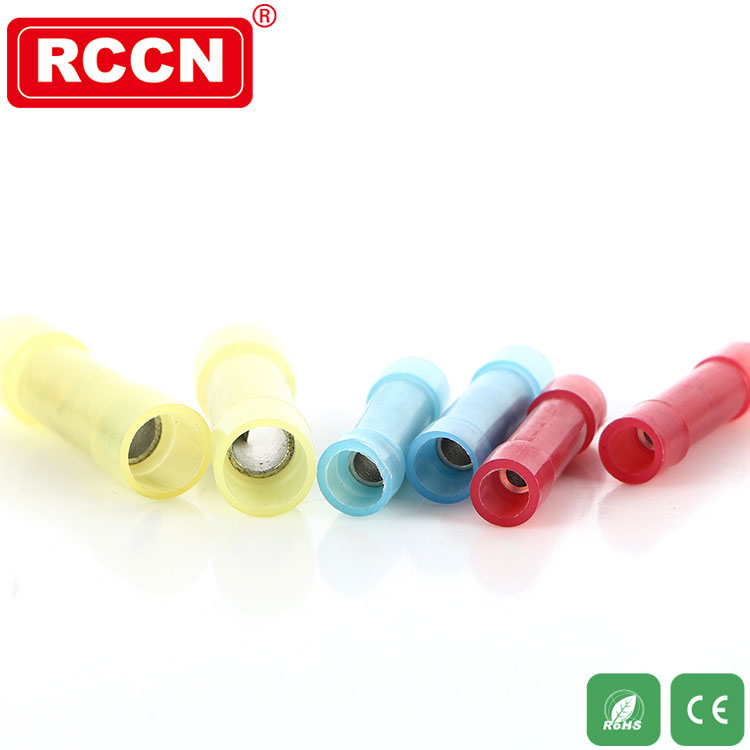

| BN-0.5 | 20.0 | 2.0 | 1.3 | 26-22 | 0.2-0.5 | 9A | Yellow |
| BN-1.25 | 27.3 | 3.2 | 1.7 | 22-16 | 0.5-1.5 | 19A | Red |
| BN-2.0 | 27.3 | 3.8 | 2.3 | 16-14 | 1.5-2.5 | 27A | Blue |
| BN-5.5 | 27.3 | 5.3 | 3.4 | 12-10 | 4-6 | 48A | Yellow |
