RCCN Tubing KVSBI

Sei Irrax Rubber Tubing

Material: made of high quality irradiation PE composite compound made.
Features: Suitable for high voltage protection.
Temperature: the initial shrink temperature of 70 ℃, the total shrinkage temperature of 125 ℃; applicable temperature -40 ℃ -125 ℃, can be used in acid-base conditions for a long time.

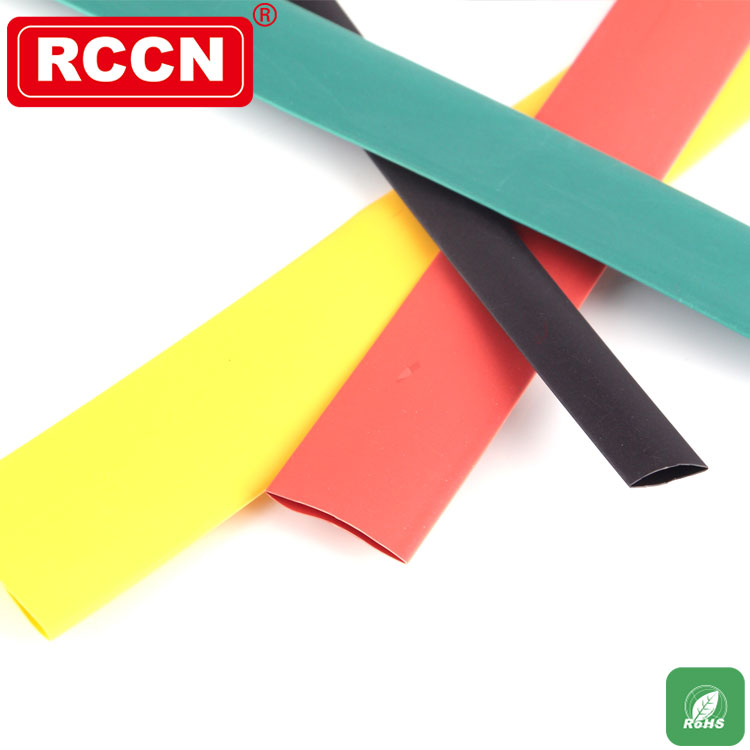

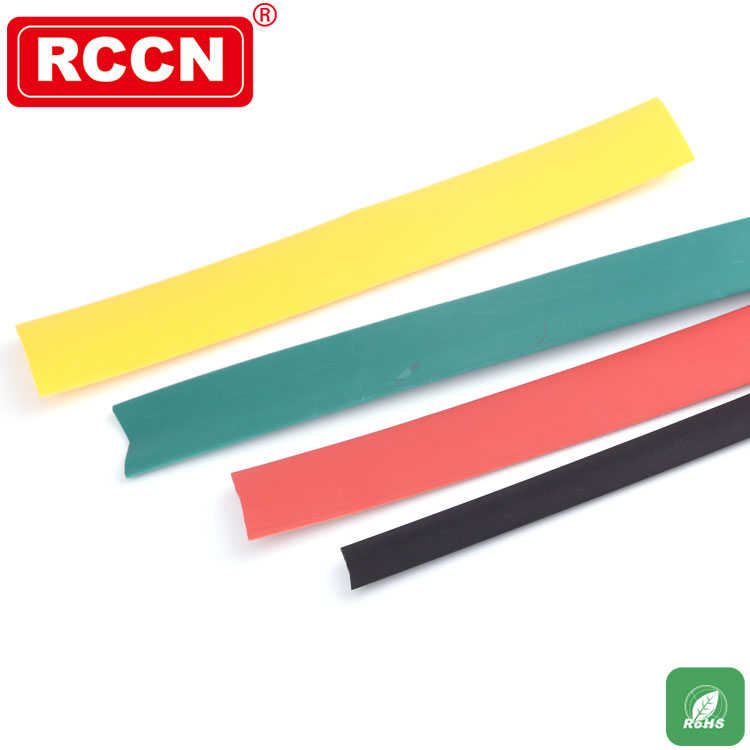

Color: red, yellow, green, other colors such as: black, blue, etc. can be customized.
Uses: for substation, high and low voltage switchgear and other busbar insulation protection, to prevent short circuit.
Delivery: 10 days -2 weeks.

Specification



model

Applicable busbar

(square row)

Before contraction(mm) After contraction(mm) package
diameter(D) diameter(D1) thickness(W) (M / plate)
1KVSBI-30/15 30 31.5 15.0  0.95  50
1KVSBI-35/18 35 36.5 18.0  1.00  50
1KVSBI-40/20 40 41.5 20.0  1.00  50
1KVSBI-45/23 45 46.5 23.0  1.00  25
1KVSBI-50/25 50 51 25.0  1.00  25
1KVSBI-60/30 60 60 30.0  1.30  25
1KVSBI-65/33* 65 65 33.0  1.30  25
1KVSBI-70/35 70 70 35.0  1.30  25
1KVSBI-75/38* 75 75 38.0  1.30  25
1KVSBI-80/40 80/100 80 40.0  1.46  25
1KVSBI-85/43* 80/100 85 43.0  1.46  25
1KVSBI-90/45 100 90 45.0  1.46  25
1KVSBI-100/50 100/120 100 50.0  1.46  25
1KVSBI-120/60 150 120 60.0  1.46  25
1KVSBI-150/75 180 150 75.0  1.46  25
1KVSBI-180/90 MAX 180 90.0  1.46  25
1KVSBI-210/105* MAX 210 105  1.46  25
1KVSBI-230/115* MAX 230 115  1.46  25
1KVSBI-250/125* MAX 250 125  1.46  25
1KVSBI-300/150* MAX 300 150 1.46  25
model

Applicable busbar

 (square / round)

Before contraction(mm) After contraction(mm) package
 diameter(D) diameter(D1) thickness (M / plate)
10KVSBI-15/8  15/12 15 8.0  2.10  25
10KVSBI-20/10  20/15  20 10.0  2.10  25
10KVSBI-25/13  25/18  25 12.5  2.10  25
10KVSBI-30/15  30/20  30 15.0  2.10  25
10KVSBI-40/20  40/30  40 20.0  2.30  25
10KVSBI-50/25  50/35  50 25.0  2.30  25
10KVSBI-60/30  60/45  60 30.0  2.30  25
10KVSBI-65/33*  65/45  65 33.0  2.30  25
10KVSBI-70/35  70/50  70 35.0  2.30  25
10KVSBI-75/38*  75/50  75 38.0  2.30  25
10KVSBI-80/40  80/55  80 40.0  2.30  25
10KVSBI-85/43*  80/65  85 43.0  2.30  25
10KVSBI-100/50  100/75  100 50.0  2.30  25
10KVSBI-120/60  120/85  120 60.0  2.30  25
10KVSBI-150/75  150/105  150 75.0  2.30  25
10KVSBI-180/90  180/120  180 90.0  2.30  25
10KVSBI-210/105*  210/140  210 105 2.30  20
10KVSBI-230/115*  230/150  230 115  2.30  20
10KVSBI-250/125*  250/180  250 125  2.30  20
10KVSBI-300/150*  300/210  300 150  2.30  15
model

Applicable busbar

(square / round)

Before contraction(mm) After contraction(mm) package
diameter(D) diameter(D1) thickness(W) (M / plate)
20KVSBI-15/8  15/12 15 8.0  2.50  25
20KVSBI-20/10  20/15  20 10.0  2.50  25
20KVSBI-25/13  25/18  25 13.0  2.50  25
20KVSBI-30/15  30/20  30 15.0  2.50  25
20KVSBI-40/20  40/30  40 20.0  2.80  25
20KVSBI-50/25  50/35  50 25.0  2.80  25
20KVSBI-60/30  60/45  60 30.0  2.80  25
20KVSBI-65/33*  65/45  65 33.0  2.80  25
20KVSBI-70/35  70/50  70 35.0  2.80  25
20KVSBI-75/38  75/50  75 38.0  2.80  25
20KVSBI-80/40  80/55  80 40.0  2.80  25
20KVSBI-85/43*  80/65  85 43.0  2.80  25
20KVSBI-100/50  100/75  100 50.0  2.80  25
20KVSBI-120/60  120/85  120 60.0  2.80  25
20KVSBI-150/75  150/105  150 75.0  2.80  25
20KVSBI-180/90  180/120  180 90.0  2.80  25
20KVSBI-210/105*  210/140  210 105  2.80  20
20KVSBI-230/115*  230/150  230 115  2.80  20
model

Applicable busbar

(square row)

Before contraction(mm) After contraction(mm) package
diameter(D) diameter(D1) thickness(W) (M / plate)
35KVSBI-15/8  15/12 15 8.0  4.00  15
35KVSBI-20/10  20/15  20 10.0  4.00  15
35KVSBI-30/15  30 30 15.0  4.00  15
35KVSBI-35/18  30/40  35 18.0  4.00  15
35KVSBI-40/20  40 40 20.0  4.00  15
35KVSBI-50/25  50 50 25.0  4.00  15
35KVSBI-60/30  60 60 30.0  4.00  15
35KVSBI-65/33* 60/70  65 33.0  4.00  15
35KVSBI-70/35  70 70 35.0  4.00  15
35KVSBI-75/38* 70/80  75 38.0  4.00  15
35KVSBI-80/40  80/100  80 40.0  4.00  15
35KVSBI-100/50  100/120 100 50.0  4.00  15
35KVSBI-120/60  150 120 60.0  4.00  15
35KVSBI-150/75  180 150 75.0  4.00  15
35KVSBI-180/90* MAX.  180 90.0  4.00  15
35KVSBI-210/105* MAX.  210 105  4.00  15
35KVSBI-230/115* MAX.  230 115  4.00  15
35KVSBI-250/125* MAX.  250 125 4.00  15
35KVSBI-300/150* MAX.  300 150  4.00  15
Note: with "*" do not do inventory, need to order a single.
