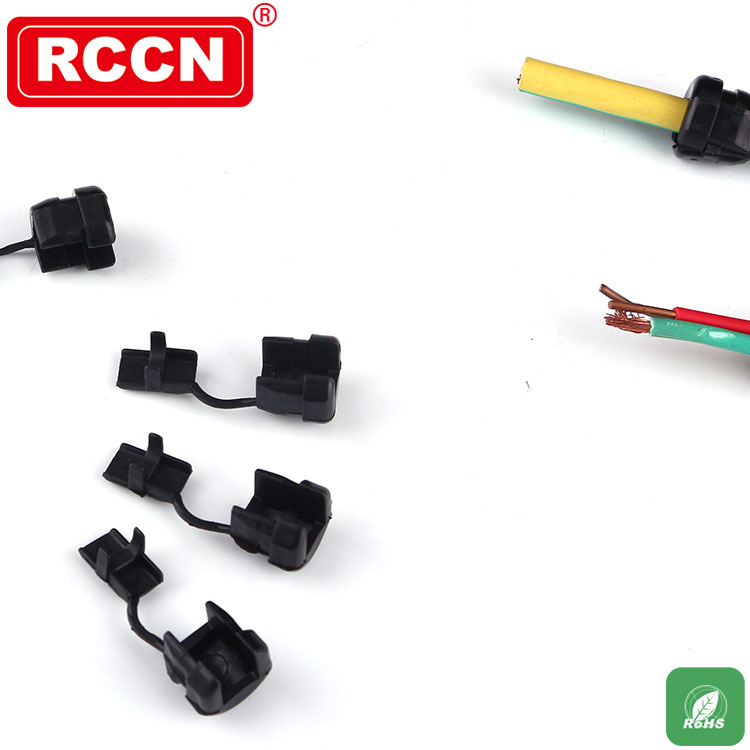

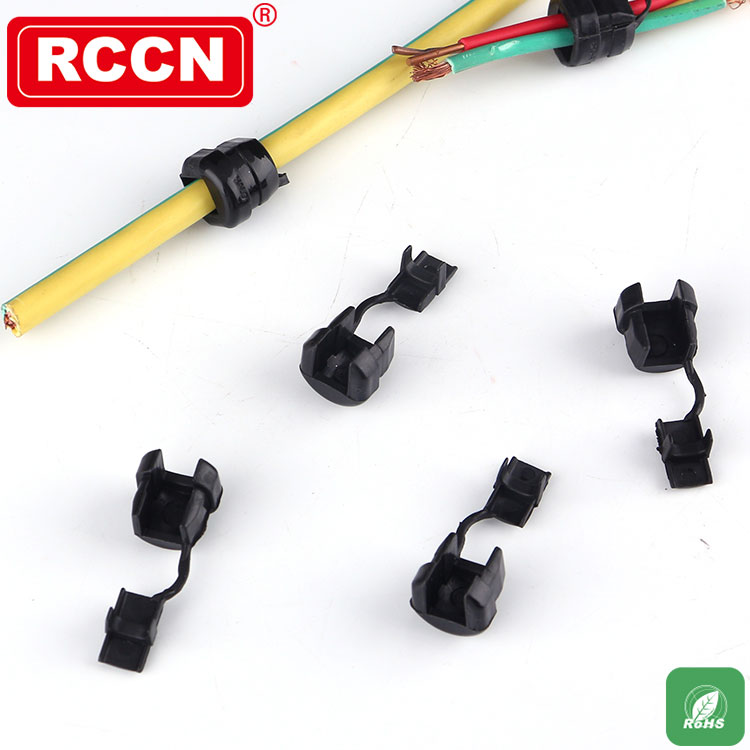

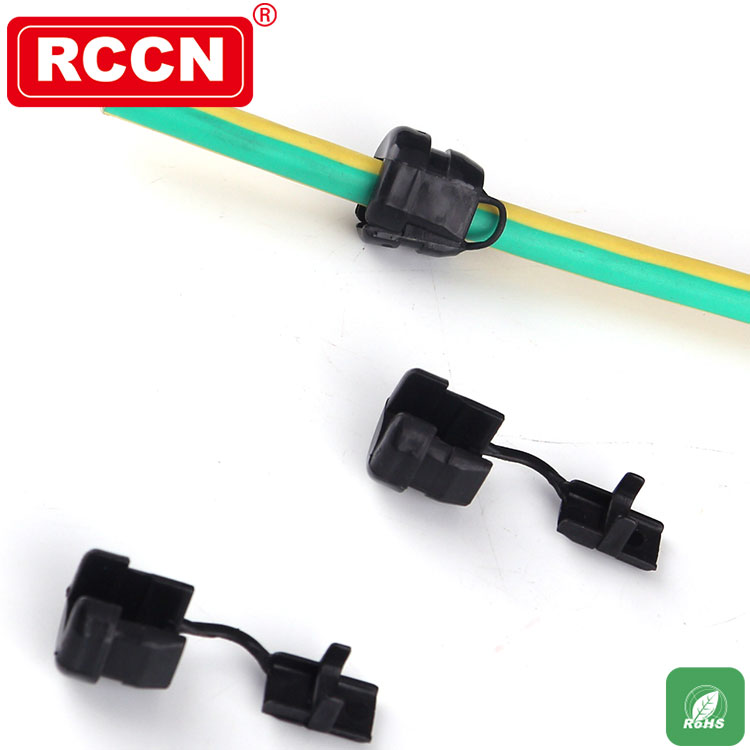

Strain Relief Bushings SR - RCCN Shanghai RiCheng

Item No.	shape	ULWires	Approx.wiresize	Mounting Hole		Part L. D.	Max. Chassis Thickness F.	Packing
Item No.	shape	ULWires	Approx.wiresize	A	B	Part L. D.	Max. Chassis Thickness F.	Packing
SR-F21	FLAT	SPT-1#18	2.3X4.5or2.8X5.3	9.5	8.7	10.3	0.5-1.6	Pcs/bag100
SR-F23		SPT-1#18	2.3X4.5or2.8X5.3	9.5	8.7	10.3	1.8-3.2
SR-F31		SPT-1#18	3.0X5.6	11.0	9.9	10.3	1.0-1.6
SR-F32		SPT-1#18	3.0X5.6	11.0	9.9	10.3	1.9-2.5
SR-F41		SPT-2#18	3.0X7.1or3.8X7.6	12.7	11.8	10.3	0.5-1.6
SR-F42		SPT-2#18	3.0X7.1or3.8X7.6	12.7	11.8	10.3	1.8-2.5
SR-F51		SPT-3#18	5X10.4	14.3	12.9	15.2	0.5-1.6
SR-F53		SPT-3#18	5X10.4	14.3	12.9	15.2	1.8-3.5
SR-F83		Wire 3C 2mm2	6X15.2	21.6	21.3	20.4	2.0-3.4
SR-5R1	ROUND	SVI,SVT3C#18	6.2ø ~7.4ø	12.8	11.5	11.0	0.5-1.6
SR-5R2		SVI,SVT3C#18	6.2ø ~7.4ø	13.0	11.5	11.0	1.8-2.5
SR-6W2		SVI3C#18	7.6ø	12.8	11.8	11.0	1.8-2.3
SR-6P1		SJC 3C # 18	7.4ø~8.2ø	15.9	14.0	14.8	0.5-1.6
SR-6P3		SJC 3C # 18	7.4ø~8.2ø	15.9	14.0	14.8	1.9-3.2
SR-6R1		SJ,SJT,3C # 16	8.2ø~9.2ø	15.9	14.0	14.8	0.5-1.6
SR-6R3		SJ,SJT,3C # 16	8.2ø~9.2ø	15.9	14.0	14.8	1.9-3.2
SR-7R1		SJT,3C # 14	9.2ø~10.5øor11ø	19.9	17.0	19.0	0.5-1.6
SR-7R3		SJT,3C # 14	9.2ø~10.5øor11ø	19.7	17.0	19.0	1.9-3.2
SR-8R3		SJT,3C # 12	12ø~15.2ø	21.6	21.3	20.6	1.9-3.2
SR-9R1		# 18 20-30pcs	11ø~15ø	15	19	17.5	0.5-1.6
SR-9R7		SJT,3C # 10	15.2ø~16.3ø	28.0/30.2	25.5	25.2	1.0-3.2
SR-9R7		SJT,3C # 10	17.5ø	28.0/30.2	25.5	25.2	1.0-3.2
