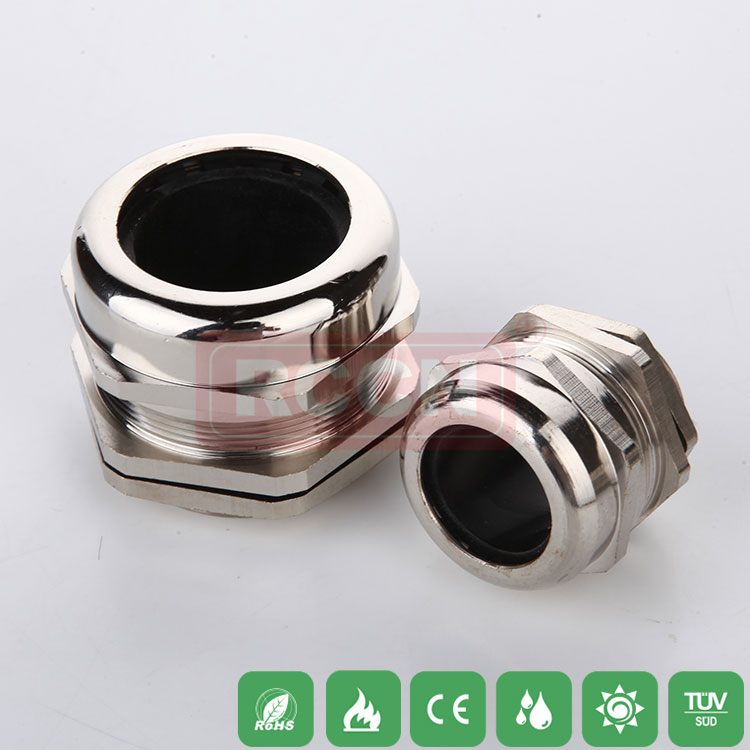

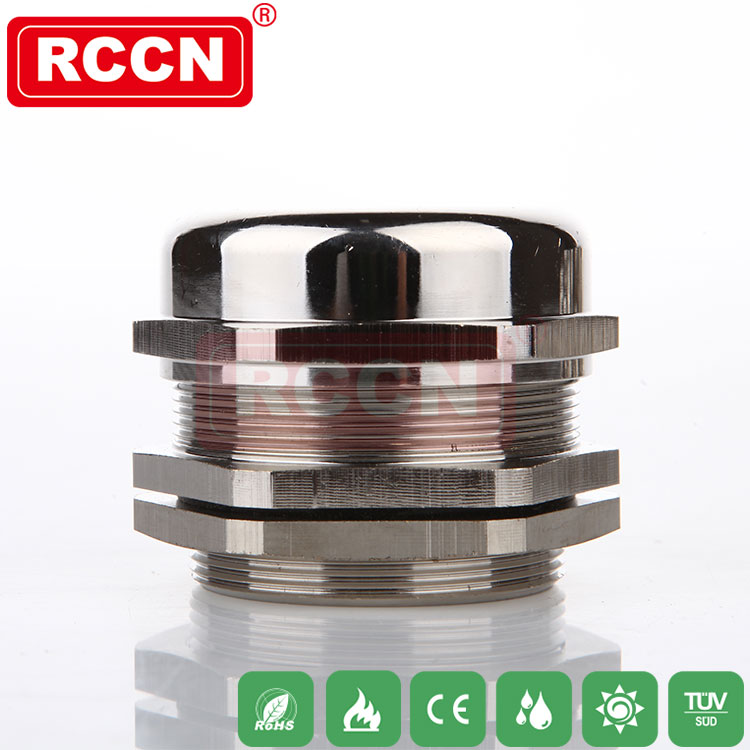

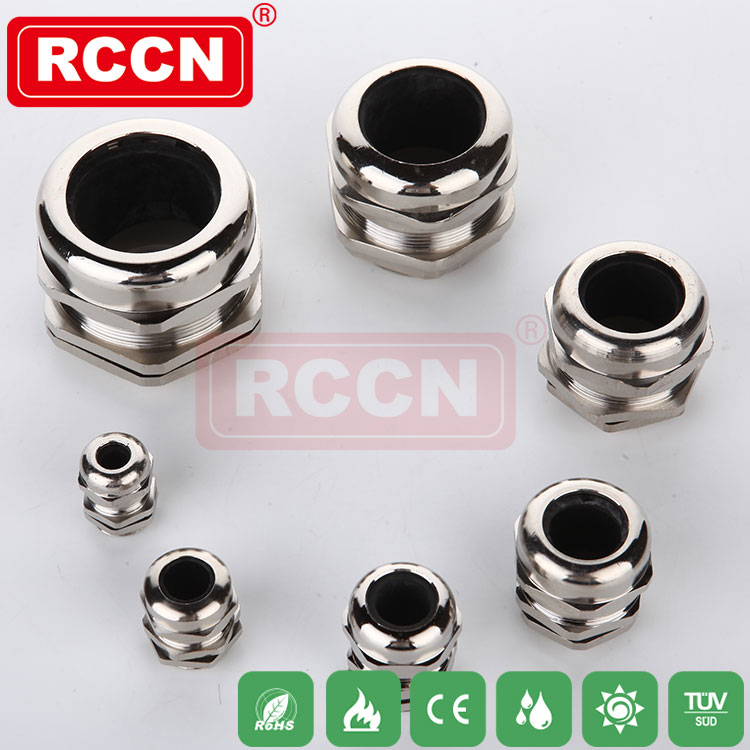

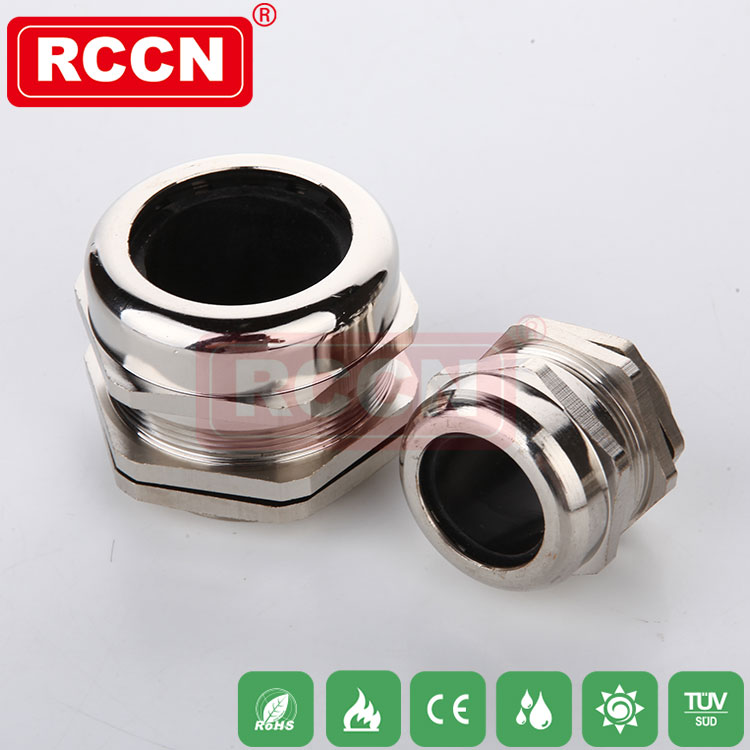

Brass Cable Gland MGA - RCCN Shanghai RiCheng

Thread length M	Germany thread PG	America thread NPT	English thread G	Cable Range	L1	L1	Joint Length L2+L3	Spanner SW A/F
MGA12×1.5-6	PG7A-6	G1/4A-6	NPT1/4A-6	3-6	6	10	19	16
MGA12×1.5-8	PG7A-8	G3/8A-8	NPT3/8A-8	4-8	7	10	19	18
MGA16×1.5-8	PG9A-8			4-8	7	10	20	18
MGA16×1.5-10	PG9A-10			6-10	7	10	20	20
MGA18×1.5-8	PG11A-8			4-8	8	12	22	18
MGA18×1.5-10	PG11A-10			6-10	8	12	22	20
MGA20×1.5-10	PG13.5A-10			6-10	8	12	22	22
MGA20×1.5-12	PG13.5A-12	G1/2A-12	NPT1/2A-12	8-12	8	12	22	22
MGA22×1.5-14	PG16A-14			10-14	9	15	23	24
MGA24×1.5-14	-			10-14	10	15	23	24
MGA25×1.5-14	PG21A-14			10-14	10	15	23	24
MGA25×1.5-18	-			13-18	10	15	23	30
MGA27×2.0-18	PG21A-18	G3/4A-18	NPT3/4A-18	13-18	11	15	28	30
MGA30×2.0-18	-			13-18	11	15	28	30
MGA32×1.5-18	-			13-18	11	15	32	30
MGA32×1.5-25	-			18-25	11	15	32	40
MGA33×2.0-25	-	G1A-25	NPT1A-25	18-25	11	15	32	40
MGA36×2.0-25	PG29A-25			18-25	11	15	32	40
MGA40×1.5-25	-			18-25	12	18	32	40
MGA40×1.5-32	-			25-32	12	18	32	42
MGA42×2.0-32	-	G1-1/4A-32	NPT1-1/4A-32	25-32	12	18	36	42
MGA48×2.0-32	PG36A-32	G1-1/2A-32	NPT1-1/2A-32	25-32	13	18	38	52
MGA50×1.5-32	-			25-32	13	18	38	60
MGA50×1.5-38	PG42A-38			32-38	13	18	38	60
