RCCN Tubing Clamp BGH

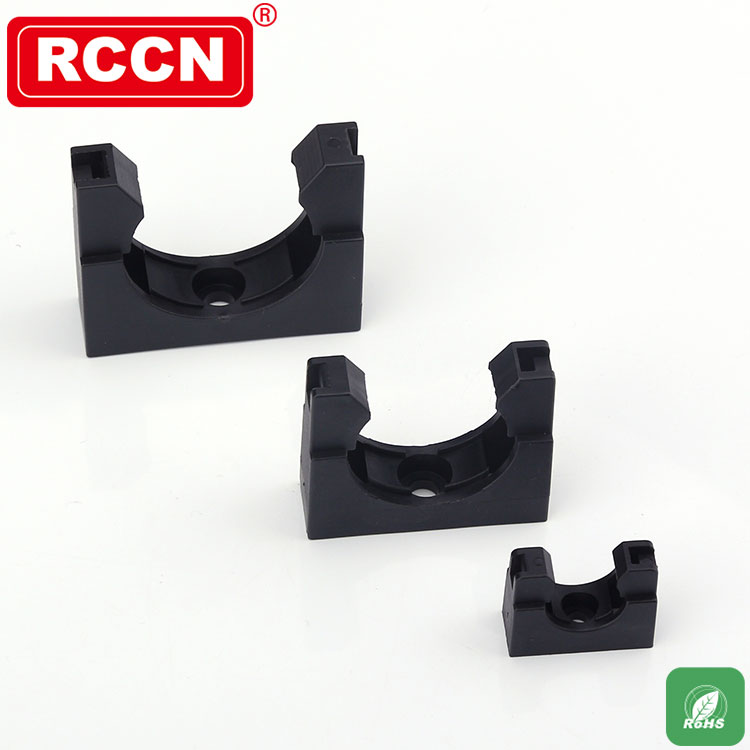

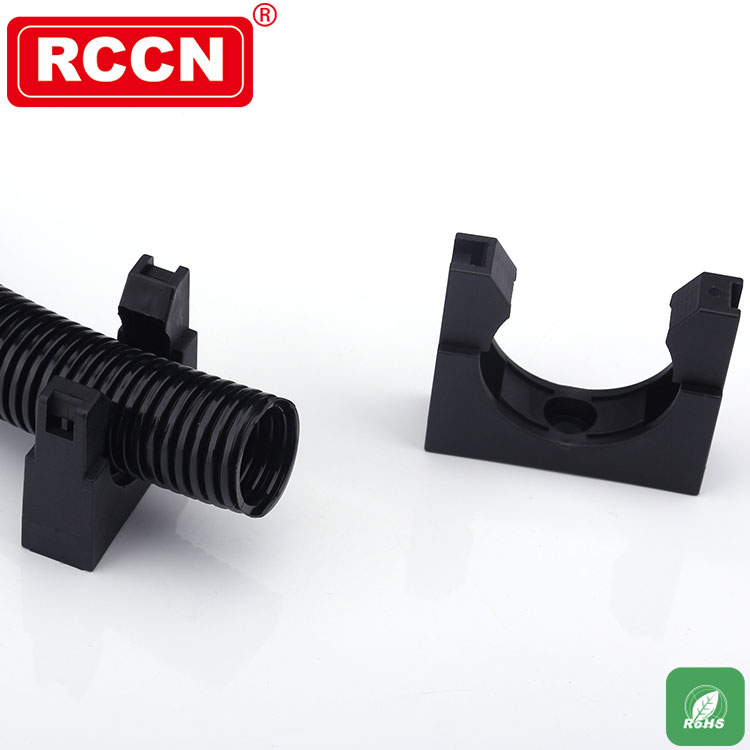

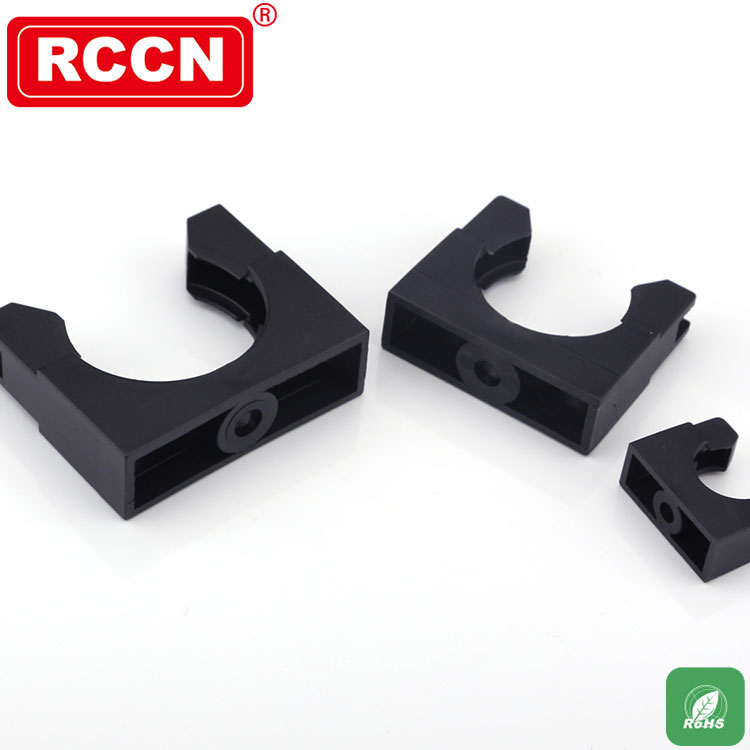

Tubing Clamp Without Cover

Material: Nylon 66/94V-2
Color: Black.gray
Work temperature:-40°C to 105°C
Features: Suitable to different conduits and cables

Item No.		Suit to RCCN conduit item no BG	Conduit or cable outer dia	Width B	Height H	Thickness T	Thickness M	Packing pcs
Black	Gray	Suit to RCCN conduit item no BG	Conduit or cable outer dia	Width B	Height H	Thickness T	Thickness M	Packing pcs
BGH-07B	BGH-07G	BG-07	10.0	30	23	12.5	M4	100
BGH-10B	BGH-10G	BG-10	13.0	30	23	12.5	M4	100
BGH-12B	BGH-12G	BG-12	15.8	30	23	12.5	M4	100
BGH-15B	BGH-15G	BG-15	18.5	35	30	15.0	M5	50
BGH-17B	BGH-17G	BG-17	21.2	35	30	15.0	M5	50
BGH-20B	BGH-20G	BG-20	25.0	42	38	16.0	M6	25
BGH-23B	BGH-23G	BG-23	28.5	42	38	16.0	M6	25
BGH-25B	BGH-25G	BG-25	31.5	51	43	16.0	M6	25
BGH-29B	BGH-29G	BG-29	34.5	51	43	16.0	M6	25
BGH-36B	BGH-36G	BG-36	42.5	61	51	16.0	M6	10
BGH-48B	BGH-48G	BG-48	54.5	74	64	19.0	M6	10
