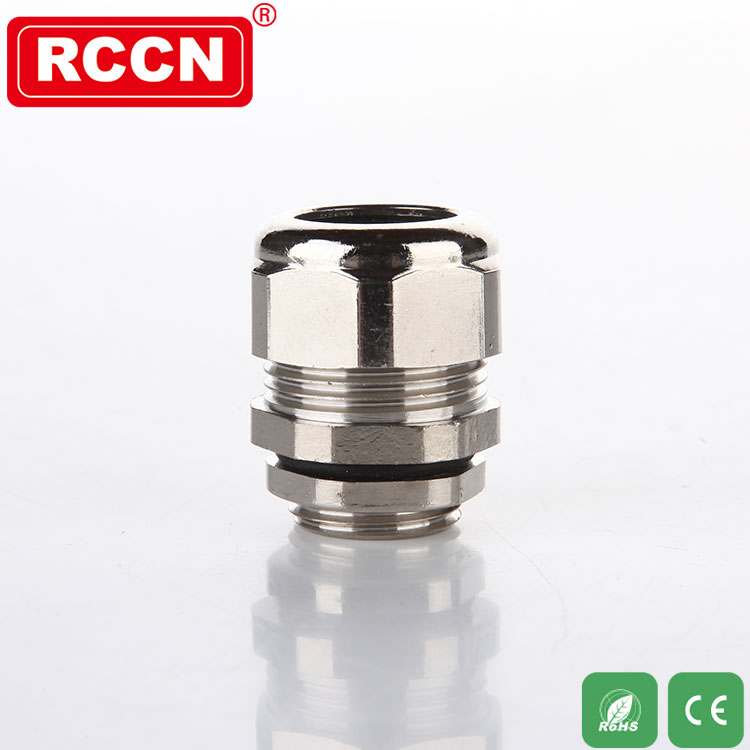

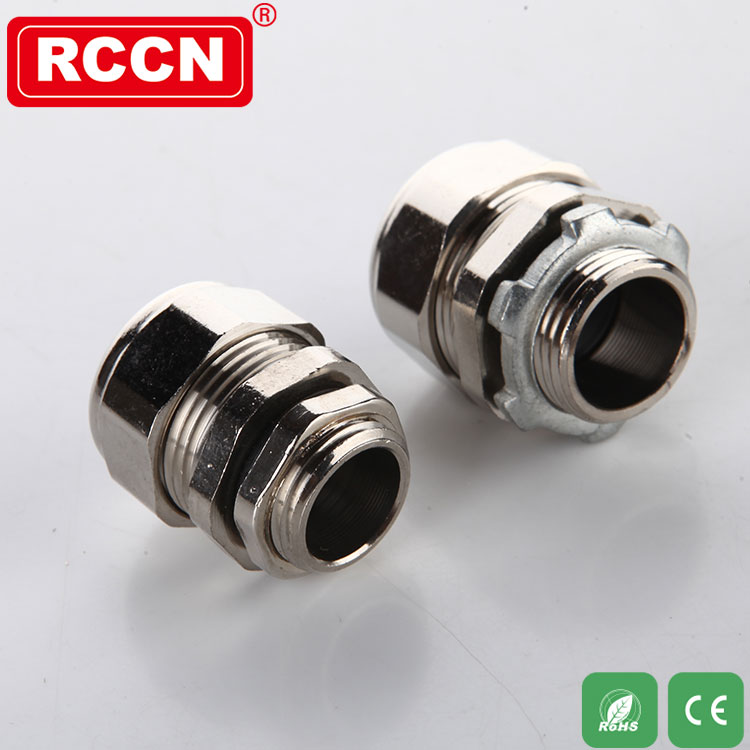

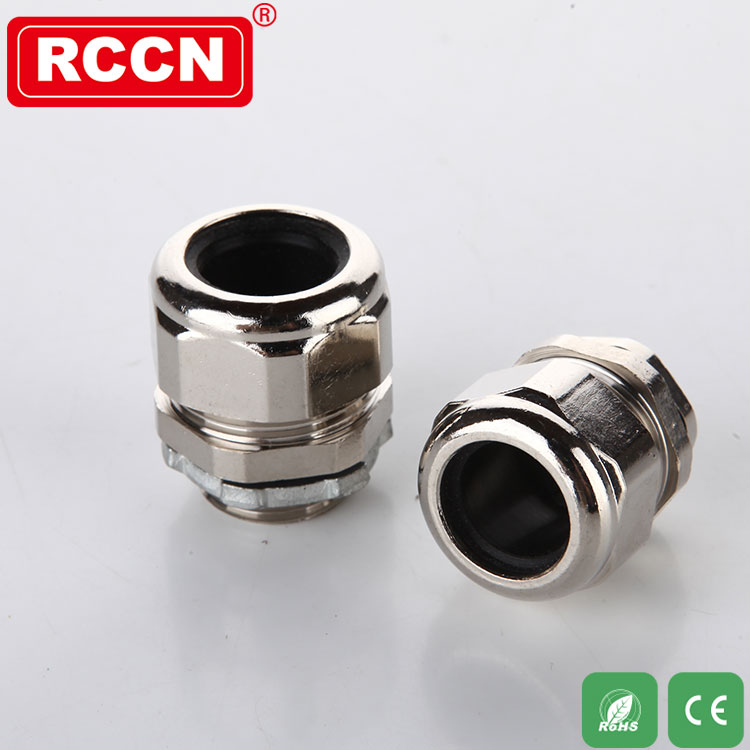

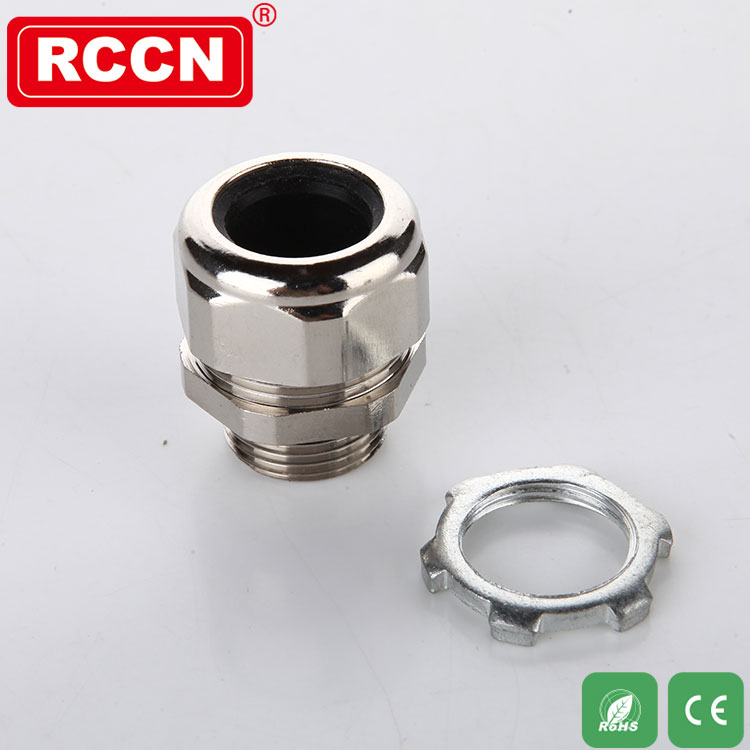

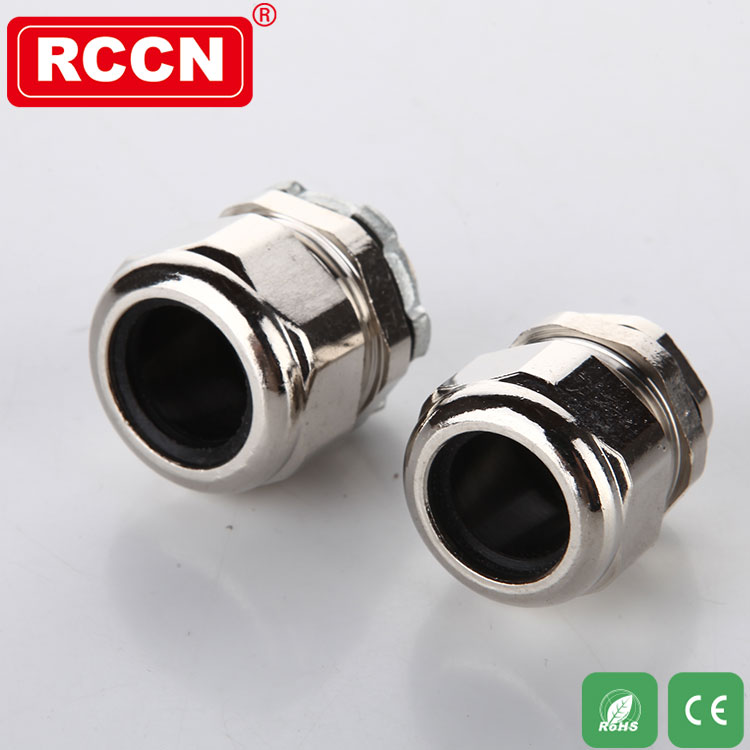

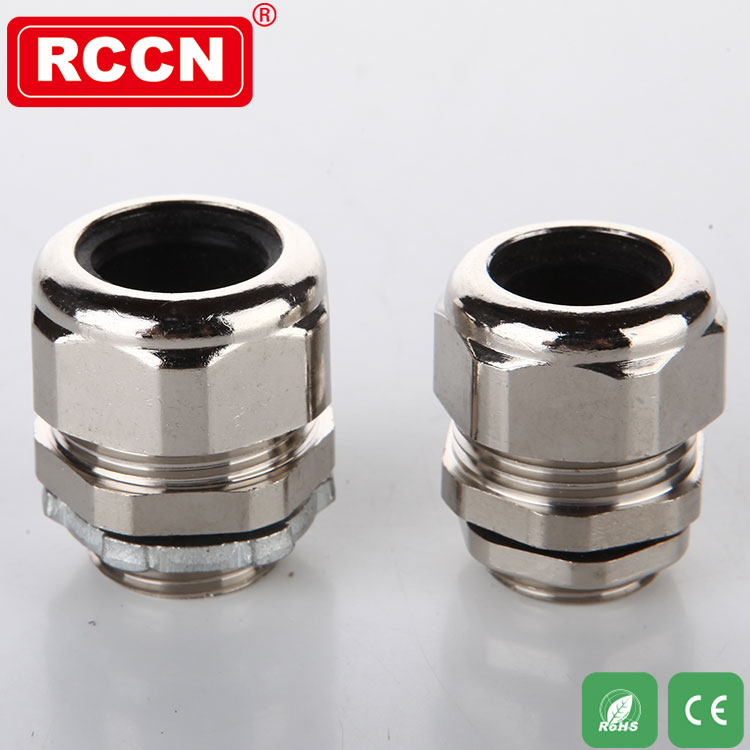

RCCN Connector BGF

Water Conduit Connector

Thread:Metric
Material:A.C.F are made of zinc metal plated with nickel.B.D are made of rubber
Certificates:CE,ROHS.
Protect rate:in bayonet scope,usd with O ring,screw down lock nut,can be up to IP68
Product characterstics:Special design of part D and E,used with part F, can save your
time,large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease
Conduit Connector BGF

Specification



 Item No . Thread Cable
Range
Φ 		Suit to RCCN
conduit item no
BG 		Thread
O.D.
D1 		Panel
Mounting
Hole 		Thread
Length
L1
Metric thread BGF-M
BGF-M12(BG07) M12*1.5 5 BG-07 12 12-12.3 6
BGF-M12(BG10) M12*1.5 5 BG-10 12 12-12.3 6
BGF-M16(BG07) M16*1.5 8 BG-07 16 16-16.3 7
BGF-M16(BG10) M16*1.5 8 BG-10 16 16-16.3 7
BGF-M18(BG10) M18*1.5 8 BG-10 18 18-18.3 8
BGF-M18(BG12) M18*1.5 10 BG-12 18 18-18.3 8
BGF-M18(BG15) M18*1.5 13 BG-15 18 18-18.3 8
BGF-M20(BG10) M20*1.5 8 BG-10 20 20-20.3 8
BGF-M20(BG12) M20*1.5 10 BG-12 20 20-20.3 8
BGF-M20(BG15) M20*1.5 13 BG-15 20 20-20.3 8
BGF-M20(BG17) M20*1.5 15 BG-17 20 20-20.3 8
BGF-M22(BG17) M22*1.5 15 BG-17 22 22-22.3 9
BGF-M24(BG17) M24*1.5 15 BG-17 24 24-24.3 10
BGF-M25(BG17) M25*1.5 15 BG-17 25 25-25.4 10
BGF-M25(BG23) M25*1.5 21 BG-23 25 25-25.4 10
BGF-M27(BG23) M27*1.5 21 BG-23 27 27-27.4 11
BGF-M30(BG23) M30*1.5 21 BG-23 30 30-30.4 11
BGF-M32(BG23) M32*1.5 21 BG-23 32 32-32.4 11
BGF-M32(BG29) M32*1.5 25 BG-29 32 32-32.4 11
BGF-M33(BG29) M33*1.5 25 BG-29 33 33-33.4 11
BGF-M36(BG29) M36*1.5 25 BG-29 36 36-36.4 11
BGF-M40(BG29) M40*1.5 25 BG-29 40 40-40.4 12
BGF-M40(BG36) M40*1.5 33 BG-36 40 40-40.4 12
BGF-M48(BG36) M48*2.0 33 BG-36 48 48-48.4 12
BGF-M50(BG36) M50*1.5 33 BG-36 50 50-50.4 13
BGF-M50(BG48) M50*1.5 45 BG-48 50 50-50.4 13
BGF-M56(BG48) M56*2.0 45 BG-48 56 56-56.4 13
BGF-M63(BG48) M63*1.5 45 BG-48 63 63-63.4 14

Item No . Thread Cable
Range   		Suit to RCCN
conduit item no
BG 		Thread
O.D.
D1 		Panle
Mounting
Hole 		Thread
Length
L1
Germany thread BGF-P
BGF-PG7(BG07) PG-7 3-6 BG-07 12.5 12.5-12.8 6
BGF-PG9(BG07) PG-9 4-8 BG-07 15.2 15.2-15.8 7
BGF-PG9(BG10) PG-9 4-8 BG-10 15.2 15.2-15.8 7
BGF-PG11(BG10) PG-11 6-10 BG-10 18.6 18.6-18.9 8
BGF-PG11(BG12) PG-11 6-10 BG-12 18.6 18.6-18.9 8
BGF-PG13.5(BG12) PG-13.5 8-12 BG-12 20.4 20.4-20.7 8
BGF-PG13.5(BG15) PG-13.5 8-12 BG-15 20.4 20.4-20.7 8
BGF-PG13.5(BG17) PG-13.5 8-12 BG-17 20.4 20.4-20.7 8
BGF-PG16(BG17) PG-16 10-14 BG-17 22.5 22.5-22.8 9
BGF-PG21(BG23) PG-21 13-18 BG-23 28.3 28.3-28.7 11
BGF-PG29(BG29) PG-29 18-25 BG-29 37.0 37.0-37.4 11
BGF-PG36(BG36) PG-36 26-32 BG-36 47.0 47.0-47.4 13
BGF-PG48(BG48) PG-48 37-44 BG-48 59.3 59.3-59.7 14
Tube thread BGF-G
BGF-G1/4(BG07) G1/4'' 3-6 BG-07 13.2 13.2-13.4 6
BGF-G3/8(BG10) G3/8'' 4-8 BG-10 16.5 16.5-17.1 7
BGF-G1/2(BG12) G1/2'' 8-12 BG-12 21.3 21.0-21.3 8
BGF-G1/2(BG15) G1/2'' 8-12 BG-15 21.3 21.0-21.3 8
BGF-G1/2(BG17) G1/2'' 8-12 BG-17 21.3 21.0-21.3 8
BGF-G3/4(BG17) G3/4'' 13-18 BG-17 26.6 26.5-26.6 11
BGF-G1(BG23) G1'' 15-22 BG-23 33.4 33.2-33.4 11
BGF-G1-1/4(BG29) G1 1/4'' 22-28 BG-29 42.1 41.9-42.1 12
BGF-G1-1/2(BG36) G1 1/2'' 26-32 BG-36 47.8 47.8-48.0 13
BGF-G2(BG48) G2'' 37-44 BG-48 59.6 59.6-60.1 14
America thread BGF-N
BGF-NPT3/8（BG10） NPT3/8'' 4-8 BG-10 16.5 16.5-17.1 7
BGF-NPT1/2（BG12） NPT1/2'' 8-12 BG-12 21.3 21.0-21.3 8
BGF-NPT1/2（BG15） NPT1/2'' 8-12 BG-15 21.3 21.0-21.3 8
BGF-NPT1/2（BG17） NPT1/2'' 8-12 BG-17 21.3 21.0-21.3 8
BGF-NPT3/4（BG17） NPT3/4'' 13-18 BG-17 26.6 26.5-26.6 11
BGF-NPT3/4（BG23） NPT3/4'' 13-18 BG-23 26.6 26.5-26.6 11
BGF-NPT1（BG29） NPT1'' 15-22 BG-29 33.4 33.2-33.4 11




Item No . Thread Cable
Range
Φ 		Suit to RCCN
conduit item no
BG 		Suit to RCCN
conduit item no
BG 		Thread
O.D.
D1 		Panle
Mounting
Hole 		Thread
Length
L1
Metric thread BGF-M
BGF1-M12(BG07) M12*1.5 5 BG-07 10.0 12 12-12.3 6
BGF1-M12(BG10) M12*1.5 5 BG-10 13.0 12 12-12.3 6
BGF1-M16(BG07) M16*1.5 8 BG-07 10.0 16 16-16.3 7
BGF1-M16(BG10) M16*1.5 8 BG-10 13.0 16 16-16.3 7
BGF1-M18(BG10) M18*1.5 8 BG-10 13.0 18 18-18.3 8
BGF1-M18(BG12) M18*1.5 10 BG-12 15.8 18 18-18.3 8
BGF1-M18(BG15) M18*1.5 13 BG-15 18.5 18 18-18.3 8
BGF1-M20(BG10) M20*1.5 8 BG-10 13.0 20 20-20.3 8
BGF1-M20(BG12) M20*1.5 10 BG-12 15.8 20 20-20.3 8
BGF1-M20(BG15) M20*1.5 13 BG-15 18.5 20 20-20.3 8
BGF1-M20(BG17) M20*1.5 15 BG-17 21.2 20 20-20.3 8
BGF1-M22(BG17) M22*1.5 15 BG-17 21.2 22 22-22.3 9
BGF1-M24(BG17) M24*1.5 15 BG-17 21.2 24 24-24.3 10
BGF1-M25(BG17) M25*1.5 15 BG-17 21.2 25 25-25.4 10
BGF1-M25(BG23) M25*1.5 21 BG-23 28.5 25 25-25.4 10
BGF1-M27(BG23) M27*1.5 21 BG-23 28.5 27 27-27.4 11
BGF1-M30(BG23) M30*1.5 21 BG-23 28.5 30 30-30.4 11
BGF1-M32(BG23) M32*1.5 21 BG-23 28.5 32 32-32.4 11
BGF1-M32(BG29) M32*1.5 25 BG-29 34.5 32 32-32.4 11
BGF1-M33(BG29) M33*1.5 25 BG-29 34.5 33 33-33.4 11
BGF1-M36(BG29) M36*1.5 25 BG-29 34.5 36 36-36.4 11
BGF1-M40(BG29) M40*1.5 25 BG-29 34.5 40 40-40.4 12
BGF1-M40(BG36) M40*1.5 33 BG-36 42.5 40 40-40.4 12
BGF1-M48(BG36) M48*2.0 33 BG-36 42.5 48 48-48.4 12
BGF1-M50(BG36) M50*1.5 33 BG-36 42.5 50 50-50.4 13
BGF1-M50(BG38) M50*1.5 45 BG-38 54.5 50 50-50.4 13
BGF1-M56(BG38) M56*2.0 45 BG-38 42.5 56 56-56.4 13
BGF1-M63(BG38) M63*1.5 45 BG-38 54.5 63 63-63.4 14


Item No . Thread Cable
Range   		Suit to RCCN
 conduit item no
BG 		Suit to RCCN
 conduit item no
BG 		Thread
O.D.
D1 		Panle
Mounting
Hole 		Thread
Length
L1
Germany thread BGF-P
BGF1-PG7(BG07) PG-7 3-6 BG-07 10.0 12.5 12.5-12.8 6
BGF1-PG9(BG07) PG-9 4-8 BG-07 10.0 15.2 15.2-15.8 7
BGF1-PG9(BG10) PG-9 4-8 BG-10 13.0 15.2 15.2-15.8 7
BGF1-PG11(BG10) PG-11 6-10 BG-10 13.0 18.6 18.6-18.9 8
BGF1-PG11(BG12) PG-11 6-10 BG-12 15.8 18.6 18.6-18.9 8
BGF1-PG13.5(BG12) PG-13.5 8-12 BG-12 15.8 20.4 20.4-20.7 8
BGF1-PG13.5(BG15) PG-13.5 8-12 BG-15 18.5 20.4 20.4-20.7 8
BGF1-PG13.5(BG17) PG-13.5 8-12 BG-17 21.2 20.4 20.4-20.7 8
BGF1-PG16(BG17) PG-16 10-14 BG-17 21.2 22.5 22.5-22.8 9
BGF1-PG21(BG23) PG-21 13-18 BG-23 28.5 28.3 28.3-28.7 11
BGF1-PG29(BG29) PG-29 18-25 BG-29 34.5 37.0 37.0-37.4 11
BGF1-PG36(BG36) PG-36 26-32 BG-36 42.5 47.0 47.0-47.4 13
BGF1-PG48(BG48) PG-48 37-44 BG-48 54.5 59.3 59.3-59.7 14
Tube thread BGF-G
BGF1-G1/4(BG07) G1/4'' 3-6 BG-07 10.0 13.2 13.2-13.4 6
BGF1-G3/8(BG10) G3/8'' 4-8 BG-10 13.0 16.5 16.5-17.1 7
BGF1-G1/2(BG12) G1/2'' 8-12 BG-12 15.8 21.3 21.0-21.3 8
BGF1-G1/2(BG15) G1/2'' 8-12 BG-15 18.5 21.3 21.0-21.3 8
BGF1-G1/2(BG17) G1/2'' 8-12 BG-17 21.2 21.3 21.0-21.3 8
BGF1-G3/4(BG17) G3/4'' 13-18 BG-17 21.2 26.6 26.5-26.6 11
BGF1-G1(BG23) G1'' 15-22 BG-23 28.5 33.4 33.2-33.4 11
BGF1-G1-1/4(BG29) G1 1/4'' 22-28 BG-29 34.5 42.1 41.9-42.1 12
BGF1-G1-1/2(BG36) G1 1/2'' 26-32 BG-36 42.5 47.8 47.8-48.0 13
BGF1-G2(BG48) G2'' 37-44 BG-48 54.5 59.6 59.6-60.1 14
America thread BGF-N
BGF1-NPT3/8（BG10） NPT3/8'' 4-8 BG-10 10.0 16.5 16.5-17.1 7
BGF1-NPT1/2（BG12） NPT1/2'' 8-12 BG-12 15.8 21.3 21.0-21.3 8
BGF1-NPT1/2（BG15） NPT1/2'' 8-12 BG-15 18.5 21.3 21.0-21.3 8
BGF1-NPT1/2（BG17） NPT1/2'' 8-12 BG-17 21.2 21.3 21.0-21.3 8
BGF1-NPT3/4（BG17） NPT3/4'' 13-18 BG-17 21.2 26.6 26.5-26.6 11
BGF1-NPT3/4（BG23） NPT3/4'' 13-18 BG-23 28.5 26.6 26.5-26.6 11
BGF1-NPT1（BG29） NPT1'' 15-22 BG-29 34.5 33.4 33.2-33.4 11
