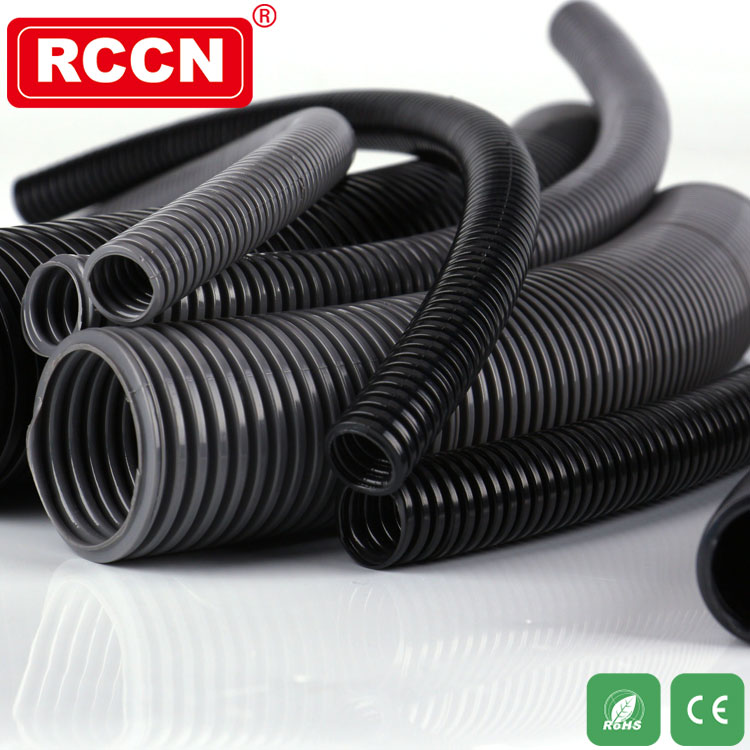

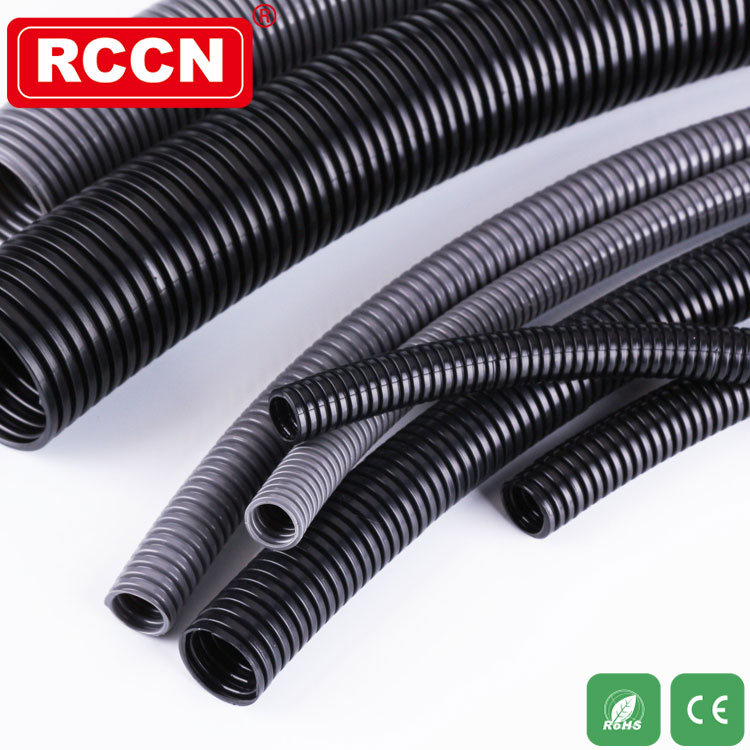

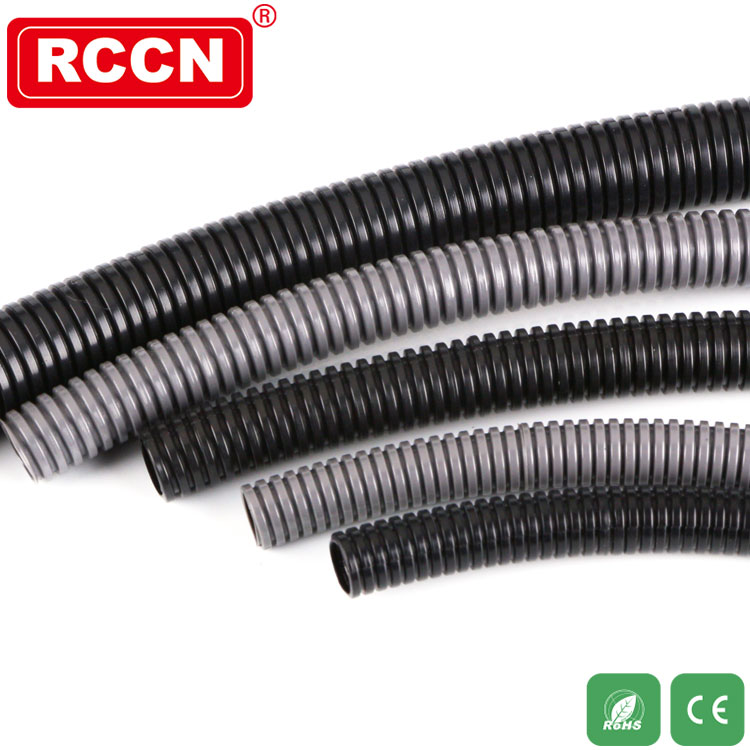

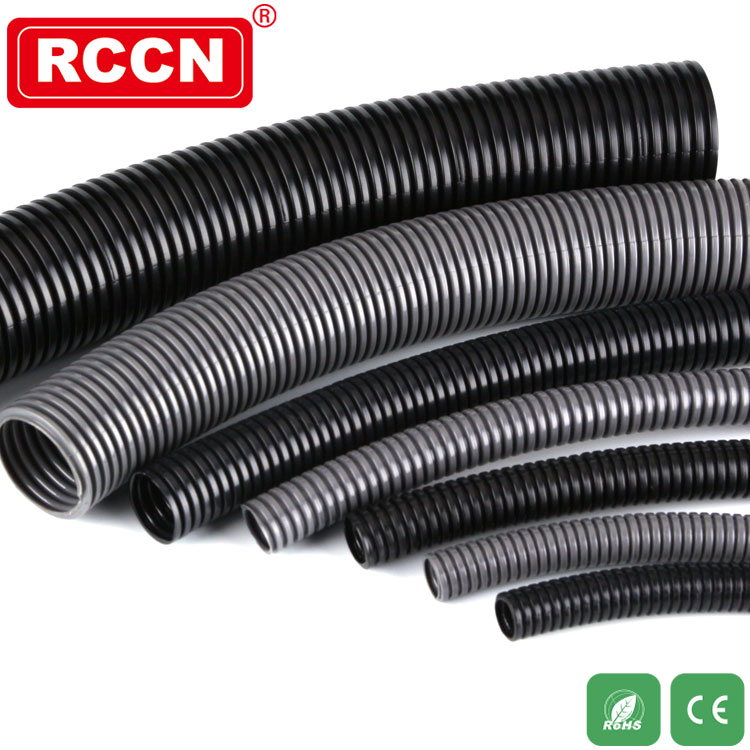

RCCN Nylon hose PA

Polyethylene Corrugated Tubing

Material:PA (Polyamide)
Work Temperature:-40℃ to125℃,150℃ in short time
Color:black
Certificates: CE,ROHS,REACH.
Characheristics:good luster of exterior,stronger machinism loading, perfect flexible
Functions:insulated,protect cables and wires
Loading ability:uneasy to change shape,reshape speedly without hurt body
Where to use:Equipment,machines,electricity sets,and so on.
How to use:insert cables or wires to RCCN flexible conduit
Remarks: special packing length come with MOQ work temperature
tested according to RCCN factory test machines

Specification

Item No .		Sizes	I.D. A	O.D. B	Packing M
Black Ral9005	Gray Ral7037	Sizes	I.D. A	O.D. B	Packing M
BG-07NBV0	BG-07NGV0	1/4''	6.5	10.0	100M
BG-10NBV0	BG-10NGV0	5/16''	10.0	13.0	100M
BG-12NBV0	BG-12NGV0	-	12.0	15.8	100M
BG-15NBV0	BG-15NGV0	3/8''	14.3	18.5	100M
BG-17NBV0	BG-17NGV0	1/2''	17.0	21.2	100M
BG-23NBV0	BG-23NGV0	3/4''	23.0	28.5	50M
BG-29NBV0	BG-29NGV0	1''	29.0	34.5	50M
BG-36NBV0	BG-36NGV0	1 1/4''	36.0	42.5	50M
BG-48NBV0	BG-48NGV0	2''	48.0	54.5	25M
BG-11NBV0	BG-11NGV0	-	11.0	14.0	100M
BG-20NBV0	BG-20NGV0	-	20.0	25.0	50M
BG-25NBV0	BG-25NGV0	-	25.0	32.0	50M
