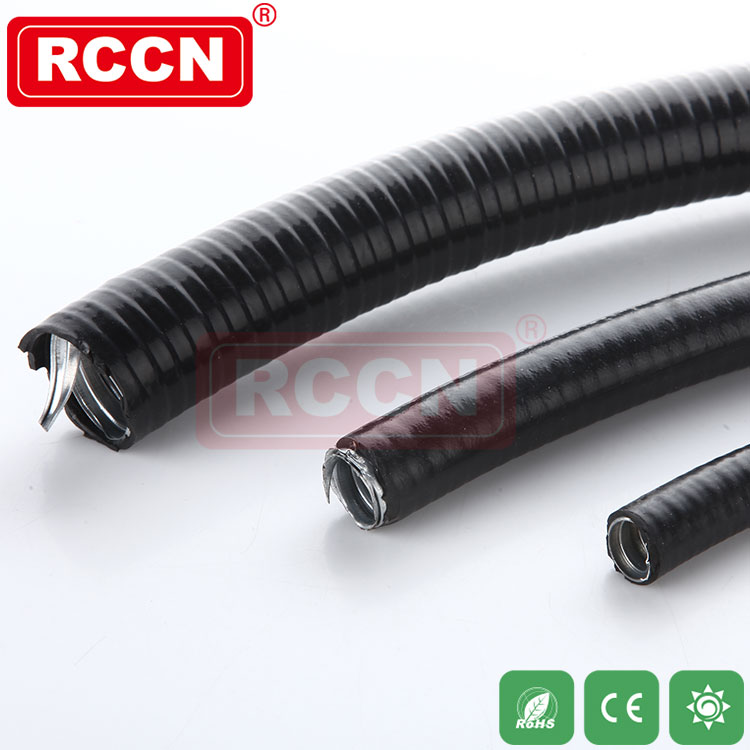

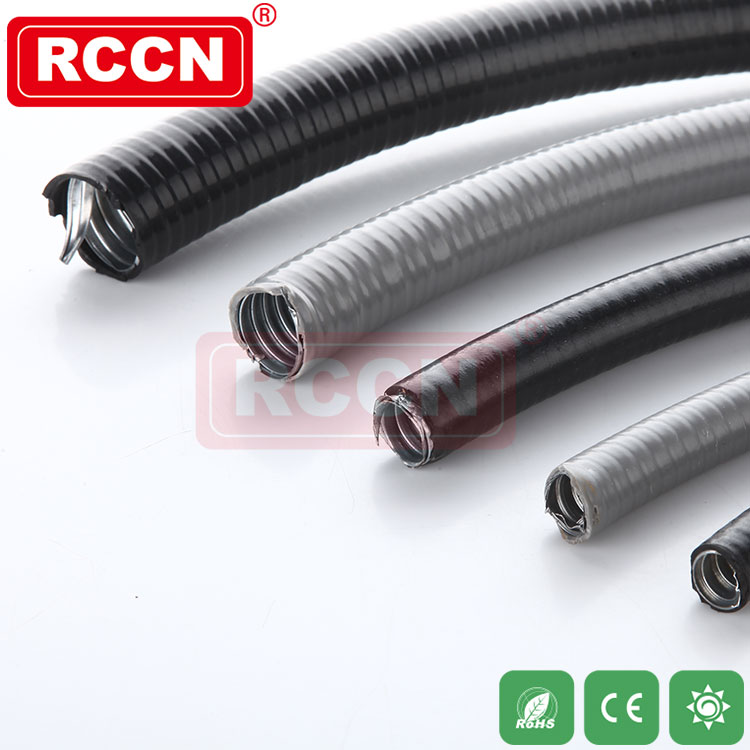

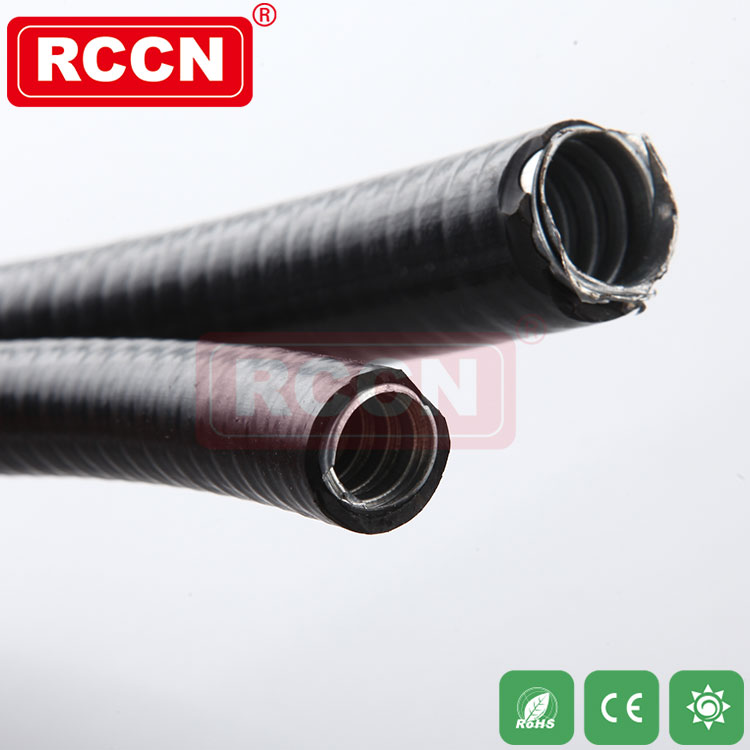

RCCN Metal Hose MCLS

Liquid-Tight Metal Hose

Material:(inner):stainess steel tape
(outer):PVC(black,UV resistant)
Certificates:CE, RoHS
Fireproof class:UL94V-2,low smoking,poison free
Color:black, gray
Work T.:-30℃ to +85℃,100℃ in a short time
Products Characteristics:1.good waterproof,insulated,retension
2.PVC wrapped，PVC is UV and inflammation resistant
3.uneasy to break and construction changing, for its special design
4.smoonth inside, make the wire and cable install easily
Use domain:railway,communicate project,air-dondition,machines.roboticized
equipments,power plant ships and so on
Use way:insert the cables into the conduit, then fix the correct connectors.
Delivery time:1-2 weeks,come with MOQ
Rohs approved part no. like:MCLS-06B/ROHS

Liquid-Tight Metal Hose MCLS

Specification

Item No.		Trade Sizes		I.D. d	O.D. D	Bending Radius mm±10%	Suitable metal connector NBG	Packing M
Black	Gray	Metric ø	British	I.D. d	O.D. D	Bending Radius mm±10%	Suitable metal connector NBG	Packing M
MCLS2-03B	MCLS2-03G	10	1/4''	10.0±0.3	15.0±0.5	50	NBG-03	50M
MCLS2-04B	MCLS2-04G	13	3/8"	12.7±0.3	17.5±0.5	60	NBG-04	50M
MCLS2-05B	MCLS2-05G	16	1/2"	16.0±0.3	20.8±0.5	75	NBG-05	50M
MCLS2-06B	MCLS2-06G	20	3/4"	20.2±0.3	25.5±0.5	100	NBG-06	30M
MCLS2-08B	MCLS2-08G	25	1"	26.2±0.3	32.4±0.5	100	NBG-08	30M
MCLS2-10B	MCLS2-10G	32	1 1/4"	32.5±0.3	39.0±0.5	135	NBG-10	20M
MCLS2-12B	MCLS2-12G	38	1 1/2	40.1±0.3	46.2±0.5	160	NBG-12	20M
MCLS2-16B	MCLS2-16G	51	2"	51.3±0.3	59.5±0.5	190	NBG-16	15M
