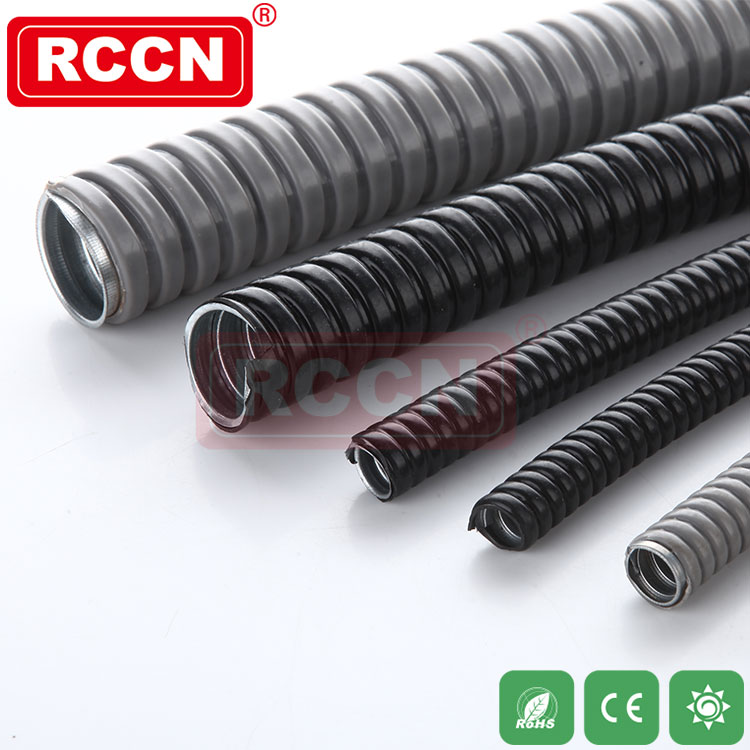

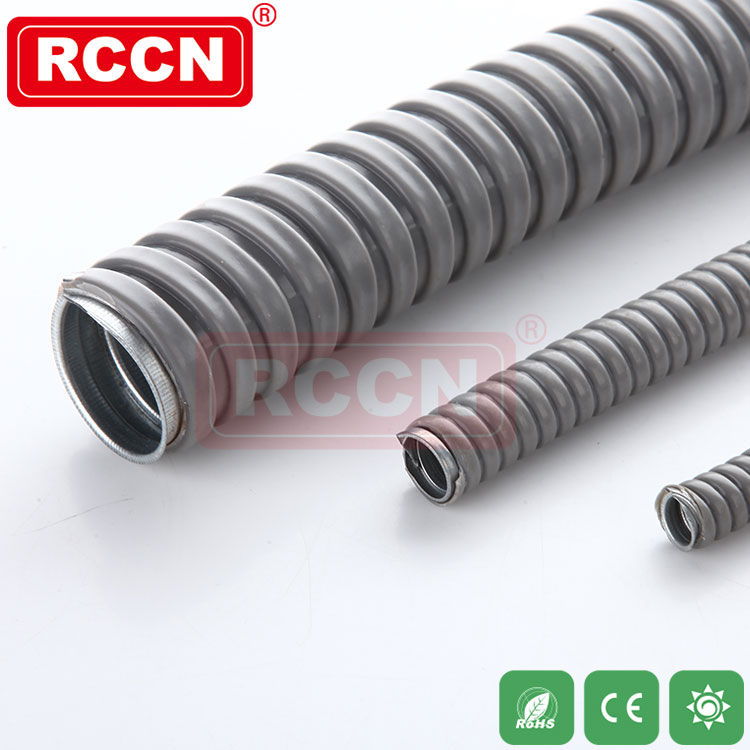

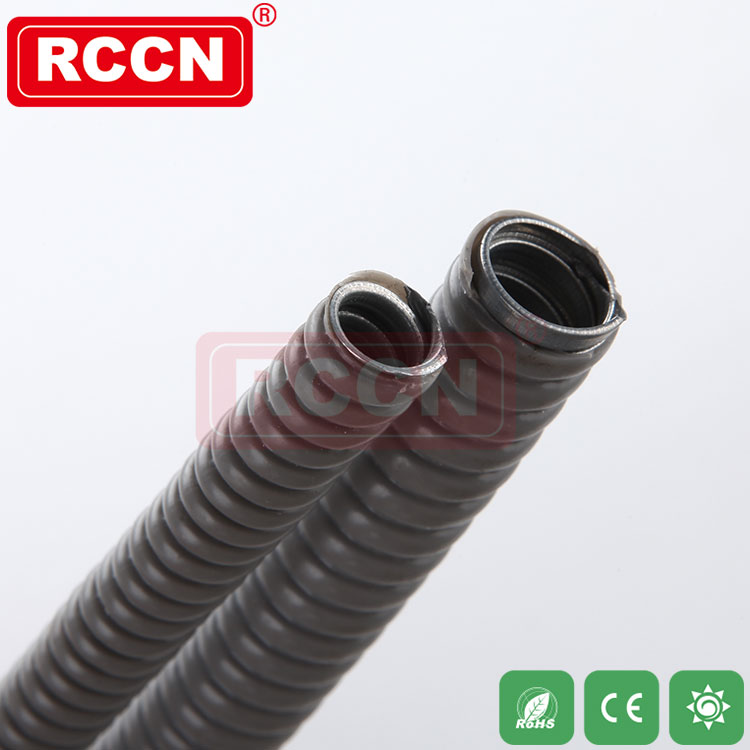

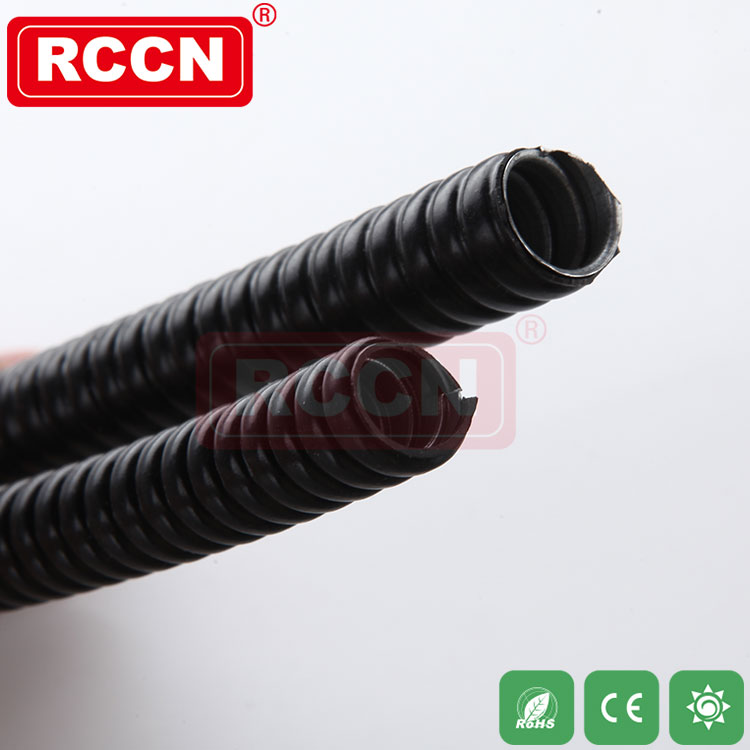

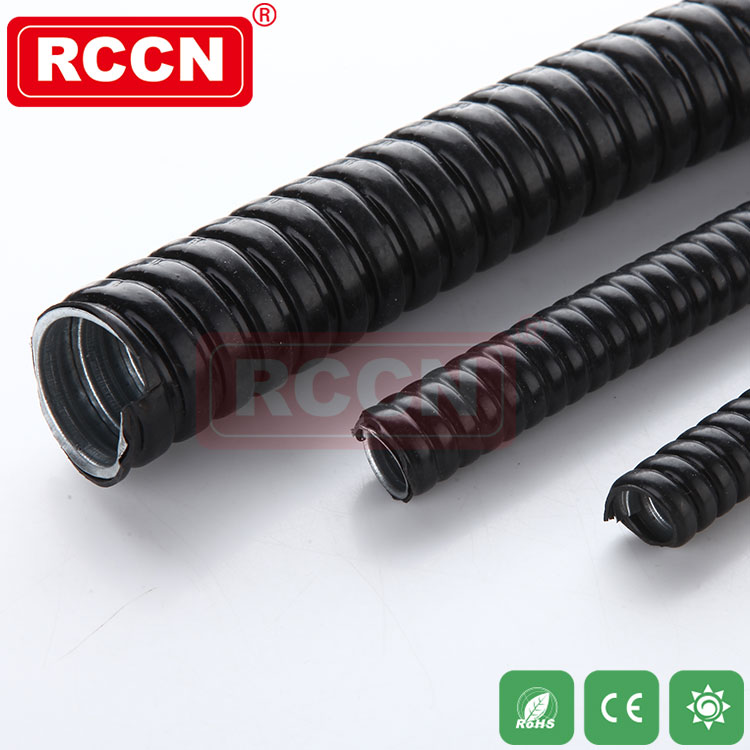

Metal Hose

Material:(inner):stainess steel tape
            (outer):PVC(black,UV resistant)
Certificates:CE, RoHS
Fireproof class:UL94V-2,low smoking,poison free
Color:black, gray
Work T.:-30℃ to +85℃,100℃ in a short time
Products Characteristics:1.good waterproof,insulated,retension
                                   2.PVC wrapped，PVC is UV and inflammation resistant
                                   3.uneasy to break and construction changing, for its special
                                      design
                                   4.smoonth inside, make the wire and cable install easily
Use domain:railway,communicate project,air-dondition,machines.roboticized
equipments,power plant ships and so on
Use way:insert the cables into the conduit, then fix the correct connectors.
Delivery time:1-2 weeks,come with MOQ
Rohs approved part no. like:MCRS-06B/ROHS

Item No.		Trade Sizes		I.D. d	O.D. D	Bending Radius mm±10%	Suitable metal connector NBG	Packing M
BLACK	Gray	Metric ø	British	I.D. d	O.D. D	Bending Radius mm±10%	Suitable metal connector NBG	Packing M
MCRS-03B	MCRS-03G	10	1/4"	10.0±0.3	14.5±0.5	55	NBG-03	100M
MCRS-04B	MCRS-04G	13	3/8"	12.5±0.3	16.8±0.5	65	NBG-04	100M
MCRS-05B	MCRS-05G	16	1/2"	15.5±0.3	20.2±0.5	85	NBG-05	100M
MCRS-06B	MCRS-06G	20	3/4"	20.0±0.3	25.0±0.5	100	NBG-06	50M
MCRS-08B	MCRS-08G	25	1"	25.0±0.3	30.7±0.5	120	NBG-08	50M
MCRS-10B	MCRS-10G	32	1 1/4"	32.0±0.3	38.6±0.5	150	NBG-10	25M
MCRS-12B	MCRS-12G	38	1 1/2	38.0±1.0	44.6±1.0	180	NBG-12	25M
MCRS-16B	MCRS-16G	51	2"	51.0±1.0	59.0±1.0	220	NBG-16	10M
