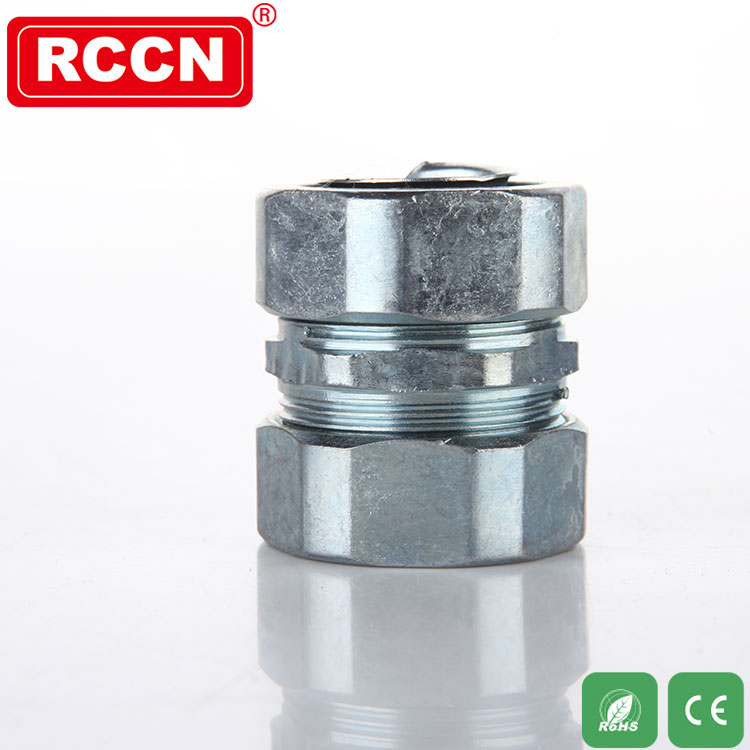

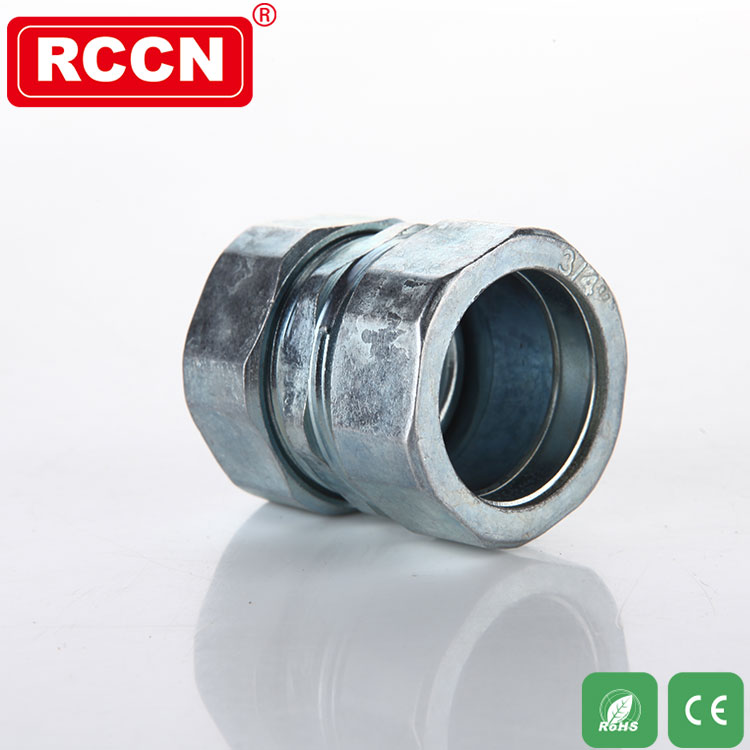

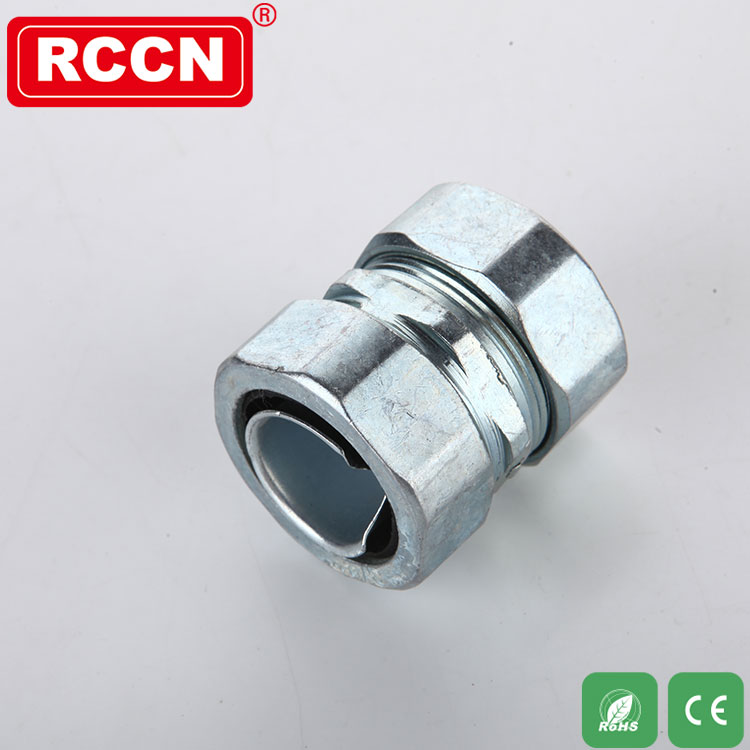

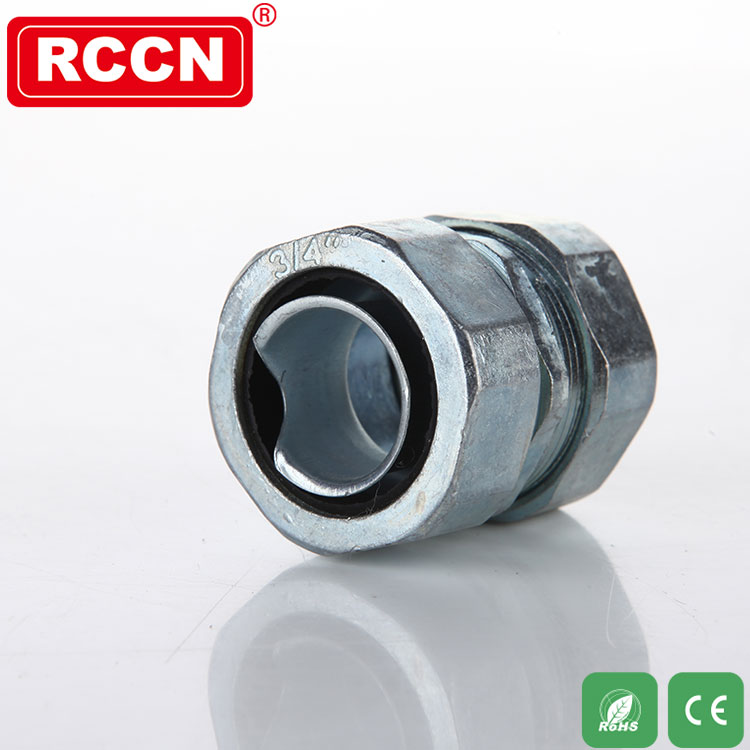

RCCN Conduit Fittings NBK

Conduit Fittings

Material:C.F are made from zinc coated metal.E are made of NBR.Dis made
of iron sheet.
Certificates:CE RoHS
Special thread can be produced

Item No.	suitable RCCN metal flexible conduit MCR			Thicker steel tube(water,coal,gas tube)D1				Thinner tube(electric tube D1
Item No.	Corresponding item no	Metric ø	British	Public size	British size	0uter dia.	Thickness	Public size	British size	0uter dia.	Thickness
NBK-04G	MCR-04	13	3/8"	#12	3/8"	17.00	2.25	15	5/8"	15.87	1.6
NBK-05G	MCR-05	16	1/2"	#15	1/2"	21.25	2.75	20	3/4"	19.05	1.8
NBK-06G	MCR-06	20	3/4"	#20	3/4"	26.75	2.75	25	3/4"	25.40	1.8
NBK-08G	MCR-08	25	1"	#25	1"	33.50	3.25	32	3/4"	31.75	1.8
NBK-10G	MCR-10	32	1 1/4"	#32	1 1/4"	42.25	3.25	40	1 1/2	38.10	1.8
NBK-12G	MCR-12	38	1 1/2"	#40	1 1/2	48.00	3.50	50	2"	50.80	2.0
NBK-16G	MCR-16	51	2"	#50	2"	60.00	3.50	70	2 1/2"	63.50	2.5
NBK-20G	MCR-20	64	2 1/2"	#70	2 1/2"	75.50	3.75	80	3"	76.20	3.2
NBK-24G	MCR-24	80	3"	#80	3"	88.50	4.00
NBK-32G	MCR-32	100	4"	#100	4"	114.0	4.00
