Metal Hose Fittings NBG - RCCN Shanghai RiCheng

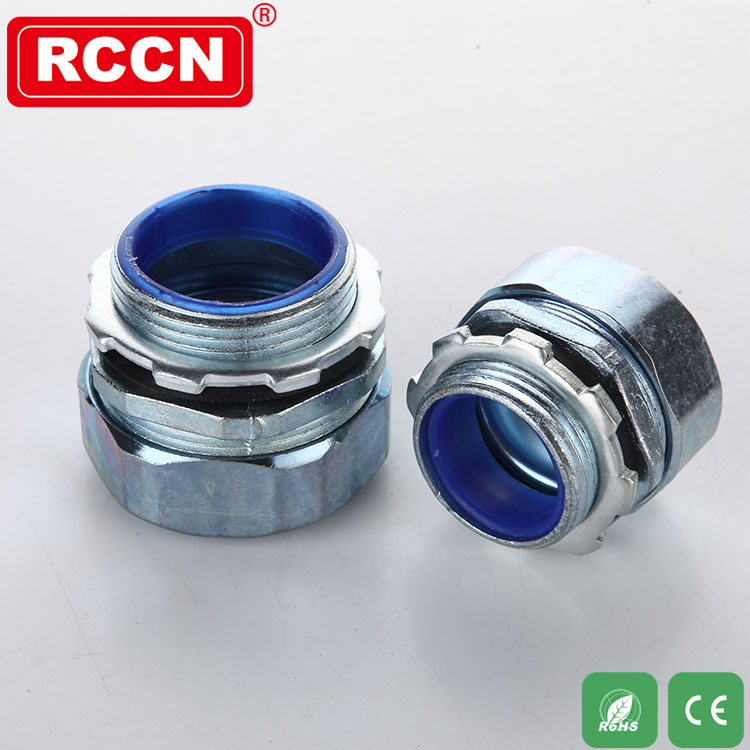

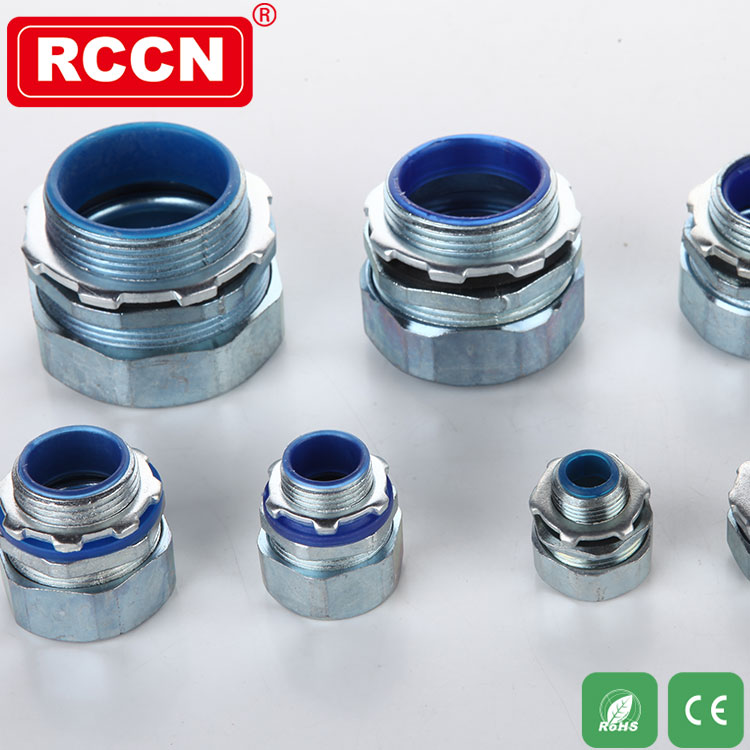

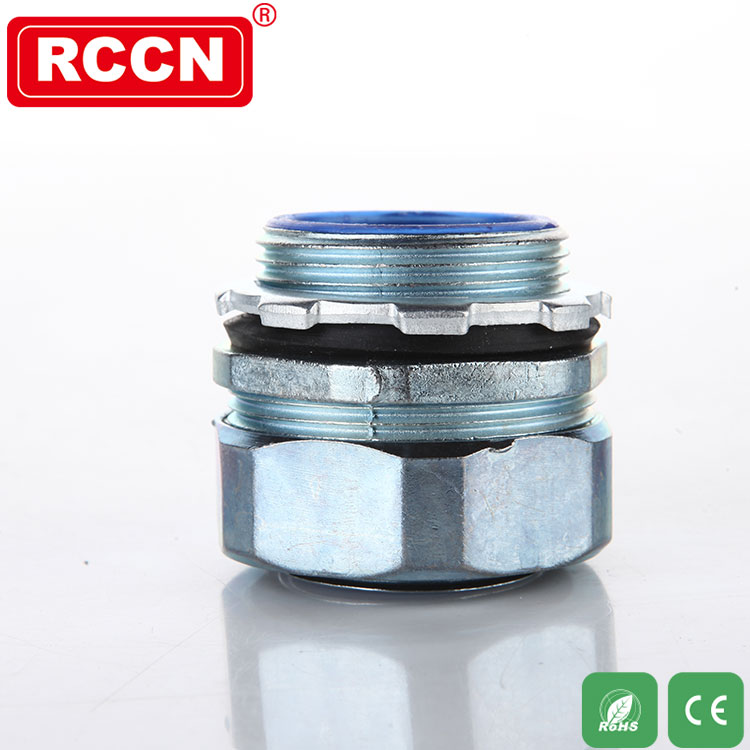

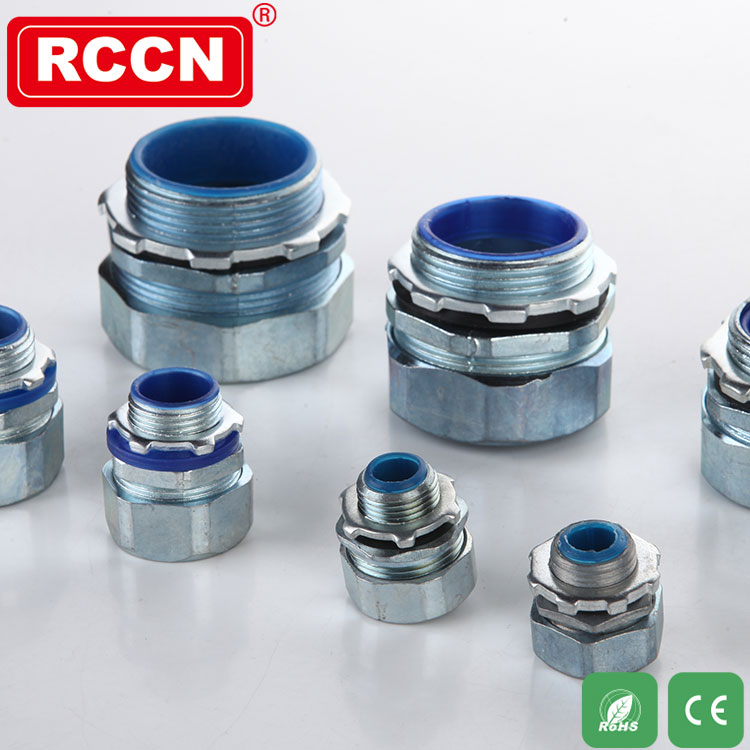

Metal Hose Fittings

Thread:G,Metric, PG
Material:A.C.F are made from zincic metal.B.E
are made of rubber NBR).D is made of sheet iron .
Certificates:CE
Color:Argentine
Protect class:IP6
Work T.:-40°C to 100°C,120°C in a short time.
Products characteristics: 1.thickness added zincic metal,good looking
2.conmmon impregnant resistant,such as water,salty,alcohol,oil, grease and so on.
3.we can adjust the sizes according to your request.
Marks:The finished goods are including locknut and washer.

Item No.		Thread G/M/PG	Suitable RCCN metal flexible conduit MCR			Thread O.D. D1	Thread Length L1	Joint Length L2+L3	Packing pcs
zinc metal	Brass nickel plated	Thread G/M/PG	Corresponding item no	Metric ø	British	Thread O.D. D1	Thread Length L1	Joint Length L2+L3	Packing pcs
Tube thread NBG-G
NBG-01G		G1/4"	MCR-01	6	3/16"	13.2	8	16	100
NBG-02G	TNBG-02G	G1/4"	MCR-02	8	5/16"	13.2	8	16	100
NBG-03G	TNBG-03G	G3/8"	MCR-03	10	1/4"	16.5	8	17	100
NBG-04G	TNBG-04G	G3/8"	MCR-04	13	3/8"	16.5	8	18	100
NBG-05G	TNBG-05G	G1/2"	MCR-05	16	1/2"	21.3	11	23	100
NBG-06G	TNBG-06G	G3/4"	MCR-06	20	3/4"	26.6	14	22	50
NBG-08G	TNBG-08G	G1"	MCR-08	25	1"	33.4	15	28	50
NBG-10G	TNBG-10G	G1 1/4"	MCR-10	32	11/4"	42.1	15	30	25
NBG-12G	TNBG-12G	G1 1/2"	MCR-12	38	11/2"	47.8	16	32	25
NBG-16G	TNBG-16G	G2"	MCR-16	51	2	59.6	18	34	10
NBG-20G		G2 1/2"	MCR-20	64	2 1/2"	75.1	22	38	10
NBG-24G		G3"	MCR-24	80	3"	87.8	22	46	5
NBG-32G		G4"	MCR-32	100	4"	113	24	50	5
Metric thread NBG-M
NBG-01M		M14*1.5	MCR-01	6	3/16"	M14*1.5	8	16	100
NBG-02M		M14*1.5	MCR-02	8	5/16"	M14*1.5	8	16	100
NBG-03M	TNBG-03M	M16*1.5	MCR-03	10	1/4	M16*1.5	8	17	100
NBG-04M	TNBG-04M	M16*1.5	MCR-04	13	3/8"	M16*1.5	8	18	100
NBG-05M	TNBG-05M	M20*1.5	MCR-05	16	1/2"	M20*1.5	11	23	100
NBG-06M	TNBG-06M	M25*1.5	MCR-06	20	3/4"	M25*1.5	14	22	50
NBG-08M	TNBG-08M	M32*1.5	MCR-08	25	1"	M32*1.5	15	28	50
NBG-10M	TNBG-10M	M40*1.5	MCR-10	32	11/4"	M40*1.5	15	30	25
NBG-12M	TNBG-12M	M50*1.5	MCR-12	38	1 1/2	M50*1.5	16	32	25
NBG-16M	TNBG-16M	M63*1.5	MCR-16	51	2"	M63*1.5	18	34	10
NBG-20M		M76*2	MCR-20	64	2 1/2"	M76*2	22	38	10
NBG-24M		M88*2	MCR-24	80	3"	M88*2	22	46	5
NBG-32M		M114*2	MCR-32	100	4"	M114*2	24	50	5
Metric thread NBG-PG
NBG-03P	TNBG-03P	PG9	MCR-03	10	1/4"	15.2	8	16	100
NBG-04P	TNBG-04P	PG11	MCR-04	13	3/8"	18.6	9	17	100
NBG-05P	TNBG-05P	PG13.5	MCR-05	16	1/2"	20.4	11	23	100
NBG-06P	TNBG-06P	PG21	MCR-06	20	3/4"	28.3	14	23	50
NBG-08P	TNBG-08P	PG29	MCR-08	25	1"	37.0	15	28	50
NBG-10P	TNBG-10P	PG29	MCR-10	32	1 1/4"	37.0	15	30	25
NBG-12P	TNBG-12P	PG36	MCR-12	38	11/2"	47.0	16	32	25
NBG-16P	TNBG-16P	PG48	MCR-16	51	2"	59.3	18	34	10
