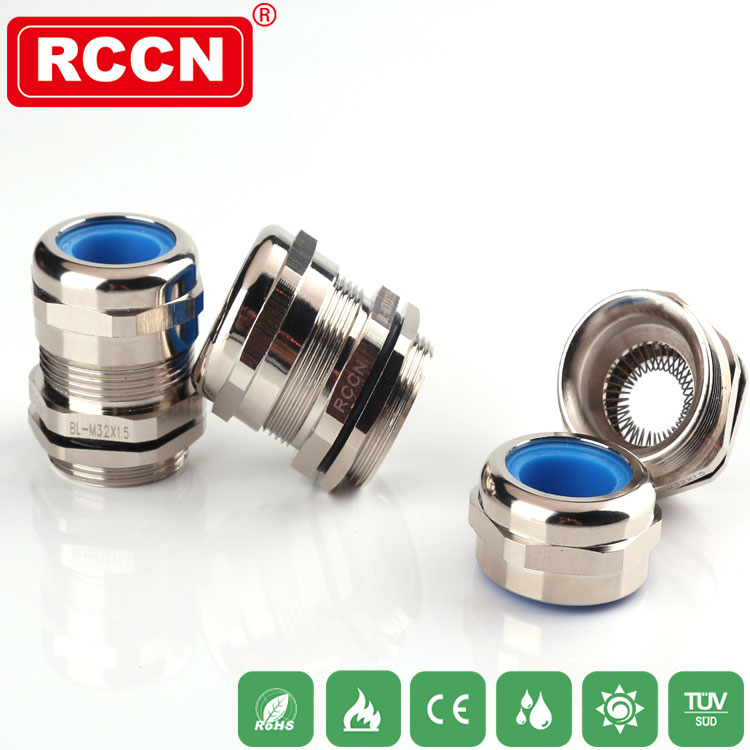

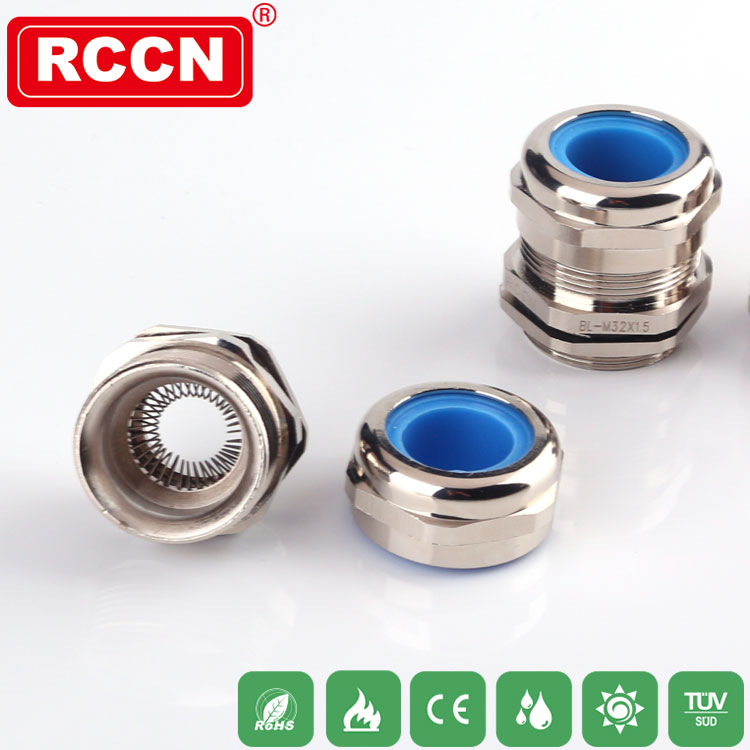

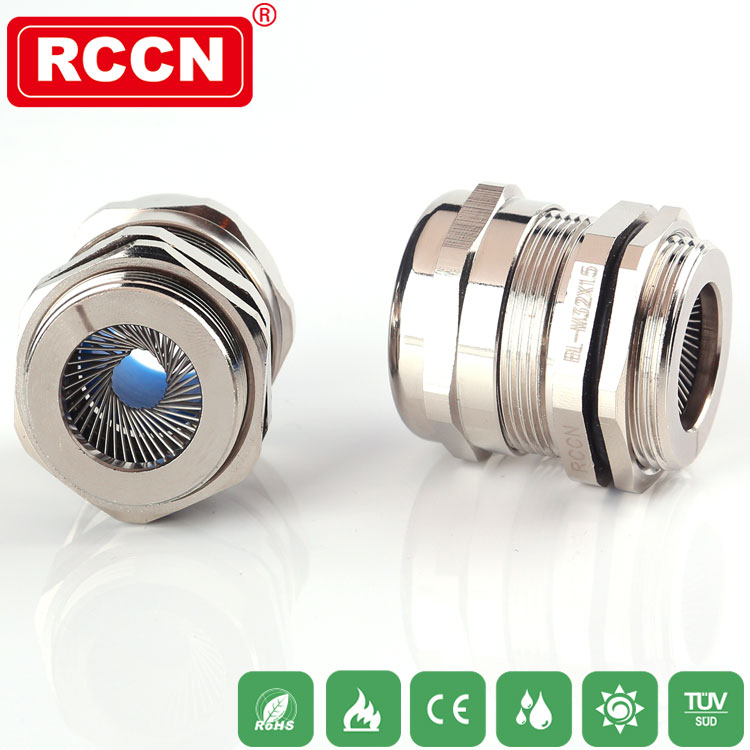

Brass Cable Gland BL-EMC

Anti-electromagnetic, conductive excellent

EMC

Thread:Metric/PG/NPT/G(PF)
Material:Brass,nickel plated Seal/Oring:silicon rubber
Certificates:CE,ROHS
Tempe.range:-50°C to +150°C
Protection:IP68。

Thread length M	Germany thread PG	America thread NPT	English thread G	Cable Range	with inlet E1	without inlet E2	maximum shield diameter	Thread Length L1	Extended model Thread length L1	Joint Length L2+L3	Spanner SW A/F
BL-M12×1.5EMC-6	BL-PG7EMC-6	BL-NPT1/4EMC-6	BL-G1/4EMC-6	2-8	2-5	5-8	6	7	12	21	18
BL-M18×1.5EMC-9	BL-PG11EMC-9	BL-NPT3/8EMC-9	BL-G3/8EMC -9	4-11	4-7	7-11	9	7	12	25	22
BL-M20×1.5EMC-10	BL-PG13.5EMC-10	BL-NPT1/2EMC-10	BL-G1/2EMC-10	5-14	5-9	9-14	10	8	12	29	24
BL-M22×1.5EMC-10	BL-PG16EMC-10			5-14	5-9	9-14	10	8	12	29	26
BL-M24×1.5EMC-16				11-20	11-16	16-20	16	9	13	30	30
BL-M25×1.5EMC-16	BL-PG21EMC-16	BL-NPT3/4EMC-16	BL-G3/4EMC-16	11-16	11-16	16-20	16	9	13	30	30
BL-M27×1.5EMC-20				11-20	11-16	16-20	16
BL-M30×2.0EMC-20				15-20	15-20	20-25	20	11	15	32	36
BL-M32×1.5EMC-20		BL-NPT1EMC-20	BL-G1EMC-20	15-20	15-20	20-25	20	11	15	32	36
BL-M33×2.0EMC-20				15-20	15-20	20-25	20	11	15	32	36
