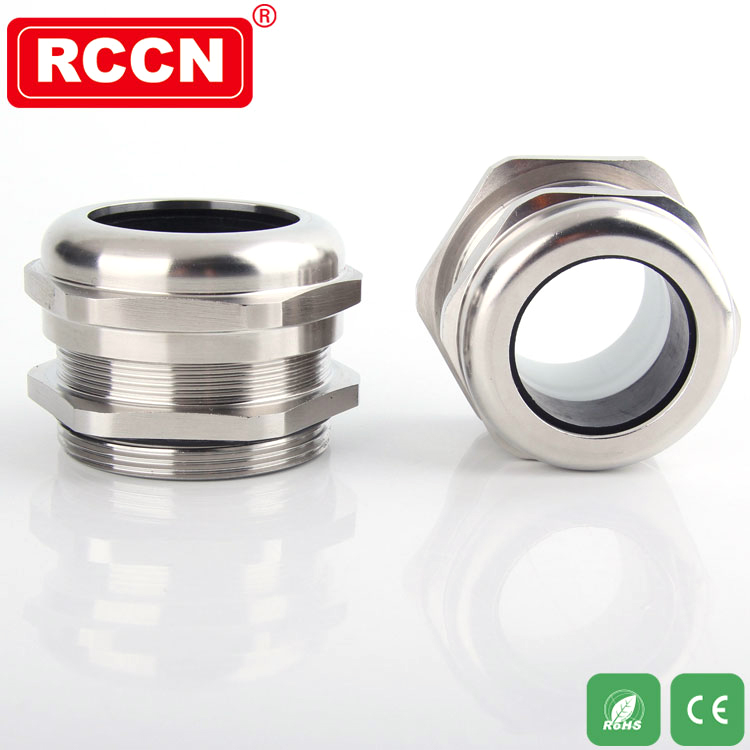

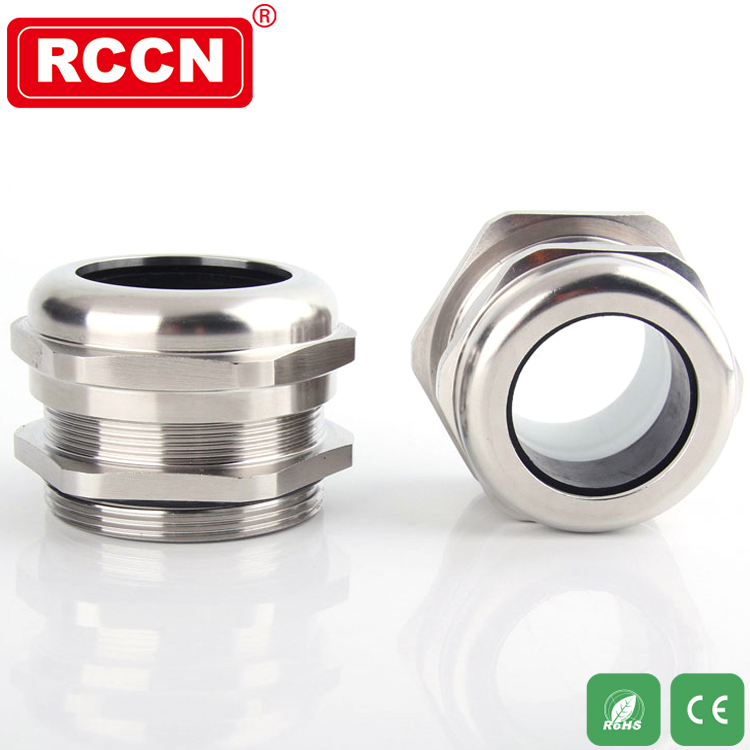

Stainless steel connector BXG-G/NPT

Series:BXG-G/NPT

Material: The external metal is stainless steel 304, the inner core sleeve is nylon, the sealing material is modified rubber
Degree of protection: within the specified bayonet range, and the use of O-ring tight tight head, degree of protection can reach IP68

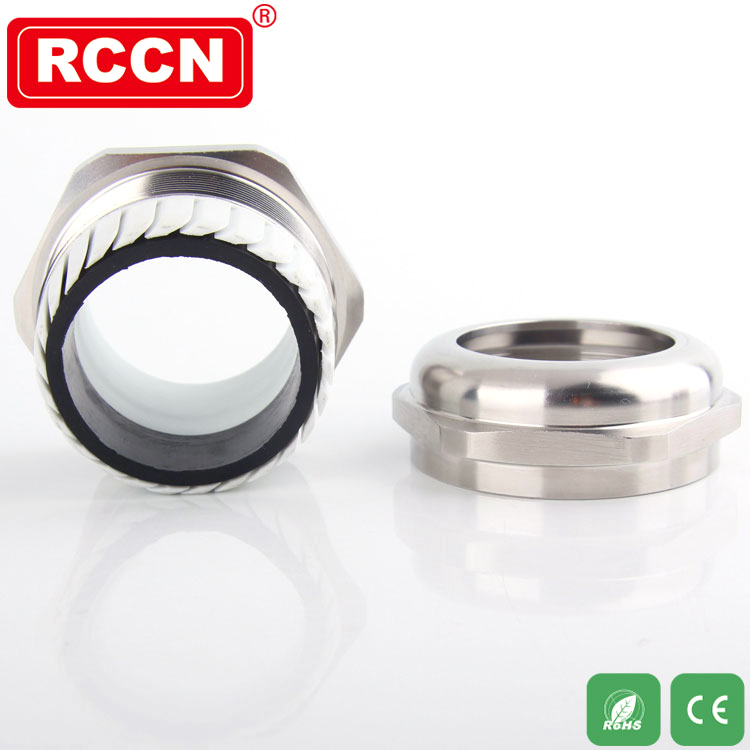

Features: Special clamping claw clamped with the clamping ring, with tight head, clamping cable range, strong anti-pull, water, dust, salt, acid, alcohol, oil, grease And general solvents.
Operating temperature: -40 ℃ to 100 ℃. Short time can reach 120 ° C
Applications: Cable waterproof connector is an accessory product of the cable. The connector can be connected to the equipment box, and also can be connected to the electric equipment with the internal thread for the import and export according to the selected thread.


Specification

Item No.

Thread Dimension

Clamping range

mm

Thread diameter
AG
 mm
Thread length
GL
mm
H
mm

Wrench size

mm

Std.Pkg

PCS

BXG-G     G Thread
BXG-G1/4-6.5 G1/4" 3-6.5 13.11 7 19 14 50
BXG-G3/8-8 G3/8" 4-8 16.66 8 21 17/20 50
BXG-G1/2-10S G1/2" 5-10 20.99 8 23 20/24 50
BXG-G1/2-12 G1/2" 6-12 20.99 8 23.5 22/24 50
BXG-G1/2-14D G1/2" 8-14 20.99 8 23.5 24 50
BXG-G3/4-12TS G3/4" 6-12 26.44 8 23.5 22/30 50
BXG-G3/4-14S G3/4" 8-14 26.44 8 23.5 24/30 50
BXG-G1-18S G3/4" 13-18 26.44 8 26 30 25
BXG-G1-25 G1" 18-25 33.24 9 33 40 20
BXG-G1 1/2-32S G1 1/4" 22-32 41.91 10 38.5 50 10
BXG-G2-38S GI 1/2" 30-38 47.8 10 40 55/58 10
BXG-G2-44 G2" 37-44 59.61 11 41 65 5
BXG-NPT      NPT Thread
BXG-NPT3/8-8 NPT 3/8" 4-8 17.055 11 21 17/20 50
BXG-NPT1/2-10S NPT 1/2" 5-10 21.223 13 23 20/24 50
BXG-NPT1/2-12 NPT 1/2" 6-12 21.223 13 23.5 22/24 50
BXG-NPT1/2-14D NPT 1/2" 8-14 21.223 13 23.5 24 50
BXG-NPT3/4-12TS NPT 3/4" 6-12 26.568 13 23.5 22/30 50
BXG-NPT3/4-14S NPT 3/4" 8-14 26.568 13 23.5 24/30 50
BXG-NPT3/4-18 NPT 3/4" 13-18 26.568 13 26 30 25
BXG-NPT1-25 NPT 1" 18-25 33.227 16 33 40 20
BXG-NPT1 1/4-32 NPT1 1/4" 22-32 41.984 16 38.5 50 10
BXG-NPT1 1/2-38 NPT1 1/2" 30-38 48.053 18 40 55/58 10
BXG-NPT2-44 NPT 2" 37-44 60.091 18 41 65 5
BXG-NPT3-61 NPT 3" 55-61 88.608 18 45 94 5
