RCCN Wiring Duct HVDRF-HF

High temperature resistance 110 degrees

Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizes。
Certificates:ULCE:EN50085 RoHS,REACH。Made of rigid Halogen free PCABS
Work temperature:-40 °c to 110 °c
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Special length come with MOQ request

Halogen Free Wiring DuctWiring Duct

Specification


Item No.



W*H



Q



P

Pack

/M

Gray White Blue Black
HVDR1616F/HF HVDR1616FW/HF HVDR1616FE/HF HVDR1616FB/HF 16*16 5 5 300M
HVDR2516F/HF HVDR2516FW/HF HVDR2516FE/HF HVDR2516FB/HF 25*16 5 5 260M
HVDR1520F/HF HVDR1520FW/HF HVDR1520FE/HF HVDR1520FB/HF 15*20 4 6 260M
HVDR2020F/HF HVDR2020FW/HF HVDR2020FE/HF HVDR2020FB/HF 20*20 4 6 240M
HVDR4020F/HF HVDR4020FW/HF HVDR4020FE/HF HVDR4020FB/HF 40*20 4 6 140M
HVDR1525F/HF HVDR1525FW/HF HVDR1525FE/HF HVDR1525FB/HF 15*25 5 5 260M
HVDR2025F/HF HVDR2025FW/HF HVDR2025FE/HF HVDR2025FB/HF 20*25 4 6 200M
HVDR2525F/HF HVDR2525FW/HF HVDR2525FE/HF HVDR2525FB/HF 25*25 4 6 200M
HVDR3025F/HF HVDR3025FW/HF HVDR3025FE/HF HVDR3025FB/HF 30*25 4 6 160M
HVDR4025F/HF HVDR4025FW/HF HVDR4025FE/HF HVDR4025FB/HF 40*25 4 6 100M
HVDR5025F/HF HVDR5025FW/HF HVDR5025EF/HF HVDR5025FB/HF 50*25 4 6 100M
HVDR1530F/HF HVDR1530FW/HF HVDR1530FE/HF HVDR1530FB/HF 15*30 4 6 180M
HVDR2030F/HF HVDR2030FW/HF HVDR2030FE/HF HVDR2030FB/HF 20*30 4 6 130M
HVDR2530F/HF HVDR2530FW/HF HVDR2530FE/HF HVDR2530FB/HF 25*30 4 6 130M
HVDR3030F/HF HVDR3030FW/HF HVDR3030FE/HF HVDR3030FB/HF 30*30 4 6 140M
HVDR4030F/HF HVDR4030FW/HF HVDR4030FE/HF HVDR4030FB/HF 40*30 4 6 100M
HVDR5030F/HF HVDR5030FW/HF HVDR5030FE/HF HVDR5030FB/HF 50*30 4 5 80M
HVDR6030F/HF HVDR6030FW/HF HVDR6030FE/HF HVDR6030FB/HF 60*30 4 6 60M
HVDR2233F/HF HVDR2233FW/HF HVDR2233FE/HF HVDR2233FB/HF 22*33 4 6 160M
HVDR3333F/HF HVDR3333FW/HF HVDR3333FE/HF HVDR3333FB/HF 33*33 4 6 160M
HVDR2035F/HF HVDR2035FW/HF HVDR2035FE/HF HVDR2035FB/HF 20*35 4 6 100M
HVDR3535F/HF HVDR3535FW/HF HVDR3535FE/HF HVDR3535FB/HF 35*35 4 6 112M
HVDR5035F/HF HVDR5035FW/HF HVDR5035FE/HF HVDR5035FB/HF 50*35 4 6 88M
HVDR2040F/HF HVDR2040FW/HF HVDR2040FE/HF HVDR2040FB/HF 20*40 4 6 110M
HVDR2540F/HF HVDR2540FW/HF HVDR2540FE/HF HVDR2540FB/HF 25*40 4 6 112M
HVDR3540F/HF HVDR3540FW/HF HVDR3540FE/HF HVDR3540FB/HF 35*40 4 6 100M
HVDR4040F/HF HVDR4040FW/HF HVDR4040FE/HF HVDR4040FB/HF 40*40 4 6 100M
HVDR6040F/HF HVDR6040FW/HF HVDR6040FE/HF HVDR6040FB/HF 60*40 4 6 68M
HVDR8040F/HF HVDR8040FW/HF HVDR8040FE/HF HVDR8040FB/HF 80*40 4 6 48M
HVDR10040F/HF HVDR10040FW/HF HVDR10040FE/HF HVDR10040FB/HF 100*40 4 6 32M
HVDR12040F/HF HVDR12040FW/HF HVDR12040FE/HF HVDR12040FB/HF 100*40 4 6
/
HVDR2545F/HF HVDR2545FW/HF HVDR2545FE/HF HVDR2545FB/HF 25*45 4 6 104M
HVDR3345F/HF HVDR3345FW/HF HVDR3345FE/HF HVDR3345FB/HF 33*45 4 6 108M
HVDR4545F/HF HVDR4545FW/HF HVDR4545FE/HF HVDR4545FB/HF 45*45 4 6 72M
HVDR6545F/HF HVDR6545FW/HF HVDR6545FE/HF HVDR6545FB/HF 65*45 4 6 56M
HVDR2050F/HF HVDR2050FW/HF HVDR2050FE/HF HVDR2050FB/HF 20*50 4 6 100M
HVDR2550F/HF HVDR2550FW/HF HVDR2550FE/HF HVDR2550FB/HF 25*50 4 6 100M
HVDR3050F/HF HVDR3050FW/HF HVDR3050FE/HF HVDR3050FB/HF 30*50 4 6 84M
HVDR3550F/HF HVDR3550FW/HF HVDR3550FE/HF HVDR3550FB/HF 35*50 4 6 80M
HVDR4050F/HF HVDR4050FW/HF HVDR4050FE/HF HVDR4050FB/HF 40*50 4 6 68M
HVDR4550F/HF HVDR4550FW/HF HVDR4550FE/HF HVDR4550FB/HF 45*50 4 6 60M
HVDR5050F/HF HVDR5050FW/HF HVDR5050FE/HF HVDR5050FB/HF 50*50 4 6 50M
HVDR5550F/HF HVDR5550FW/HF HVDR5550FE/HF HVDR5550FB/HF 55*50 4 6 48M
HVDR6050F/HF HVDR6050FW/HF HVDR6050FE/HF HVDR6050FB/HF 60*50 4 6 48M
HVDR7550F/HF HVDR7550FW/HF HVDR7550FE/HF HVDR7550FB/HF 75*50 4 6 40M
HVDR8050F/HF HVDR8050FW/HF HVDR8050FE/HF HVDR8050FB/HF 80*50 4 6 40M
HVDR10050F/HF HVDR10050FW/HF HVDR10050FE/HF HVDR10050FB/HF 100*50 4 6 26M
HVDR12555F/HF HVDR12555FW/HF HVDR12555FE/HF HVDR12555FB/HF 125*55 4 6 26M
HVDR2060F/HF HVDR2060FW/HF HVDR2060FE/HF HVDR2060FB/HF 20*60 4 6 100M
HVDR2560F/HF HVDR2560FW/HF HVDR2560FE/HF HVDR2560FB/HF 25*60 4 6 100M
HVDR3060F/HF HVDR3060FW/HF HVDR3060FE/HF HVDR3060FB/HF 30*60 4 6 80M
HVDR3560F/HF HVDR3560FW/HF HVDR3560FE/HF HVDR3560FB/HF 35*60 4 6 78M
HVDR4060F/HF HVDR4060FW/HF HVDR4060FE/HF HVDR4060FB/HF 40*60 4 6 60M
HVDR4560F/HF HVDR4560FW/HF HVDR4560FE/HF HVDR4560FB/HF 45*60 4 6 30M
HVDR5060F/HF HVDR5060FW/HF HVDR5060FE/HF HVDR5060FB/HF 50*60 4 6 60M
HVDR6060F/HF HVDR6060FW/HF HVDR6060FE/HF HVDR6060FB/HF 60*60 4 6 48M
HVDR8060F/HF HVDR8060FW/HF HVDR8060FE/HF HVDR8060FB/HF 80*60 4 6 36M
HVDR10060F/HF HVDR10060FW/HF HVDR10060FE/HF HVDR10060FB/HF 100*60 4 6 28M
HVDR11060F/HF HVDR11060FW/HF HVDR11060FE/HF HVDR11060FB/HF 110*60 4 6 48M
HVDR12060F/HF HVDR12060FW/HF HVDR12060FE/HF HVDR12060FB/HF 120*60 4 6 48M
HVDR15060F/HF HVDR15060FW/HF HVDR15060FE/HF HVDR15060FB/HF 150*60 4 6 16M
HVDR2565F/HF HVDR2565FW/HF HVDR2565FE/HF HVDR2565FB/HF 25*65 4 6 88M
HVDR3365F/HF HVDR3365FW/HF HVDR3365FE/HF HVDR3365FB/HF 33*65 4 6 80M
HVDR4565F/HF HVDR4565FW/HF HVDR4565FE/HF HVDR4565FB/HF 45*65 4 6 52M
HVDR6565F/HF HVDR6565FW/HF HVDR6565FE/HF HVDR6565FB/HF 65*65 4 6 44M
HVDR7265F/HF HVDR7265FW/HF HVDR7265FE/HF HVDR7265FB/HF 72*65 4 6 42M
HVDR2575F/HF HVDR2575FW/HF HVDR2575FE/HF HVDR2575FB/HF 25*75 4 6
/
HVDR5075F/HF HVDR5075FW/HF HVDR5075FE/HF HVDR5075FB/HF 50*75 4 6 42M
HVDR7575F/HF HVDR7575FW/HF HVDR7575FE/HF HVDR7575FB/HF 75*75 4 6 40M
HVDR10075F/HF HVDR10075FW/HF HVDR10075FE/HF HVDR10075FB/HF 100*75 4 6 24M
HVDR2580F/HF HVDR2580FW/HF HVDR2580FE/HF HVDR2580FB/HF 25*80 4 6 72M
HVDR3080F/HF HVDR3080FW/HF HVDR3080FE/HF HVDR3080FB/HF 30*80 4 6 56M
HVDR3580F/HF HVDR3580FW/HF HVDR3580FE/HF HVDR3580FB/HF 35*80 4 6 56M
HVDR4080F/HF HVDR4080FW/HF HVDR4080FE/HF HVDR4080FB/HF 40*80 4 6 48M
HVDR4580F/HF HVDR4580FW/HF HVDR4580FE/HF HVDR4580FB/HF 45*80 4 6 40M
HVDR5080F/HF HVDR5080FW/HF HVDR5080FE/HF HVDR5080FB/HF 50*80 4 6 40M
HVDR5580F/HF HVDR5580FW/HF HVDR5580FE/HF HVDR5580FB/HF 55*80 4 6 32M
HVDR6080F/HF HVDR6080FW/HF HVDR6080FE/HF HVDR6080FB/HF 60*80 4 6 32M
HVDR8080F/HF HVDR8080FW/HF HVDR8080FE/HF HVDR8080FB/HF 80*80 4 6 24M
HVDR10080F/HF HVDR10080FW/HF HVDR10080FE/HF HVDR10080FB/HF 100*80 4 6 24M
HVDR12080F/HF HVDR12080FW/HF HVDR12080FE/HF HVDR12080FB/HF 120*80 4 6 16M
HVDR14080F/HF HVDR14080FW/HF HVDR14080FE/HF HVDR14080FB/HF 140*80 4 6 16M
HVDR16080F/HF HVDR16080FW/HF HVDR16080FE/HF HVDR16080FB/HF 160*80 4 6
/
HVDR25100F/HF HVDR25100FW/HF HVDR25100FE/HF HVDR25100FB/HF 25*100 4 6 60M
HVDR33100F/HF HVDR33100FW/HF HVDR33100FE/HF HVDR33100FB/HF 33*100 4 6 44M
HVDR40100F/HF HVDR40100FW/HF HVDR40100FE/HF HDR40100FB/HF 40*100 4 6 40M
HVDR50100F/HF HVDR50100FW/HF HVDR50100FE/HF HVDR50100FB/HF 50*100 4 6 40M
HVDR60100F/HF HVDR60100FW/HF HVDR60100FE/HF HVDR60100FB/HF 60*100 4 6 32M
HVDR70100F/HF HVDR70100FW/HF HVDR70100FE/HF HVDR70100FB/HF 70*100 4 6 24M
HVDR75100F/HF HVDR75100FW/HF HVDR75100FE/HF HVDR75100FB/HF 75*100 4 6 24M
HVDR80100F/HF HVDR80100FW/HF HVDR80100FE/HF HVDR80100FB/HF 80*100 4 6 24M
HVDR100100F/HF HVDR100100FW/HF HVDR100100FE/HF HVDR100100FB/HF 100*100 4 6 24M
HVDR120100F/HF HVDR120100FW/HF HVDR120100FE/HF HVDR120100FB/HF 120*100 4 6 16M
HVDR150100F/HF HVDR150100FW/HF HVDR150100FE/HF HVDR150100FB/HF 150*100 4 6 16M
HVDR160100F/HF HVDR160100FW/HF HVDR160100FE/HF HVDR160100FB/HF 160*100 4 6
/
HVDR100130F/HF HVDR100130FW/HF HVDR100130FE/HF HVDR100130FB/HF 100*130 4 6
/
HVDR200100F/HF HVDR200100FW/HF HVDR200100FE/HF HVDR200100FB/HF 200*100 4 6 16M
HVDR200150F/HF HVDR200150FW/HF HVDR200150FE/HF HVDR200150FB/HF 200*150 4 6 16M

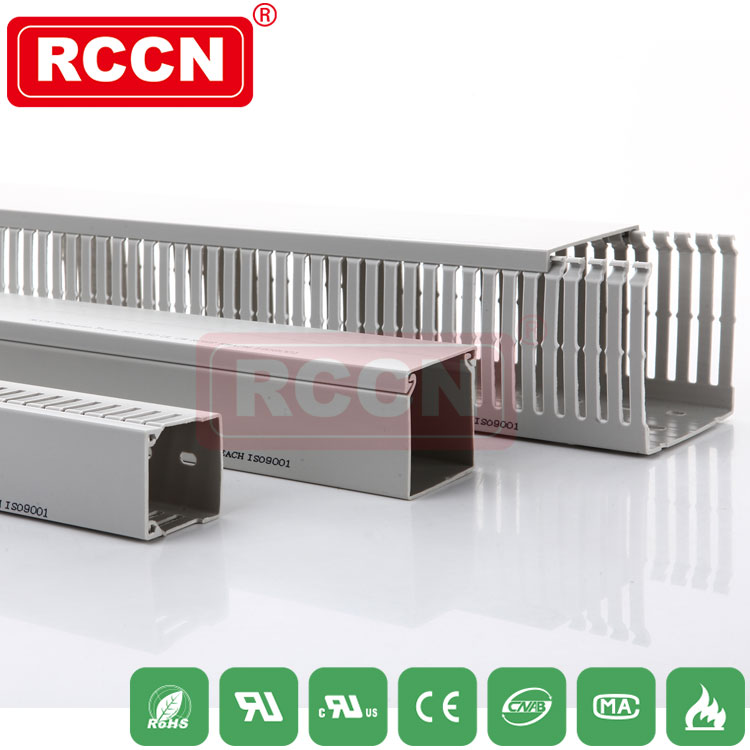

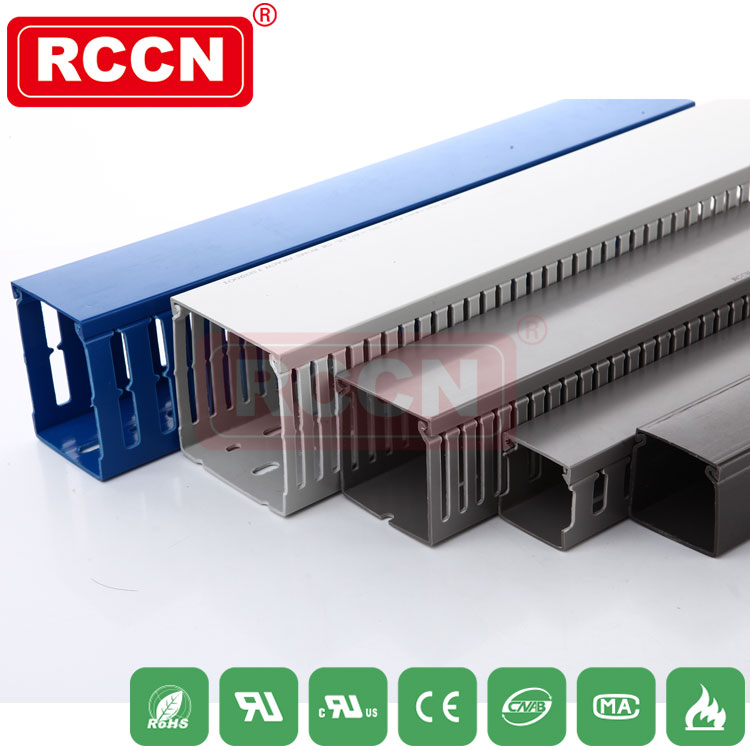

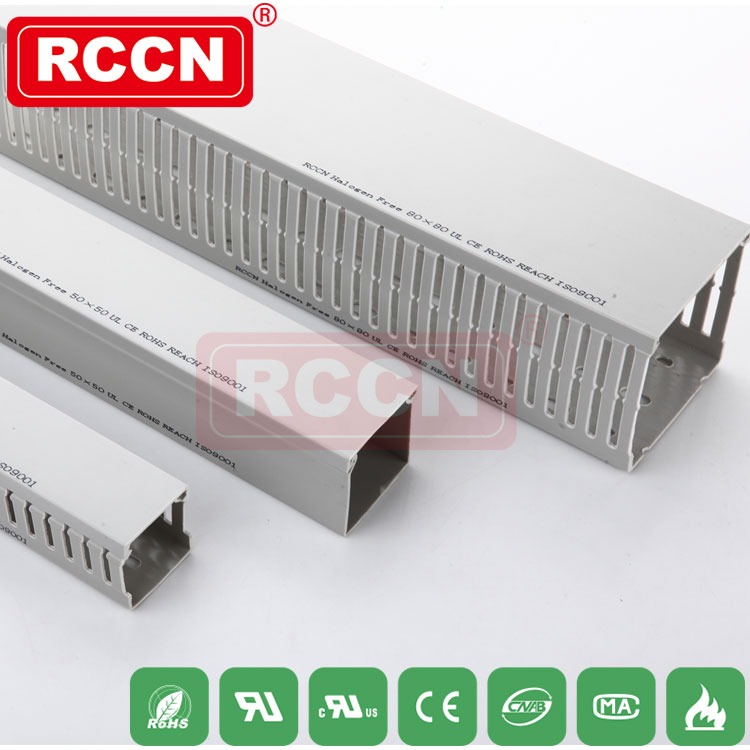

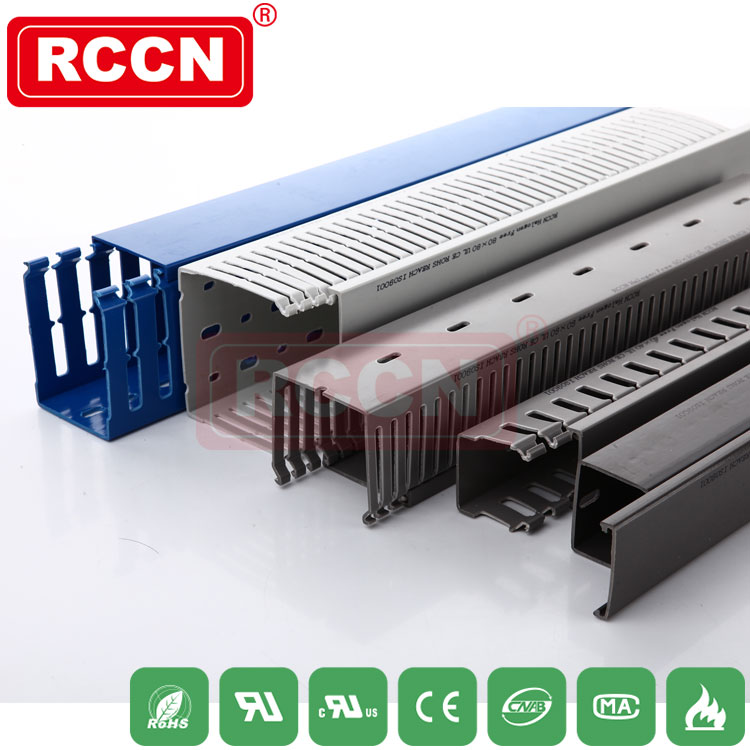

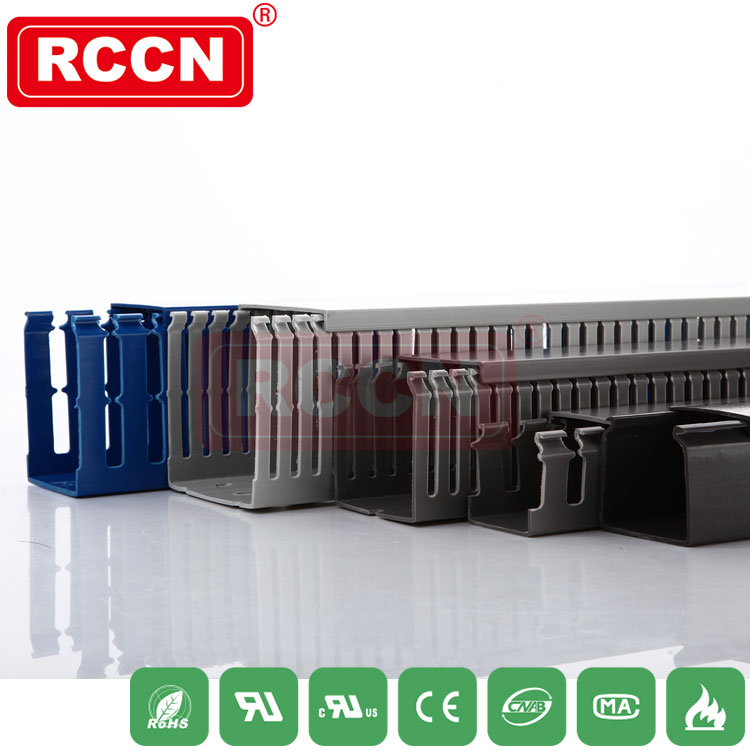

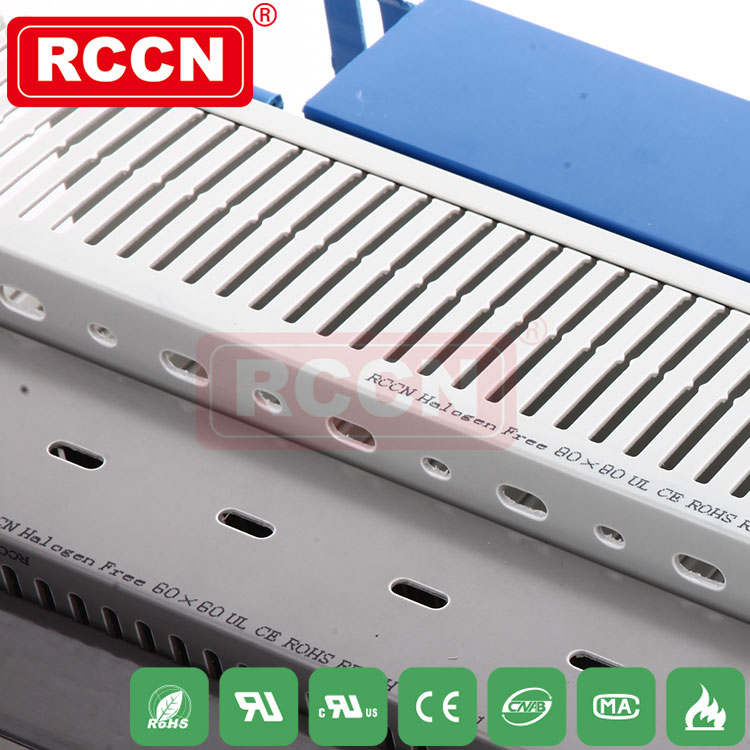

Product Show
