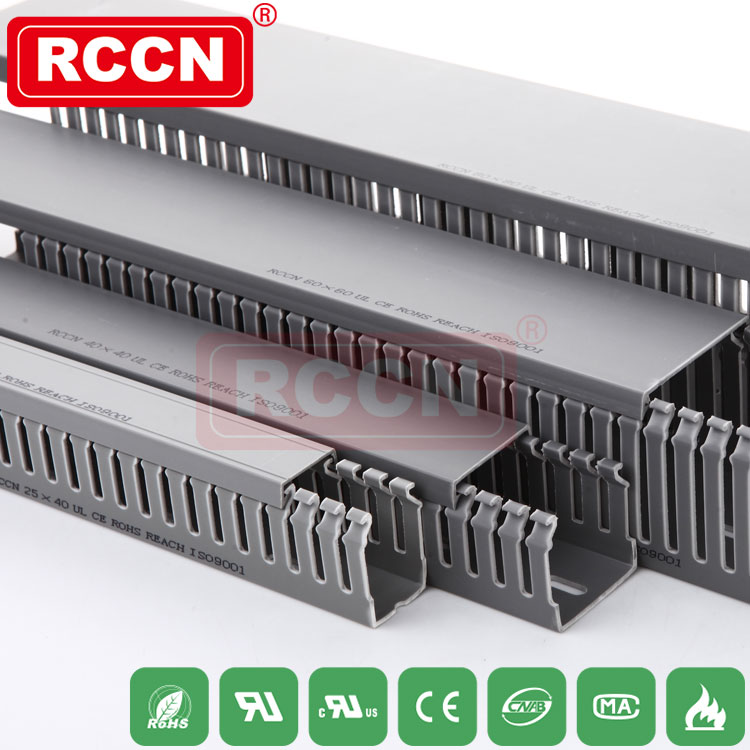

RCCN Wiring Duct HVDRF

4mm*6mm

Wide slot/finger design provides greater sidewall rigidity and canbe used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes

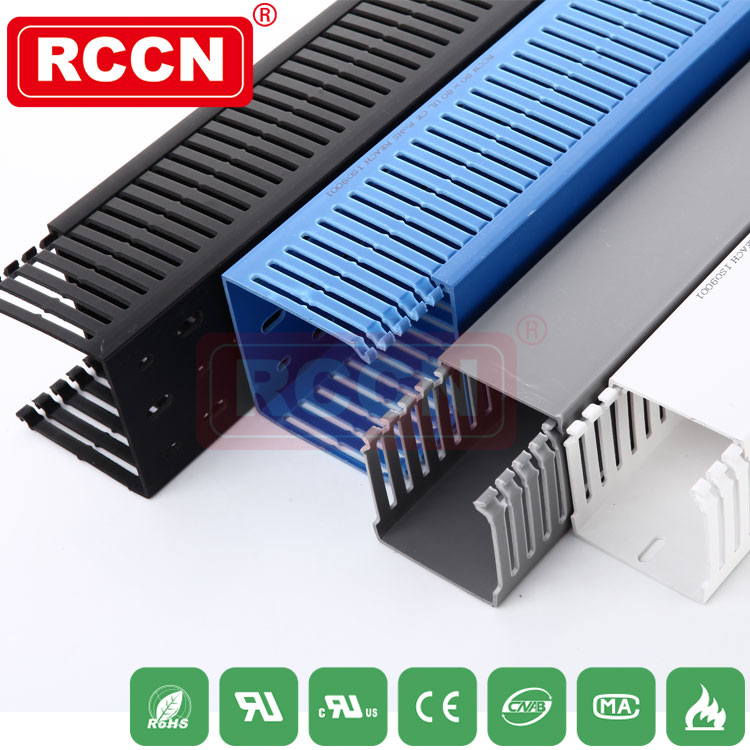

Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ
Standard Length:2M/PCS



Wiring ductPVC TrunkingWire trunking

Specification





                   Item No.    4MM



W*H



Q



P

Wire
capability
/2.0sp



Pack

/M



   Gray      White       Blue      Black
HVDR1616F HVDR1616FW HVDR1616FE HVDR1616FB 16*16 5 5 3~10pcs

300M

HVDR2516F HVDR2516FW HVDR2516FE HVDR2516FB 25*16 5 5 3~10pcs

100M

HVDR1520F HVDR1520FW HVDR1520FE HVDR1520FB 15*20 4 6 8~12pcs 260M
HVDR2020F HVDR2020FW HVDR2020FE HVDR2020FB 20*20 4 6 10~20pcs 240M
HVDR4020F HVDR4020FW HVDR4020FE HVDR4020FB 40*20 4 6 12~28pcs 140M
HVDR1525F HVDR1525FW HVDR1525FE HVDR1525FB 15*25 5 6 5~15pcs 260M
HVDR2025F HVDR2025FW HVDR2025FE HVDR2025FB 20*20 4 6 5~15pcs 200M
HVDR2525F HVDR2525FW HVDR2525FE HVDR2525FB 25*25 4 6 10~25pcs 200M
HVDR3025F HVDR3025FW HVDR3025FE HVDR3025FB 30*25 4 6 12~28pcs 160M
HVDR4025F HVDR4025FW HVDR4025FE HVDR4025FB 40*25 4 6 12~28pcs 100M
HVDR5025F HVDR5025FW HVDR5025FE HVDR5025FB 50*25 4 6 20~30pcs 100M
HVDR1530F HVDR1530FW HVDR1530FE HVDR1530FB 15*30 4 6 20~30pcs 180M
HVDR2030F HVDR2030FW HVDR2030FE HVDR2030FB 20*30 4 6 20~30pcs 160M
HVDR2530F HVDR2530FW HVDR2530FE HVDR2530FB 25*30 4 6 25~35pcs 160M
HVDR3030F HVDR3030FW HVDR3030FE HVDR3030FB 30*30 4 6 25~35pcs 140M
HVDR4030F HVDR4030FW HVDR4030FE HVDR4030FB 40*30 4 6 30~40pcs 100M
HVDR5030F HVDR5030FW HVDR5030FE HVDR5030FB 50*30 4 6 35~45pcs 80M
HVDR6030F HVDR6030FW HVDR6030FE HVDR6030FB 60*30 4 6 40~50pcs 60M
HVDR2233F HVDR2233FW HVDR2233FE HVDR2233FB 22*33 5 6 30~45pcs 160M
HVDR3333F HVDR3333FW HVDR3333FE HVDR3333FB 33*33 4 6 35~45pcs 160M
HVDR2035F HVDR2035FW HVDR2035FE HVDR2035FB 20*35 4 6 30~40pcs 100M
HVDR3535F HVDR3535FW HVDR3535FE HVDR3535FB 35*35 4 6 35~45pcs 112M
HVDR5035F HVDR5035FW HVDR5035FE HVDR5035FB 50*35 4 6 40~60pcs 88M
HVDR2040F HVDR2040FW HVDR2040FE HVDR2040FB 20*40 4 6 16~22pcs 110M
HVDR2540F HVDR2540FW HVDR2540FE HVDR2540FB 25*40 4 6 20~25pcs 112M
HVDR3540F HVDR3540FW HVDR3540FE HVDR3540FB 35*40 4 6 50~60pcs 100M
HVDR4040F HVDR4040FW HVDR4040FE HVDR4040FB 40*40 4 6 60~70pcs 100M
HVDR6040F HVDR6040FW HVDR6040FE HVDR6040FB 60*40 4 6 100~115pcs 68M
HVDR8040F HVDR8040FW HVDR8040FE HVDR8040FB 80*40 4 6 120~135pcs 48M
HVDR10040F HVDR10040FW HVDR10040FE HVDR10040FB 100*40 4 6 120~135pcs 32M
HVDR12040F HVDR12040FW HVDR12040FE HVDR12040FB 120*40 4 6 140-155pcs
/
HVDR2545F HVDR2545FW HVDR2545FE HVDR2545FB 25*45 4 6 20~25pcs 104M
HVDR3345F HVDR3345FW HVDR3345FE HVDR3345FB 33*45 4 6 40~55pcs 108M
HVDR4545F HVDR4545FW HVDR4545FE HVDR4545FB 45*45 4 6 60~70pcs 72M
HVDR6545F HVDR6545FW HVDR6545FE HVDR6545FB 65*45 4 6 110~120pcs 56M
HVDR2050F HVDR2050FW HVDR2050FE HVDR2050FB 20*50 4 6 18~28pcs 100M
HVDR2550F HVDR2550FW HVDR2550FE HVDR2550FB 25*50 4 6 20~30pcs 100M
HVDR3050F HVDR3050FW HVDR3050FE HVDR3050FB 30*50 4 6 25~40pcs 84M
HVDR3550F HVDR3550FW HVDR3550FE HVDR3550FB 35*50 4 6 40~60pcs 80M
HVDR4050F HVDR4050FW HVDR4050FE HVDR4050FB 40*50 4 6 60~70pcs 68M
HVDR4550F HVDR4550FW HVDR4550FE HVDR4550FB 45*50 4 6 70~80pcs 60M
HVDR5050F HVDR5050FW HVDR5050FE HVDR5050FB 50*50 4 6 80~90pcs 50M
HVDR5550F HVDR5550FW HVDR5550FE HVDR5550FB 55*50 4 6 80~90pcs 48M
HVDR6050F HVDR6050FW HVDR6050FE HVDR6050FB 60*50 4 6 100~120pcs 48M
HVDR7550F HVDR7550FW HVDR7550FE HVDR7550FB 75*50 4 6 120~140pcs 40M
HVDR8050F HVDR8050FW HVDR8050FE HVDR8050FB 80*50 4 6 160~180pcs 40M
HVDR10050F HVDR10050FW HVDR10050FE HVDR10050FB 100*50 4 6 200~250pcs 26M
HVDR12555F HVDR12555FW HVDR12555FE HVDR12555FB 125*55 4 6 220~270pcs 20M
HVDR2060F HVDR2060FW HVDR2060FE HVDR2060FB 20*60 4 6 35~45pcs 100M
HVDR2560F HVDR2560FW HVDR2560FE HVDR2560FB 25*60 4 6 40~50pcs 100M
HVDR3060F HVDR3060FW HVDR3060FE HVDR3060FB 30*60 4 6 60~80pcs 80M
HVDR3560F HVDR3560FW HVDR3560FE HVDR3560FB 35*60 4 6 90~105pcs 78M
HVDR4060F HVDR4060FW HVDR4060FE HVDR4060FB 40*60 4 6 100~115pcs 60M
HVDR4560F HVDR4560FW HVDR4560FE HVDR4560FB 45*60 4 6 110~125pcs 30M
HVDR5060F HVDR5060FW HVDR5060FE HVDR5060FB 50*60 4 6 120~135pcs 60M
HVDR6060F HVDR6060FW HVDR6060FE HVDR6060FB 60*60 4 6 120~135pcs 48M
HVDR8060F HVDR8060FW HVDR8060FE HVDR8060FB 80*60 4 6 180~210pcs 36M
HVDR10060F HVDR10060FW HVDR10060FE HVDR10060FB 100*60 4 6 240~290pcs 28M
HVDR11060F HVDR11060FW HVDR11060FE HVDR11060FB 110*60 4 6 250~300pcs 48M
HVDR12060F HVDR12060FW HVDR12060FE HVDR12060FB 120*60 4 6 260~320pcs 48M
HVDR15060F HVDR15060FW HVDR15060FE HVDR15060FB 150*60 4 6 300~360pcs 16M
HVDR2565F HVDR2565FW HVDR2565FE HVDR2565FB 25*65 4 6 40~50pcs 88M
HVDR3365F HVDR3365FW HVDR3365FE HVDR3365FB 33*65 4 6 40~70pcs 80M
HVDR4565F HVDR4565FW HVDR4565FE HVDR4565FB 45*65 4 6 110~120pcs 52M
HVDR6565F HVDR6565FW HVDR6565FE HVDR6565FB 65*65 4 6 180~200pcs 44M
HVDR7265F HVDR7265FW HVDR7265FE HVDR7265FB 72*65 4 6 180~230pcs 42M
HVDR2575F HVDR2575FW HVDR2575FE HVDR2575FB 25*75 4 6 180-210pcs
/
HVDR3575F HVDR3575FW HVDR3575FE HVDR3575FB 35*75 4 6 180-210pcs
/
HVDR5075F HVDR5075FW HVDR5075FE HVDR5075FB 50*75 4 6 180~210pcs 42M
HVDR7575F HVDR7575FW HVDR7575FE HVDR7575FB 75*75 4 6 200~240pcs 40M
HVDR10075F HVDR10075FW HVDR10075FE HVDR10075FB 100*75 4 6 240~280pcs 24M
HVDR2580F HVDR2580FW HVDR2580FE HVDR2580FB 25*80 4 6 100~120pcs 72M
HVDR3080F HVDR3080FW HVDR3080FE HVDR3080FB 30*80 4 6 110~125pcs 56M
HVDR3580F HVDR3580FW HVDR3580FE HVDR3580FB 35*80 4 6 110~130pcs 56M
HVDR4080F HVDR4080FW HVDR4080FE HVDR4080FB 40*80 4 6 140~160pcs 48M
HVDR4580F HVDR4580FW HVDR4580FE HVDR4580FB 45*80 4 6 140~160pcs 40M
HVDR5080F HVDR5080FW HVDR5080FE HVDR5080FB 50*80 4 6 160~180pcs 40M
HVDR5580F HVDR5580FW HVDR5580FE HVDR5580FB 55*80 4 6 160~180pcs 32M
HVDR6080F HVDR6080FW HVDR6080FE HVDR6080FB 60*80 4 6 180~210pcs 32M
HVDR8080F HVDR8080FW HVDR8080FE HVDR8080FB 80*80 4 6 240~290pcs 24M
HVDR10080F HVDR10080FW HVDR10080FE HVDR10080FB 100*80 4 6 260~350pcs 24M
HVDR12080F HVDR12080FW HVDR12080FE HVDR12080FB 120*80 4 6 280~380pcs 16M
HVDR14080F HVDR14080FW HVDR14080FE HVDR14080FB 140*80 4 6 350~450pcs 16M
HVDR16080F HVDR16080FW HVDR16080FE HVDR16080FB 160*80 4 6 50-550pcs
/
HVDR25100F HVDR25100FW HVDR25100FE HVDR25100FB 25*100 4 6 110~160pcs 60M
HVDR33100F HVDR33100FW HVDR33100FE HVDR33100FB 33*100 4 6 130~175pcs 44M
HVDR40100F HVDR40100FW HVDR40100FE HVDR40100FB 40*100 4 6 130~175pcs 40M
HVDR50100F HVDR50100FW HVDR50100FE HVDR50100FB 50*100 4 6 220~250pcs 40M
HVDR60100F HVDR60100FW HVDR60100FE HVDR60100FB 60*100 4 6 240~290pcs 32M
HVDR70100F HVDR70100FW HVDR70100FE HVDR70100FB 70*100 4 6 250~310pcs 24M
HVDR75100F HVDR75100FW HVDR75100FE HVDR75100FB 75*100 4 6 260~350pcs 24M
HVDR80100F HVDR80100FW HVDR80100FE HVDR80100FB 80*100 4 6 260~350pcs 24M
HVDR100100F HVDR100100FW HVDR100100FE HVDR100100FB 100*100 4 6 300~400pcs 24M
HVDR120100F HVDR120100FW HVDR120100FE HVDR120100FB 120*100 4 6 350~450pcs 16M
HVDR150100F HVDR150100FW HVDR150100FE HVDR150100FB 150*100 4 6 400~650pcs 16M
HVDR150130F HVDR150130FW HVDR150130EF HVDR150130FB 150*130 4 6 400~650pcs 16M
HVDR160100F HVDR160100FW HVDR160100FE HVDR160100FB 160*100 4 6 500-750pcs
/
HVDR100130F HVDR100130FW HVDR100130FE HVDR100130FB 100*130 4 6 350-450pcs
/
HVDR200100F HVDR200100FW HVDR200100FE HVDR200100FB 200*100 4 6 600~800pcs 16M
HVDR200150F HVDR200150FW HVDR200150FE HVDR200150FB 200*150 4 6 900-1200pcs 16M
HVDR200200F HVDR200200FW HVDR200200FE HVDR200200FB 200*200 4 6 1200-1600pcs 16M
