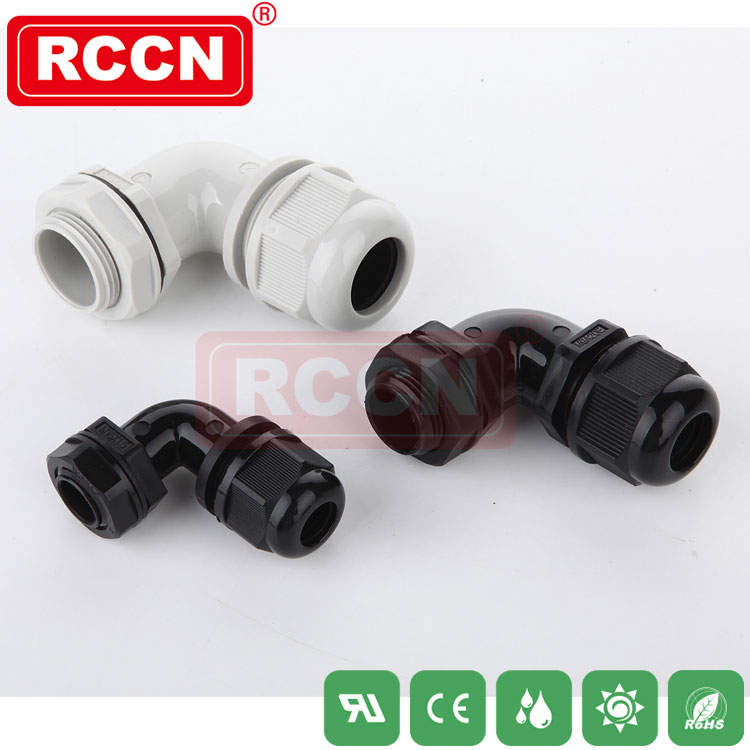

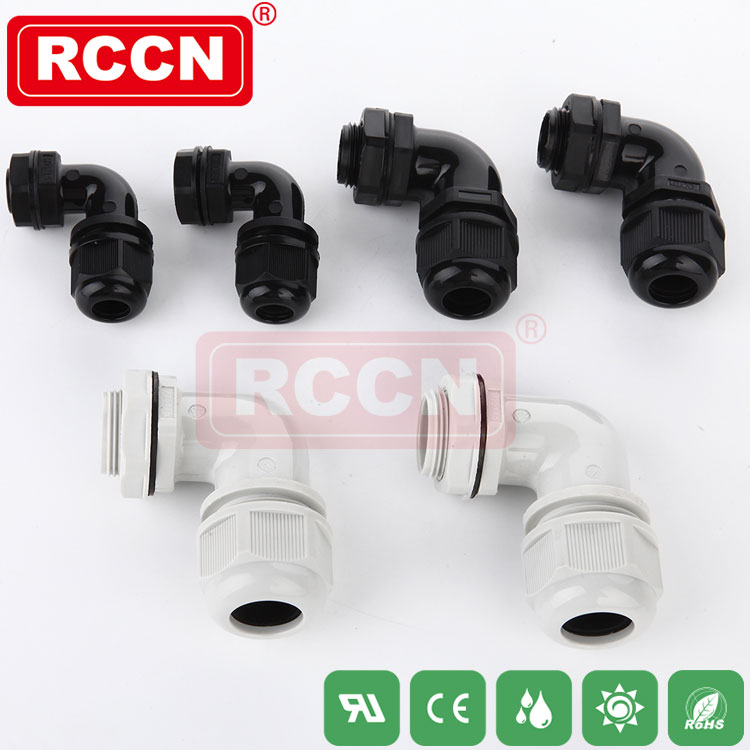

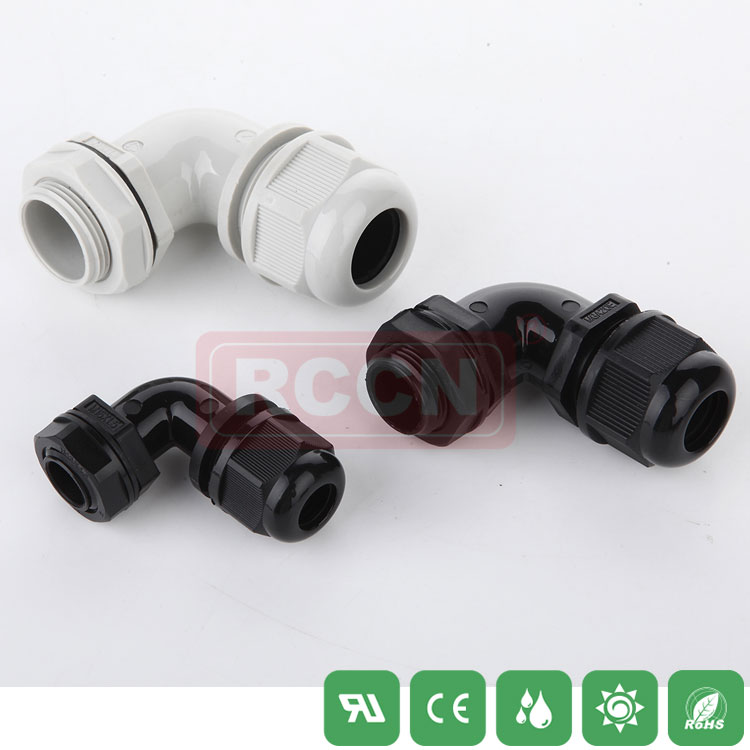

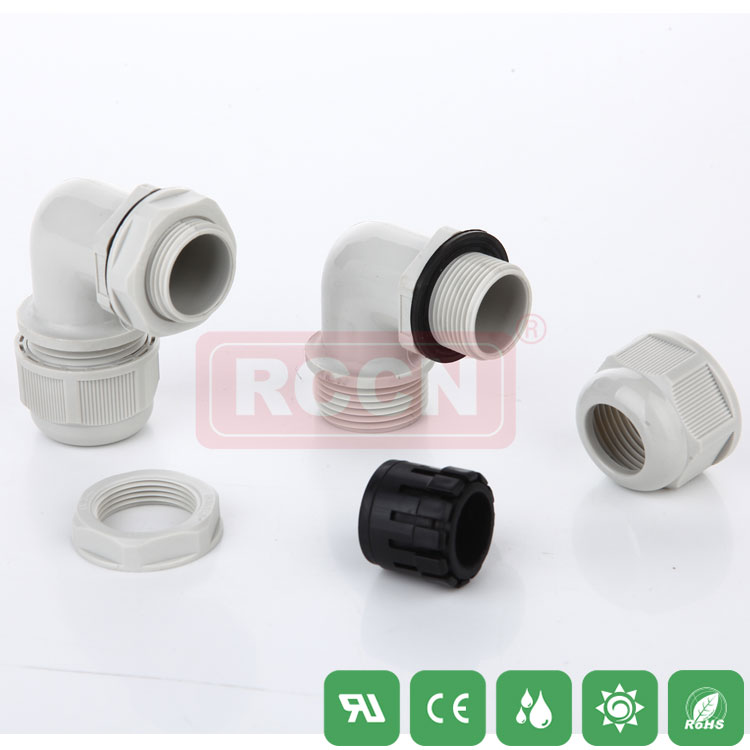

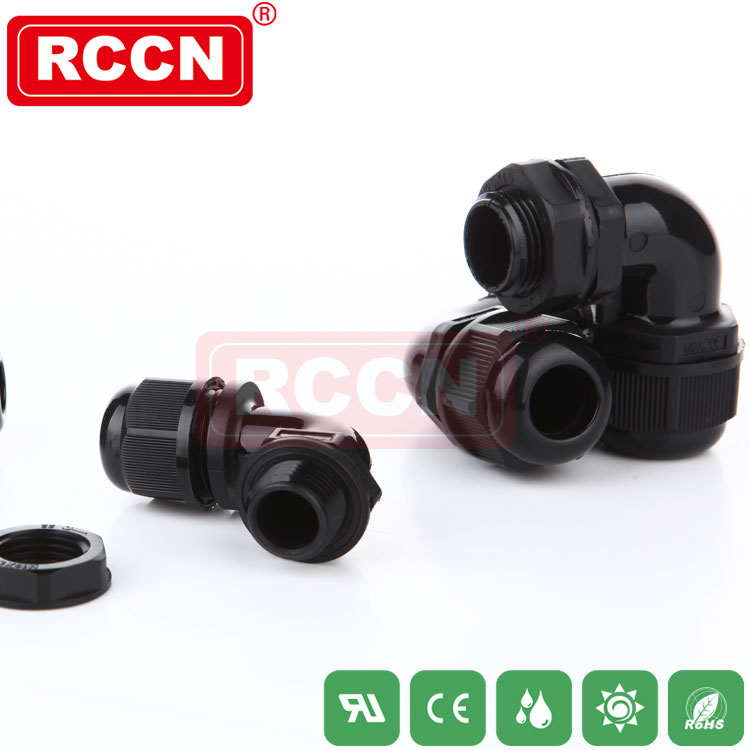

RCCN Cable Gland MGE

Nylon Cable Gland

Thread:Metric

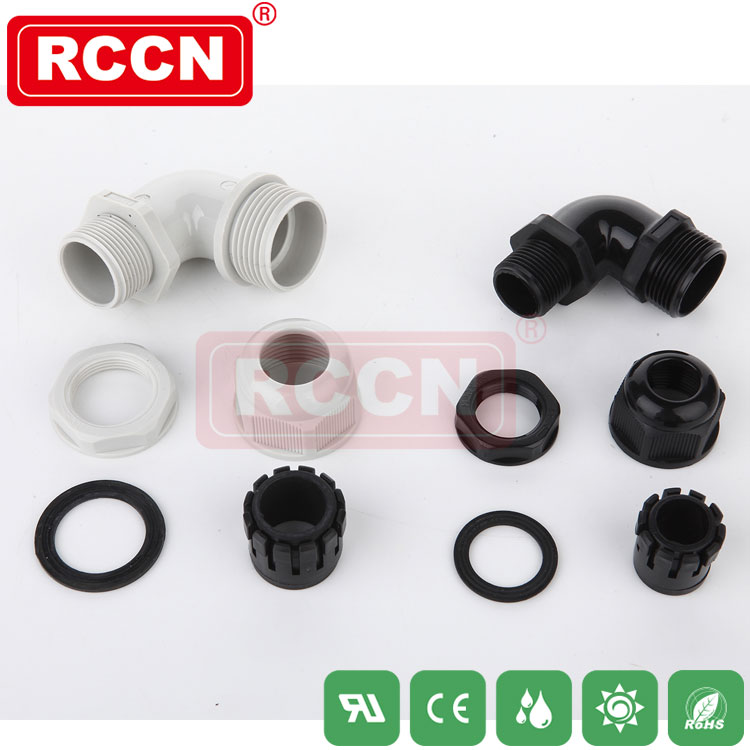

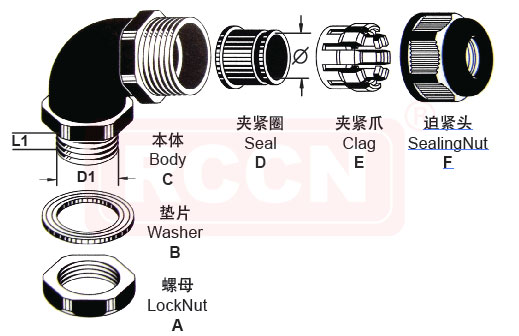

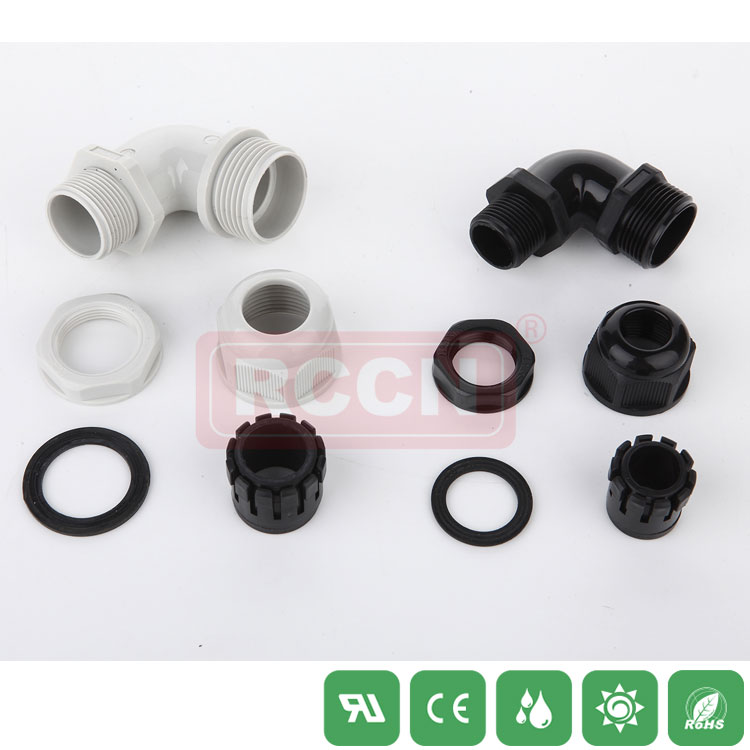

Material:A.C.E.F made of NYLON66, B.D made of EPDM
Certificates:CE, SGS,REACH。
Fireproof:UL94V-2。
Operate Temperature:-40°C to 85°C。
Protect:IP68。
Color:light gray(RAL7035)、black(RAL9005)

Nylon Cable Gland

Specification

Item No.		Thread	CableRange Φ	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Spanner size A&F	Std.Pkg pcs
Black	White	Thread	CableRange Φ	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Spanner size A&F	Std.Pkg pcs
MG16EA-07B	MG16EA-07G	M16*1.5	4-7	16	16-16.3	10	22/22	50PCS
MG16EA-10B	MG16EA-10G	M16*1.5	6-10	16	16-16.3	10	22/22
MG20EA-11B	MG20EA-11G	M20*1.5	6-11	20	20-20.3	15	27/27
MG20EA-14B	MG20EA-14G	M20*1.5	9-14	20	20-20.3	15	27/27
