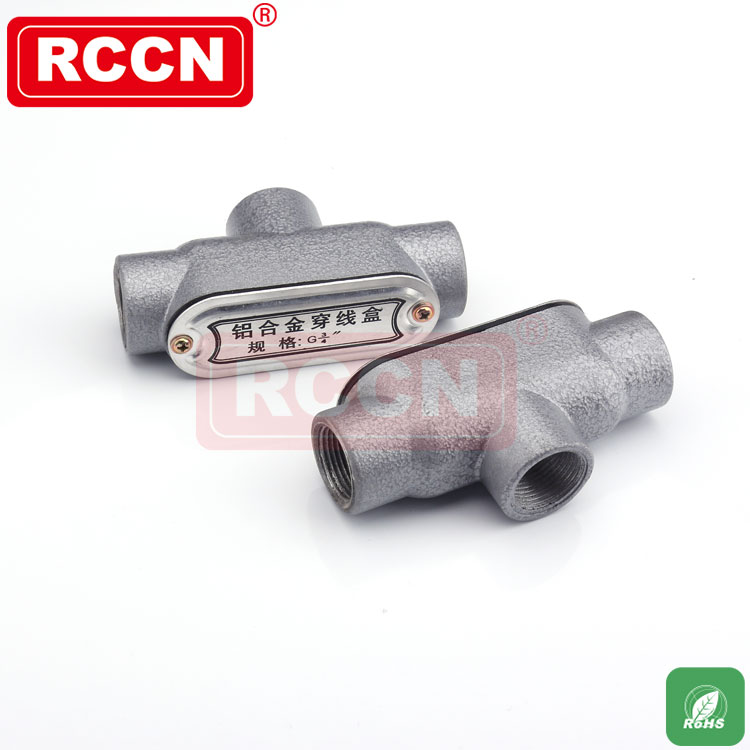

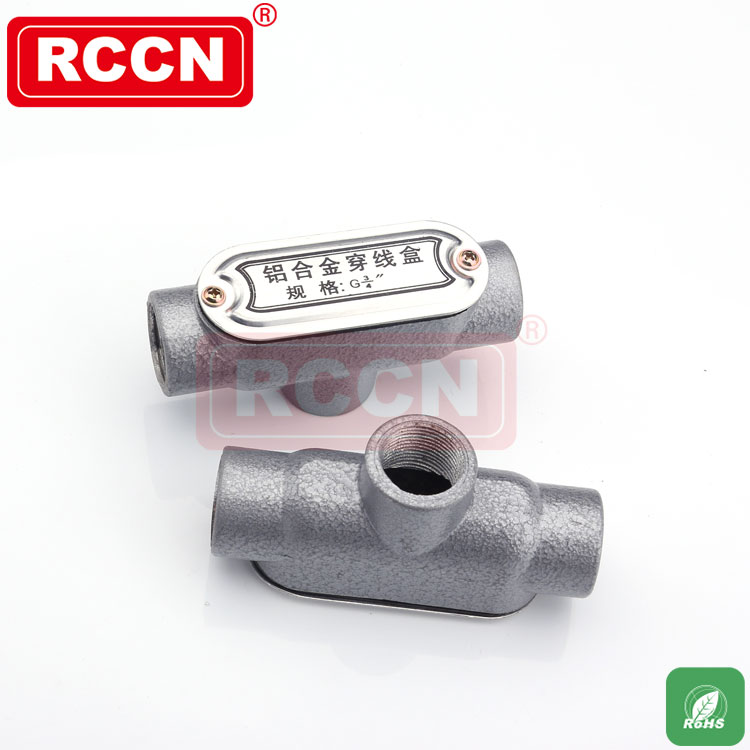

RCCN Pull Box PB-BT

Pull Box

Material:Aluminium metal
Features:1.can be connected with outer thread rigid conduit directly
2.usded with RCCN NBG-G connectors amd ,MCR flexible conduit

Pull Box Junction Box

Specification

Item No.	Specification	L mm	B mm	H mm	Packing
PB-BT-G1/2	1/2''	115	34	47	5PCS
PB-BT-G3/4	3/4''	135	38	58
PB-BT-G1	1''	152	46	70
PB-BT-G1-1/4	11/4''	180	54	80
PB-BT-G1-1/2	11/2''	190	58	86
PB-BT-G2	2''	245	74	104
PB-BT-G2-1/2	2 1/2''	265	93	135
PB-BT-G3	3''	280	108	150
PB-BT-G4	4''	300	132	170
