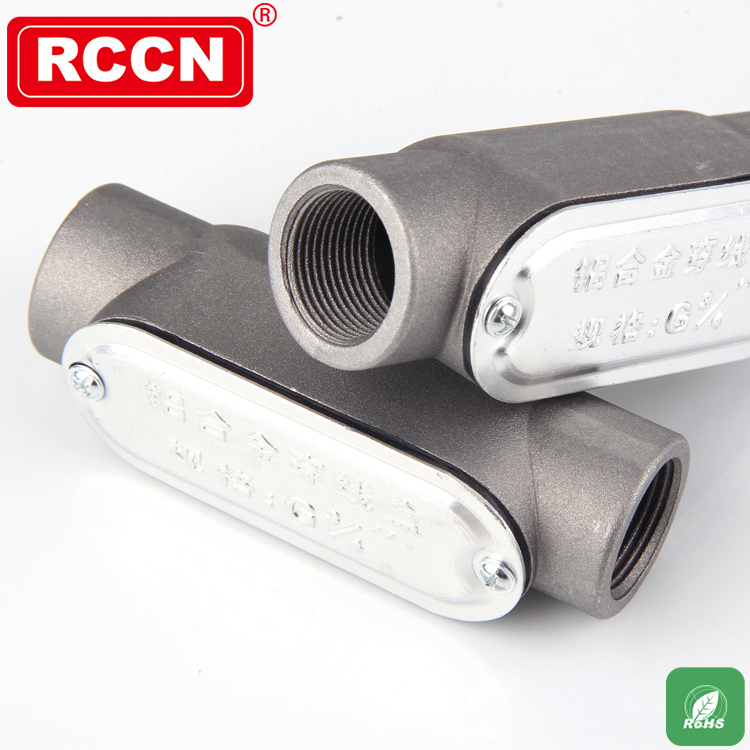

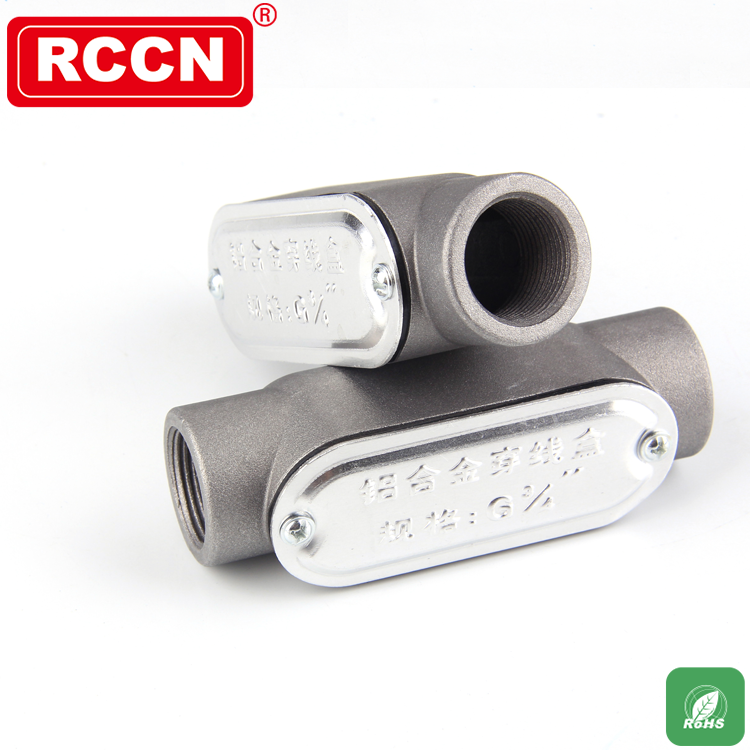

RCCN Pull Box PB-C

Pull Box

Material:Aluminium metal
Features:1.can be connected with outer thread rigid conduit directly
2.usded with RCCN NBG-G connectors amd ,MCR flexible conduit

Pull Box Junction Box

Specification

Item No.	Specification	L mm	B mm	H mm	Packing
PB-C-G1/2	1/2''	118	34	41	5PCS
PB-C-G3/4	3/4''	135	38	48
PB-C-G1	1''	152	45	52
PB-C-G1-1/4	11/4''	180	54	66
PB-C-G1-1/2	11/2''	190	58	70
PB-C-G2	2''	252	74	82
PB-C-G2-1/2	2 1/2''	265	93	110
PB-C-G3	3''	280	108	120
PB-C-G4	4''	300	132	140
