RCCN Nylon Drag chain JF

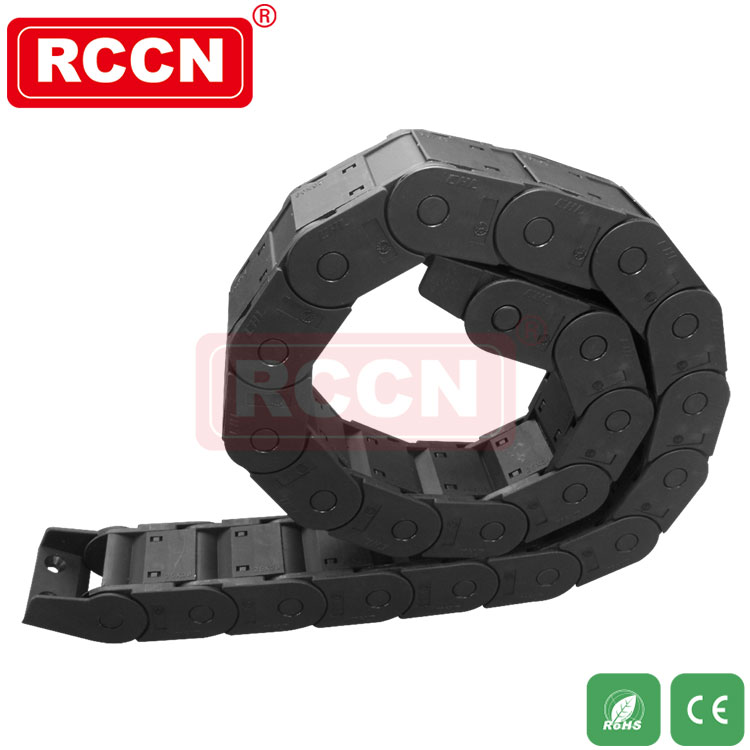

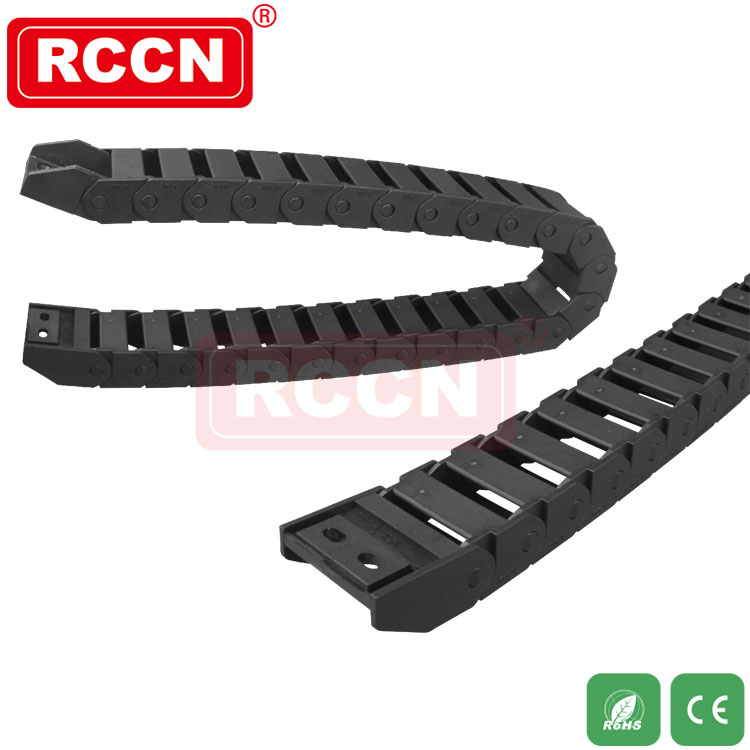

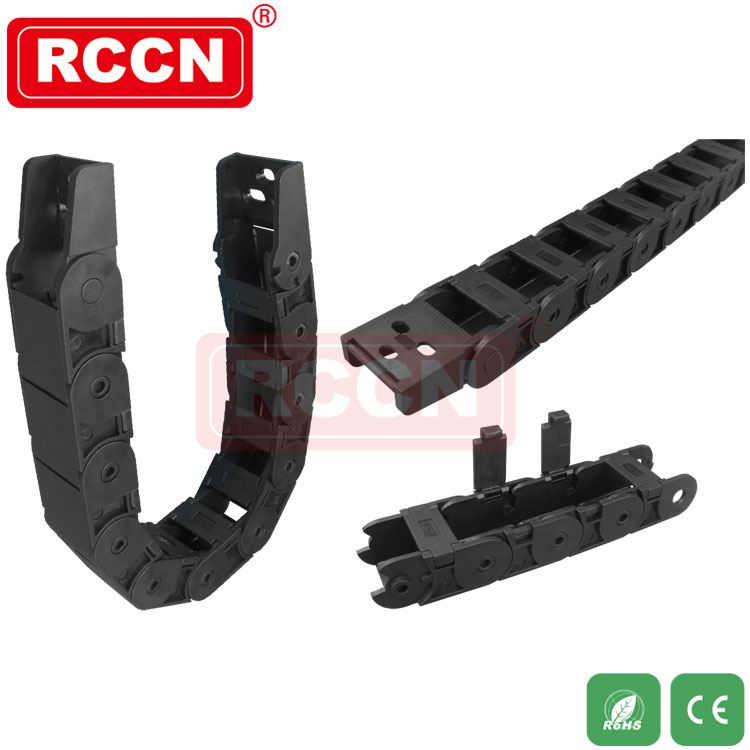

Nylon Drag chain

Nylon plastic drag chain protection is introduced

Material:nylon 66,punching resistant,high strength
Features:1, used the place of in to-and-fro, protect and conduct inside cables,oild tube, gax tube Water tube
              2, every burl can be opened, convenient to instand and amend, low noise when operating, abrasion resistant,
                 moving in high speed
Using: cable chain is used widely in index control machines,electric equipment,fir control machines, stone-processing
machines, glass-processing machines, door and windows processing machines, extruding machines, machine hands,
super transport equipment,auto. warehouse
Nylon Drag chainWiring Duct

Specification


Item No.

Inner height×Inner width/
Outer height×Outer width
Burl instance/
burl no.
per meter
Bending
radius
Type
JF0707-15B 7*7/10*12.5 16.7/58 15 Locking
JF0707-28B 7*7/10*12.5 16.7/58 28
JF1006-18F 10*6/13.5*13.5 20/50 28 Easy
installing type
JF1010-18B 10*10/15*16.5 15/66 18 Locking
JF1010-28B 10*10/15*16.5 15/66 28
JF1015-28B 10*15/15*20 20/50 28 Locking
JF1015-38B 10*15/15*20 20/50 38
JF1015-18BFB 10*15/15*20 20/50 18 Half sealed
Locking
JF1015-28BFB 10*15/15*20 20/50 28
JF1020-18B 10*20/15.5*28.5 20/50 18 Locking
JF1020-28B 10*20/15.5*28.5 20/50 28
JF1020-28BFB 10*20/15.5*28.5 20/50 28 Half sealed
Locking
JF1020-38BFB 10*20/15.5*28.5 20/50 38
JF1520-28B 15*20/20*28.5 20/50 28 Locking
JF1520-38B 15*50/20*58.5 20/50 38
JF1530-28B 15*30/20*38.5 20/50 28
JF1515-28BFN 15*15/20*20 20/50 28 Outer sealed
Opening
inside
JF1520-28BFN 15*20/20*28.5 20/50 28
JF1520-38BFN 15*20/20*28.5 20/50 38
JF1530-28BFN 15*30/20*38.5 20/50 28
JF1530-38BFN 15*30/20*38.5 20/50 38
JF1540-28BFN 15*40/20*48.5 20/50 28
JF1540-38BFN 15*40/20*48.5 20/50 38
JF1550-28BFN 15*50/20*58.5 20/50 28
JF1550-48BFN 15*50/20*58.5 20/50 48
JF1825-38B 18*25/23*36 30.5/33 38 Locking
JF1825-48B 48
JF1825-75B 75
JF1825-38W 18*25/23*36 30.5/30 38 Opening
outside
JF1825-48W 48
JF1825-75W 75
JF1825-100W 100
JF1837-38B 18*37/23*47 30.5/33 38 Locking
JF1837-48B 48
JF1837-75B 75
JF1818-28BFN 18*18/23.5*36 33.5/30 28 Outer sealed
Opening
inside
JF1818-38BFN 38
JF1818-48BFN 48
JF1825-28BFN 18*25/23.5*36 33.5/30 28
JF1825-38BFN 38
JF1825-48BFN 48
JF1825-75BFN 75



Item No.

Inner height×Inner width/
Outer height×Outer width
Burl instance/
burl no.
per meter
Bending
radius
Type
JF1837-38BFN 18*37/23*47 33.5/30 38 Outer sealed
Opening
inside
JF1837-48BFN 18*37/23*47 33.5/30 48
JF1850-38BFN 18*37/23*62 33.5/30 38
JF1850-48BFN 48
JF1850-75BFN 75
JF2525-55S 25*25/35*35 46/22 55 Opening
double side
JF2525-75S 75
JF2525-100S 100
JF2525-125S 125
JF2525-150S 150
JF2525-175S 175
JF2525-200S 200
JF2538-55S 25*38/35*51 46/22 55
JF2538-75S 75
JF2538-100S 100
JF2538-125S 125
JF2538-150S 150
JF2538-175S 175
JF2538-200S 200
JF2538-55N 25*38/35*51 46/22 55 Body
connecting
inside
opeing type
JF2538-75N 75
JF2538-100N 100
JF2538-125N 125
JF2538-150N 150
JF2538-175N 175
JF2538-200N 200
JF2557-55S 25*57/35*71 46/22 55 Opening
double side
JF2557-75S 75
JF2557-100S 100
JF2557-125S 125
JF2557-150S 150
JF2557-175S 175
JF2557-200S 200
JF2577-55S 25*77/35*91 46/22 55
JF2577-75S 75
JF2577-100S 100
JF2577-125S 125
JF2577-150S 150
JF2577-175S 175
JF2577-200S 200
JF2525-75SD 25*25/36*35 46/22 75 Opening
double side
low noice
JF2538-75SD 25*38/36*55 46/22 75
JF2557-75SD 25*57/36*74 46/22 75
JF2577-75SD 25*77/36*94 46/22 75


Item No.

Inner height×Inner width/
Outer height×Outer width
Burl instance/
burl no.
per meter
Bending
radius
Type
JF2525-55FS 25*25/35*35 46/22 55 Opening
double side
JF2525-75FS 75
JF2525-100FS 100
JF2525-125FS 125
JF2525-150FS 150
JF2525-175FS 175
JF2525-200FS 200
JF2538-55FS 25*38/35*51 46/22 55 Whole
sealed
opening
type
JF2538-75FS 75
JF2538-100FS 100
JF2538-125FS 125
JF2538-150FS 150
JF2538-175FS 175
JF2538-200FS 200
JF2557-55FS 25*57/35*71 46/22 55
JF2557-75FS 75
JF2557-100FS 100
JF2557-125FS 125
JF2557-150FS 150
JF2557-175FS 170
JF2557-200FS 200
JF2577-55FS 25*77/35*91 46/22 55
JF2577-75FS 75
JF2577-100FS 100
JF2577-125FS 125
JF2577-150FS 150
JF2577-175FS 175
JF2577-200FS 200
JF2538-55NS 25*38/35*55 46/22 55 Reinforced
opening
type
JF2538-75NS 75
JF2538-100NS 100
JF2538-125NS 125
JF2557-55NS 25*57/35*74 46/22 55
JF2557-75NS 75
JF2557-100NS 100
JF2557-125NS 125
JF2577-55NS 25*77/35*94 46/22 55
JF2577-75NS 75
JF2577-100NS 100
JF2577-125NS 125
JF2538-55NFS 25*38/35*55 46/22 55
JF2538-75NFS 75
JF2538-100NFS 100
JF2538-125NFS 125



Item No.

Inner height×Inner width/
Outer height×Outer width
Burl instance/
burl no.
per meter
Bending
radius
Type
JF2557-55NFS 25*57/35*74 46/22 55 Reinforced
whole sealed
opening type
JF2557-75NFS 75
JF2557-100NFS 25*77/35*94 46/22 100
JF2557-125NFS 125
JF2577-55NFS 55
JF2577-75NFS 75
JF2577-100NFS 100
JF2577-125NFS 125
JF3038-75NS 30*38/45*55 46/22 75 Reinforced
opening
type
JF3038-100NS 100
JF3038-150NS 150
JF3057-75NS 30*57/45*74 46/22 75
JF3057-100NS 100
JF3057-150NS 30*57/45*74 46/22 150
JF3077-75NS 30*77/45*94 46/22 75
JF3077-100NS 30*77/45*94 46/22 100
JF3077-150NS 150
JF3038-75NFS 30*38/45*55 46/22 75 Reinforced
whole sealed
opening type
JF3038-100NFS 100
JF3038-150NFS 150
JF3057-75NFS 30*57/45*74 46/22 75
JF3057-100NFS 100
JF3057-150NFS 30*57/45*74 46/22 150
JF3077-75NFS 30*77/45*94 46/22 75
JF3077-100NFS 100
JF3077-150NFS 30*77/45*94 46/22 150
JF3550-75S 35*50/50*68 46/22 75 Opening
double side
JF3550-150S 35*50/50*68 46/22 150
JF3575-75W 35*75/50*93 46/22 75 Opening
outside
JF3575-150W 150
JF35100-75S 35*100/50*118 46/22 75 Opening
double side
JF35100-150S 150
JF35125-75S 35*125/50*143 46/22 75
JF35125-150S 150
JF3550-75NS 35*50/50*68 46/22 75 Reinforced
opening
type
JF3550-100NS 100
JF3550-125NS 125
JF3550-150NS 150
JF3550-200NS 200
JF3550-250NS 250



Item No.

Inner height×Inner width/
Outer height×Outer width
Burl instance/
burl no.
per meter
Bending
radius
Type
JF3575-75NS 35*75/55*96 56/17 75 Reinforced
opening
type
JF3575-100NS 100
JF3575-125NS 125
JF3575-150NS 150
JF3575-200NS 200
JF3575-250NS 250
JF35100-75NS 35*100/55*121 56/17 75
JF35100-100NS 100
JF35100-125NS 125
JF35100-150NS 150
JF35100-200NS 200
JF35100-250NS 250
JF35125-75NS 35*125/55*146 56/17 75
JF35125-100NS 100
JF35125-125NS 125
JF35125-150NS 150
JF35125-200NS 200
JF35125-250NS 250
JF35150-75NS 35*150/55*171 56/17 75
JF35150-100NS 100
JF35150-125NS 125
JF35150-150NS 150
JF35150-200NS 200
JF35150-250NS 250
JF35175-75NS 35*175/55*195 56/17 75
JF35175-100NS 100
JF35175-125NS 125
JF35175-150NS 150
JF35175-200NS 200
JF35175-250NS 250
JF35200-75NS 35*200/55*221 56/17 75
JF35200-100NS 100
JF35200-125NS 125
JF35200-150NS 150
JF35200-200NS 200
JF35200-250NS 250
JF3550-75NFS 35*50/50*68 56/17 75 Reinforced
opening
type
JF3550-100NFS 100
JF3550-125NFS 125
JF3550-150NFS 150
JF3550-200NFS 200
JF3550-250NFS 250



Item No.

Inner height×Inner width/
Outer height×Outer width
Burl instance/
burl no.
per meter
Bending
radius
Type
JF3575-75NFS 35*75/55*96 56/17 75 Reinforced
whole sealed
opening type
JF3575-100NFS 100
JF3575-125NFS 125
JF3575-150NFS 150
JF3575-200NFS 200
JF3575-250NFS 250
JF35100-75NFS 35*100/55*121 56/17 75
JF35100-100NFS 100
JF35100-125NFS 125
JF35100-150NFS 150
JF35100-200NFS 200
JF35100-250NFS 250
JF35125-75NFS 35*125/55*146 56/17 75
JF35125-100NFS 100
JF35125-125NFS 125
JF35125-150NFS 150
JF35125-200NFS 200
JF35125-250NFS 250
JF4550-100S 45*50/64*75 67/15 75 Opening
double side
JF4550-125S 100
JF4550-150S 125
JF4550-175S 150
JF4550-200S 200
JF4550-250S 250
JF4550-300S 300
JF4575-100S 45*75/64*100 67/15 75
JF4575-125S 100
JF4575-150S 125
JF4575-175S 150
JF4575-200S 200
JF4575-250S 250
JF4575-300S 300
JF45100-100S 45*100/34*125 67/15 75
JF45100-125S 100
JF45100-150S 125
JF45100-175S 150
JF45100-200S 200
JF45100-250S 250
JF45100-300S 300
JF45125-100S 45*125/64*150 67/15 75
JF45125-125S 100
JF45125-150S 125
JF45125-175S 150
JF45125-200S 200
JF45125-250S 250



Item No.

Inner height×Inner width/
Outer height×Outer width
Burl instance/
burl no.
per meter
Bending
radius
Type
JF45150-100S 45*150/64*175 67/15 100 Opening
double side
JF45150-125S 125
JF45150-150S 150
JF45150-175S 175
JF45150-200S 200
JF45150-250S 250
JF45150-300S 300
JF45175-100S 45*175/64*200 67/15 100
JF45175-125S 125
JF45175-150S 150
JF45175-175S 175
JF45175-200S 200
JF45175-250S 250
JF45175-300S 300
JF45200-100S 45*200/64*225 67/15 100
JF45200-125S 125
JF45200-150S 150
JF45200-175S 175
JF45200-200S 200
JF45200-250S 250
JF45200-300S 300
JF4575-100NFS 45*75/64*100 67/15 100 Reinforced
whole sealed
opening type
JF4575-125NFS 125
JF4575-150NFS 150
JF4575-175NFS 175
JF4575-200NFS 200
JF4575-250NFS 250
JF4575-300NFS 300
JF45100-100NFS 45*100/64*125 67/15 100
JF45100-125NFS 125
JF45100-150NFS 150
JF45100-17NFS 175
JF45100-200NFS 200
JF45100-250NFS 250
JF45100-300NFS 300
JF45125-100NFS 45*125/64*150 67/15 100
JF45125-125NFS 125
JF45125-150NFS 150
JF45125-175NFS 175
JF45125-200NFS 200
JF45125-250NFS 250
JF45125-300NFS 300



Item No.

Inner height×Inner width/
Outer height×Outer width
Burl instance/
burl no.
per meter
Bending
radius
Type
JF45150-100NFS 45*150/64*175 67/15 100 Reinforced
whole sealed
opening type
JF45150-125NFS 125
JF45150-150NFS 150
JF45150-175NFS 175
JF45150-200NFS 200
JF45150-250NFS 250
JF45150-300NFS 300
JF45175-100NFS 45*175/64*200 67/15 100
JF45175-125NFS 125
JF45175-150NFS 150
JF45175-175NFS 175
JF45175-200NFS 200
JF45175-250NFS 250
JF45175-300NFS 300
JF6075-135S 60*75/88*111 91/11 135 Opening
double side
JF6075-150S 150
JF6075-175S 175
JF6075-200S 200
JF6075-250S 250
JF6075-300S 300
JF60100-135S 60*100/88*136 91/11 135
JF60100-150S 150
JF60100-175S 175
JF60100-200S 200
JF60100-250S 250
JF60100-300S 300
JF60150-135S 60*150/88*186 91/11 135
JF60150-150S 150
JF60150-175S 175
JF60150-200S 200
JF60150-250S 250
JF60150-300S 300
JF60200-135S 60*200/88*236 91/11 135
JF60200-150S 150
JF60200-175S 175
JF60200-200S 200
JF60200-250S 250
JF60200-300S 300
JF60300-135S 60*300/88*336 91/11 135
JF60300-150S 150
JF60300-175S 175
JF60300-200S 200
JF60300-350S 250
JF60300-300S 300

Product Show

Download

Related Proudct

More

Product Consulting

Please leave us your message,will contact you soon！
Products *Company Name
*Moblie Telephone Address
ＱＱ Wechat *Email
Message


Product Wiring Duct >
On-line
contact
message
download
Print
WeChat WeChat
Collection
TOP
