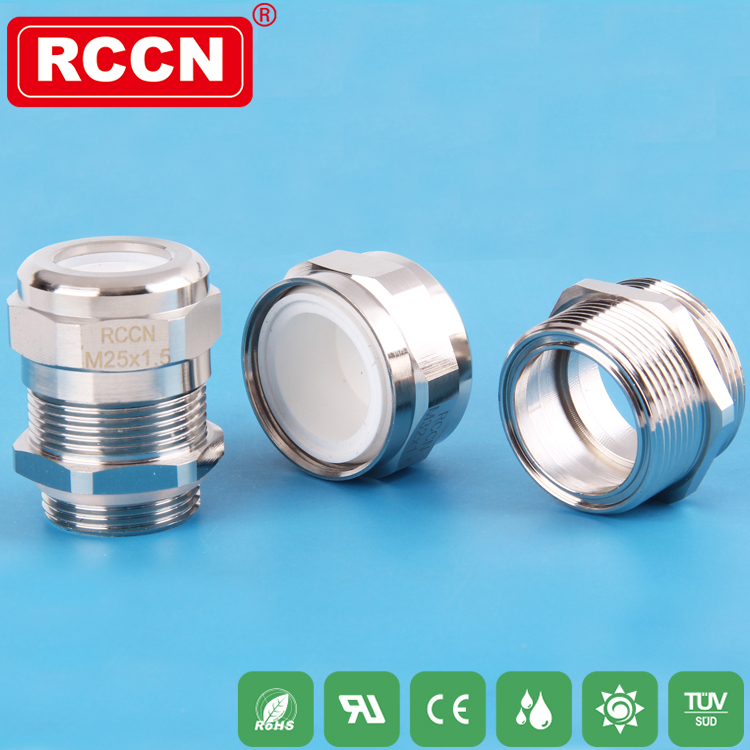

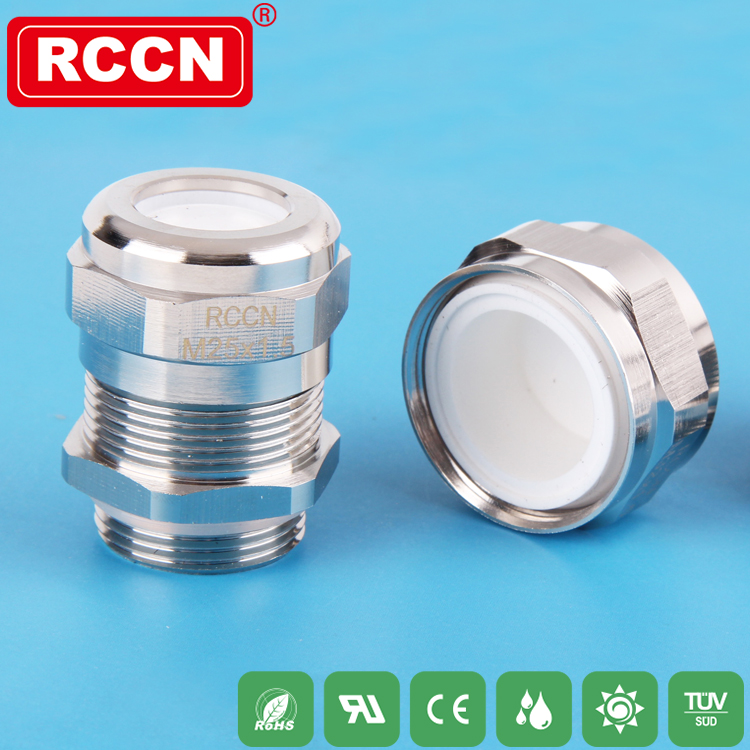

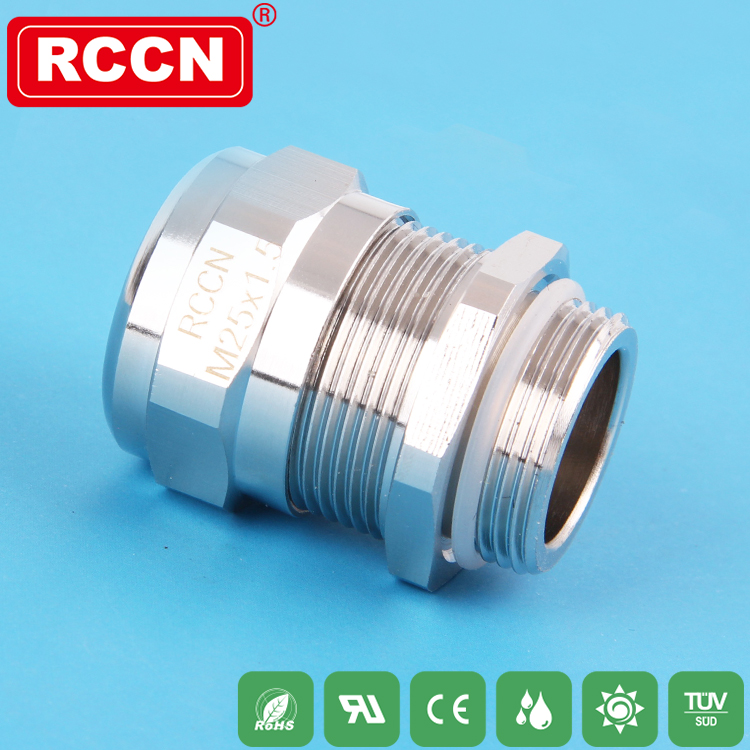

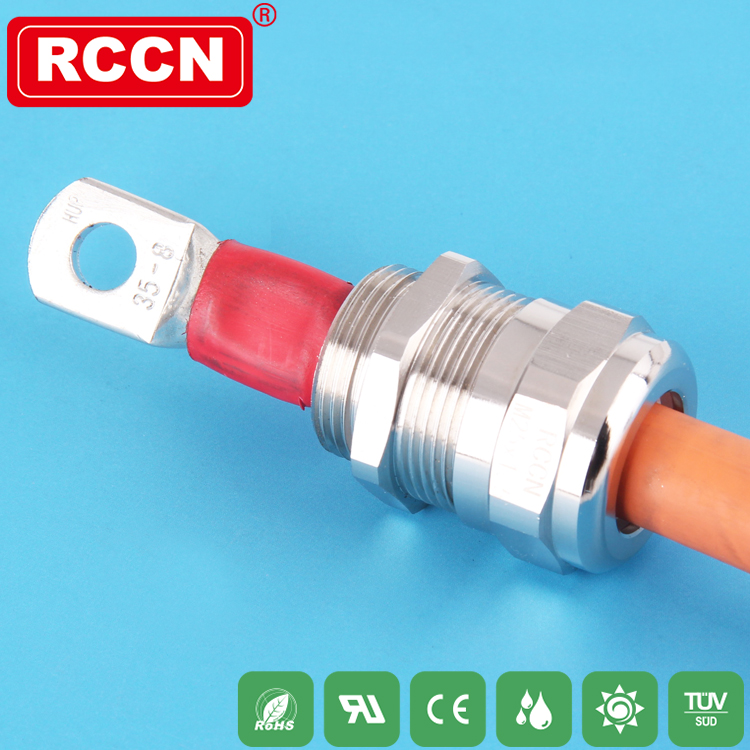

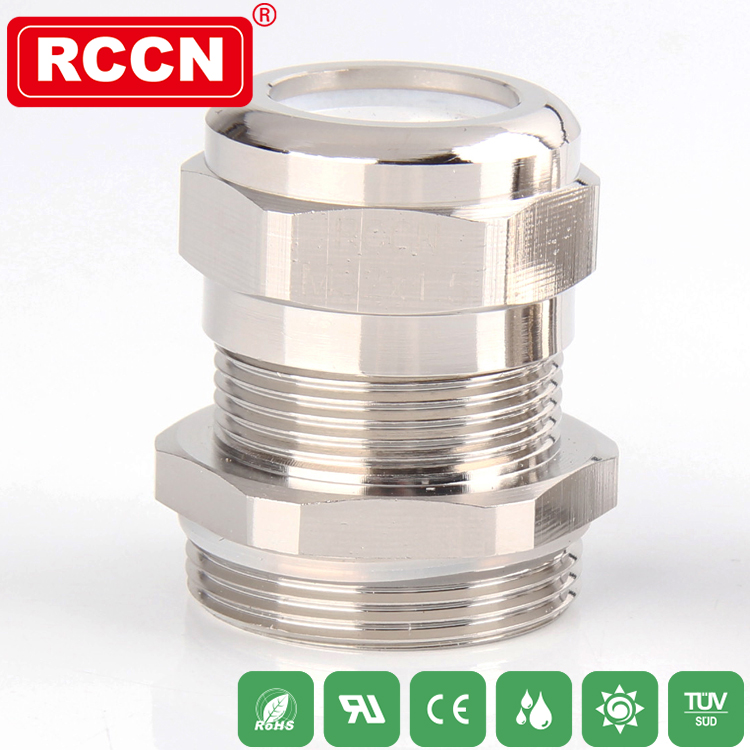

BSM-EMC metal shielded cable waterproof connector

360 degree anti-electromagnetic, conductive strong, excellent performance

Thread Size: Metric ISO thread (EN60423).
Material: C, E parts made of brass nickel plating, D made of stainless steel, B, F made of aging silicone rubber, A made of tetrafluoroethylene.
Product Certification: EX, ROHS
Protection class: within the specified bayonet range, and use the waterproof O-ring and clamping ring tightly tighten the head, to IP68.
Operating temperature: -40 ° C to 150 ° C.
Flame retardant rating: 94V-0 (GB / T 2408-2008)
Features: 1. The use of PTFE gasket, rubber and metal surface to reduce the friction, improve the useful life.

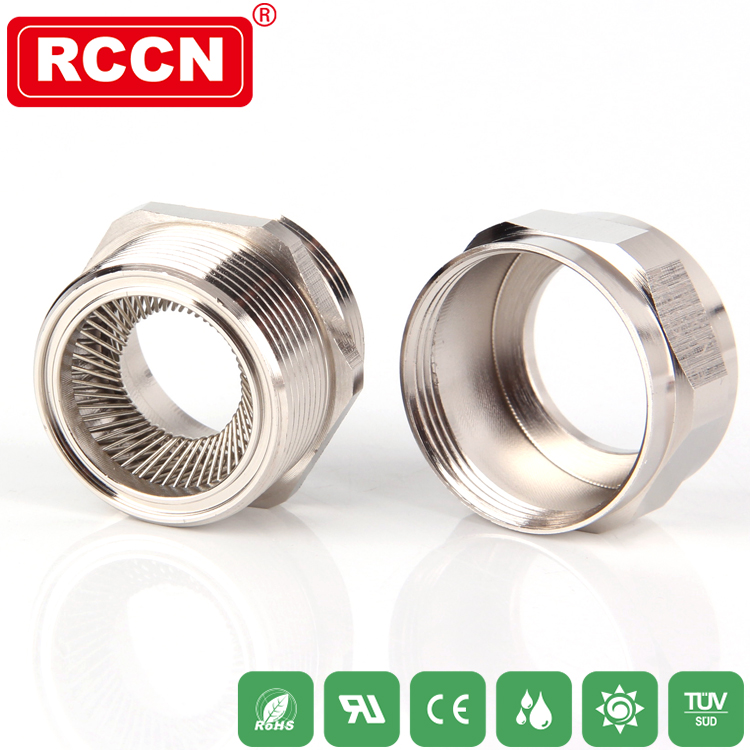

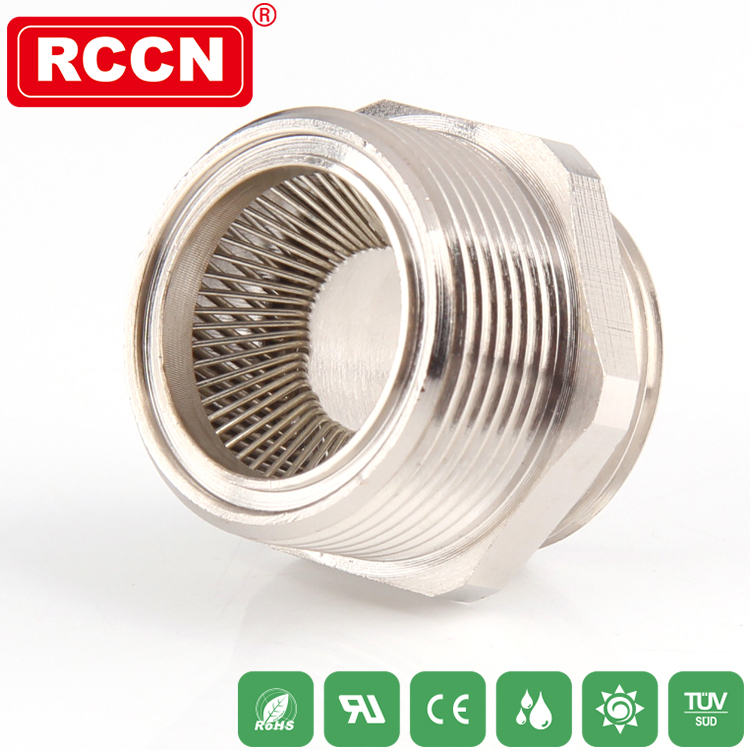

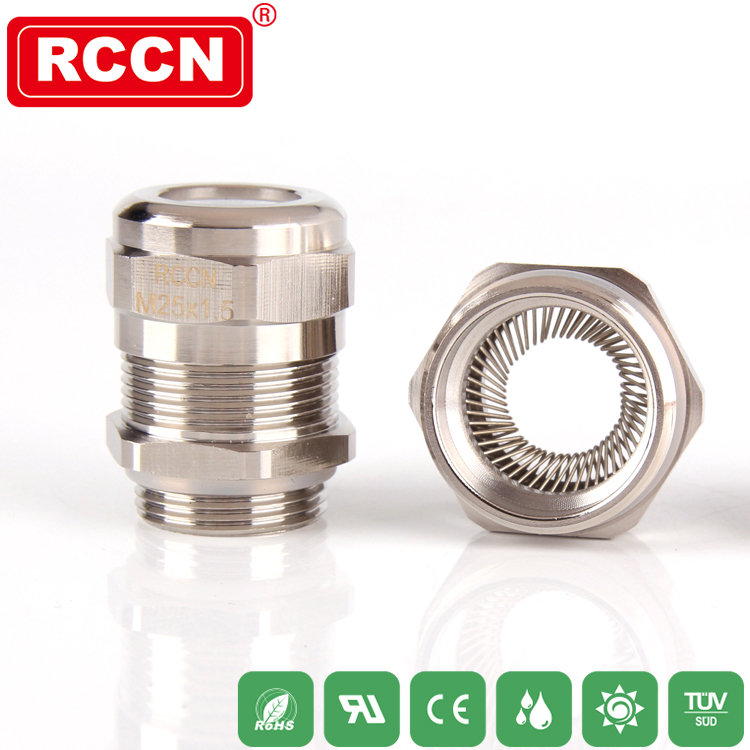

                2. The use of spring shielding, shielding contact surface, the installation of high efficiency.
                3. The internal rubber is made of silica gel to meet the normal operation of the product in the cold weather.
                4. This product to achieve clamping ring and cable surface contact seal, the cable damage is small, can effectively prevent access to the motor or controller internal.

Specification

BSM-EMC Metal shielded cable waterproof connector

Item No.

Cable

diameter

ΦA

(mm)

Shield effective

range

ΦB

(mm)

Thread

D3

Thread

length

L1

(mm)

Install the reference size

Body

wrench

bit

SW

(mm)

Cap

wrench bit

SW1

(mm)

Applicable

cable


Maximum

terminal

width

Recommended

supporting

terminal
(RCCN model)


L

(mm)

C

(mm)

D

(mm)

E

(mm)

BSM-M25X1.5NEMC(11-16)/V0 11-16 11-16 M25X1.5 8 34 8.4 8.4 24.4 30 30 35mm² 17

SC35-6,SC35-8,HUP35-6,HUP35-8

BSM-M25X1.5NEMC(14-19)/V0 14-19 13-19 M25X1.5 8 34 8.4 8.4 24.4 30 30 50mm² 19

SC50-8,SC50-10,SG50-8

BSM-M30X2.0NEMC(14-19)/V0 14-19 13-19 M30X2.0 8 34 8.4 8.4 24.4 34 30 50mm² 19

SC50-8,SC50-10,SG50-8

BSM-M32X1.5NEMC(14-19)/V0 14-19 13-19 M32X1.5 8 34 8.4 8.4 24.4 34 30 50mm² 19

SC50-8,SC50-10,SG50-8

BSM-M33X2.0NEMC(14-19)/V0 14-19 13-19 M33X2.0 8 34 8.4 8.4 24.4 34 30 70mm² 19

SC70-8,SC70-10,SG70-8,SG70-10

BSM-M32X1.5NEMC(17-21)/V0 17-21 15-21 M32X1.5 8 35 7.4 8.4 25 34 34 70mm² 22

SC70-8,SC70-10,SG70-8,SG70-10

BSM-M33X2.0NEMC(17-21)/V0 17-21 15-21 M33X2.0 8 35 7.4 8.4 25 36 34 70mm² 22

SC70-8,SC70-10,SG70-8,SG70-10

BSM-M32X1.5NEMC(17-21)/D23.5/V0 17-21 17-21 M32X1.5 8 35 7.4 8.4 25 34 34 70mm² 23.5

SC70-8,SC70-10,HUP70-8(有阻力)

BSM-M33X2.0NEMC(17-21)/D23.5/V0 17-21 17-21 M33X2.0 8 35 7.4 8.4 25 34 34 70mm² 23.5

SC70-8,SC70-10,HUP70-8(有阻力)

BSM-EMC-S  Metal Shielded Cable Waterproof connector small model series

Item No.

Cable diameter

ΦA

(mm

Shield effective

range

ΦB

(mm)

Thread


D3


Thread

length

L1

(mm)

Install the referenc size

Body

wrench bit

SW(mm)


Cap

wrench bit

SW1

(mm)

Applicable

cable


Maximum

terminal

width



Recommended

supporting

terminal

(RCCN model)

L

(mm)

E

(mm)

BSM-M20x1.5NEMC(11-16)/V0-S 11-16 11-16 M20X1.5 8 31.5 22.5 26 26 35mm² 16 SC25-6,SC25-8
BSM-M22x1.5NEMC(11-16)/V0-S 11-16 11-16 M22X1.5 8 31.5 22.5 26 26 35mm² 16.5 SC35-6,SC35-8
BSM-M25x1.5NEMC(11-16)/V0-S 11-16 11-16 M25X1.5 8 31.5 22.5 28 26 35mm² 16.5 SC35-6,SC35-8
Note: The above based on the actual use of new energy customers recommended diameter; other customers in accordance with the use of wire diameter, thread specifications and requirements for custom processing.
