RCCN Conduit Fittings NBG-PA

Nylon Flexible Conduit Fittings

Thread Specifications: Metric, G (PF / BSP / PS) teeth and PG teeth.
· Material: UL approved nylon PA66 made (fire rating UL 94V-2).
· Color types: black and gray.
· Working temperature: static -40 ℃ to 100 ℃, or instant heat-resistant to 120 ℃.
· Scope of application: Can be combined with 5/16 "to 2" coated metal hose specifications.

Specification



Product item No:

 Item No Item No. Thread size Thread length Hose Specifications Hose inner diameter Packing
Black Gray D1 L1 φ Sizes Packing
NBG-03MPAB NBG-03MPAG M16*1.5 10 MCR03 10 50
NBG-04MPAB NBG-04MPAG M16*1.5 10 MCR04 13 50
NBG-05MPAB NBG-05MPAG M20*1.5 10 MCR05 16 50
NBG-06MPAB NBG-06MPAG M25*1.5 10 MCR06 20 50
NBG-08MPAB NBG-08MPAG M32*1.5 10 MCR08 25 20
NBG-10MPAB NBG-10MPAG M40*1.5 15 MCR10 32 10
NBG-12MPAB NBG-12MPAG M50*1.5 15 MCR12 38 10
NBG-16MPAB NBG-16MPAG M63*1.5 25 MCR16 51 10
NBG-03PPAB NBG-03PPAG PG16 11 MCR03 10 50
NBG-04PPAB NBG-04PPAG PG16 11 MCR04 13 50
NBG-05PPAB NBG-05PPAG PG16 13 MCR05 16 50
NBG-06PPAB NBG-06PPAG PG21 13 MCR06 20 50
NBG-08PPAB NBG-08PPAG PG29 13 MCR08 25 20
NBG-03GPAB NBG-03GPAG G1/2 15 MCR03 10 50
NBG-04GPAB NBG-04GPAG G1/2 15 MCR04 13 50
NBG-05GPAB NBG-05GPAG G1/2 15 MCR05 16 50
NBG-06GPAB NBG-06GPAG G3/4 15 MCR06 20 50
NBG-08GPAB NBG-08GPAG G1 15 MCR08 25 20
NBG-10GPAB NBG-10GPAG G1-1/4 15 MCR10 32 10
NBG-12GPAB NBG-12GPAG G1-1/2 15 MCR12 38 10
NBG-16GPAB NBG-16GPAG G2 25 MCR16 51 10

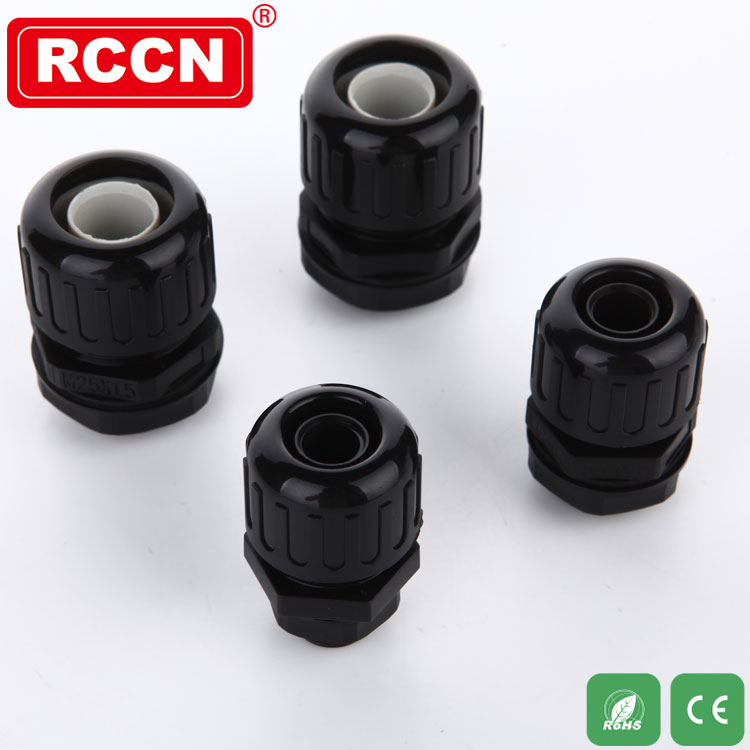

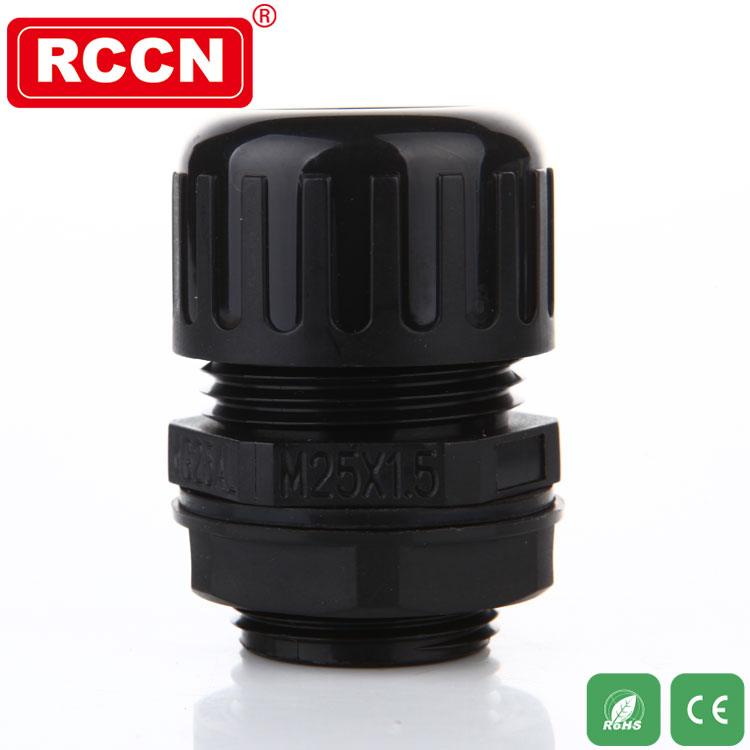

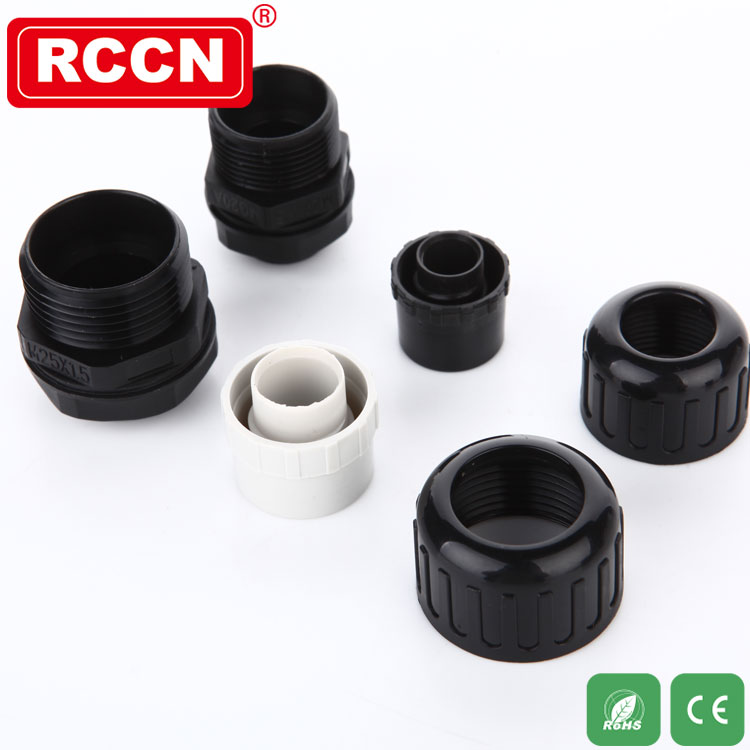

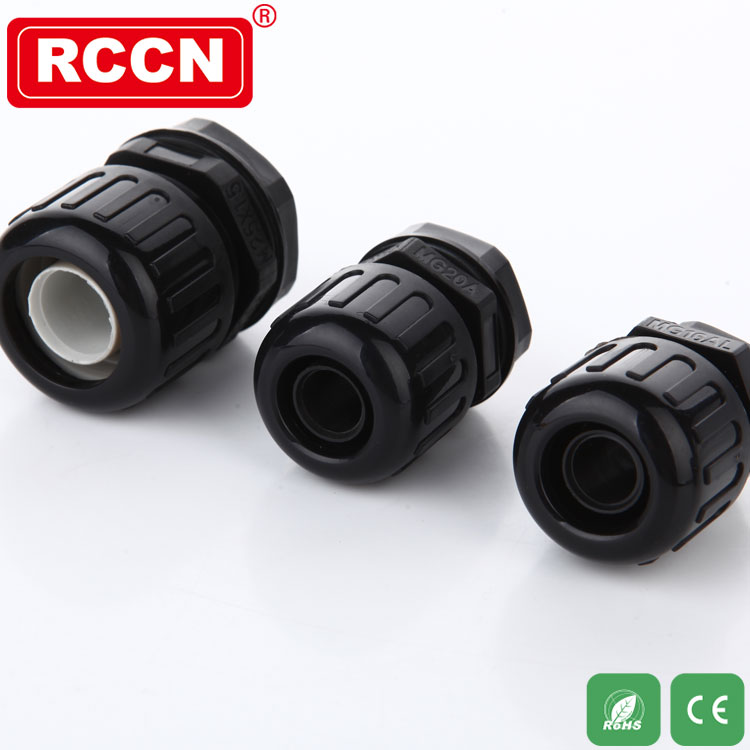

Product Show
