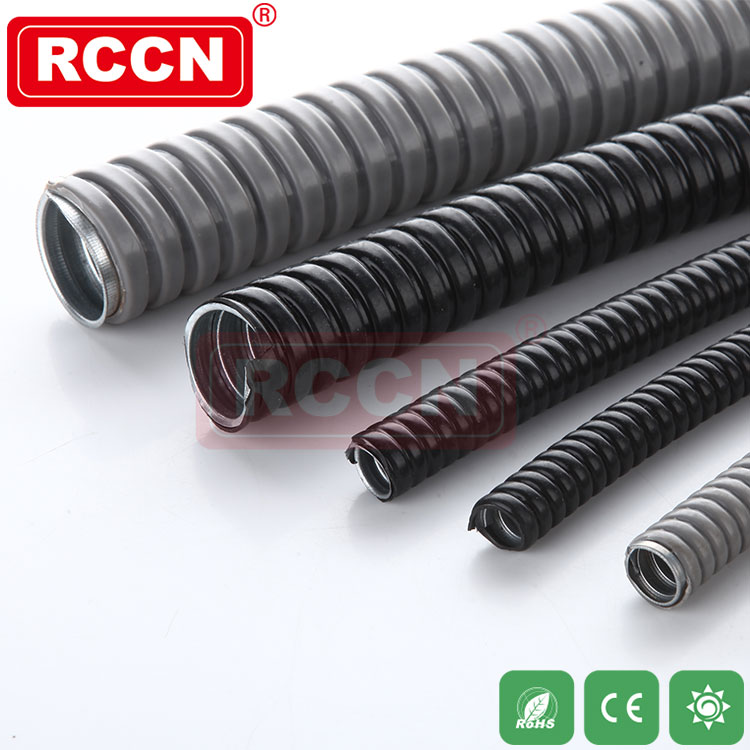

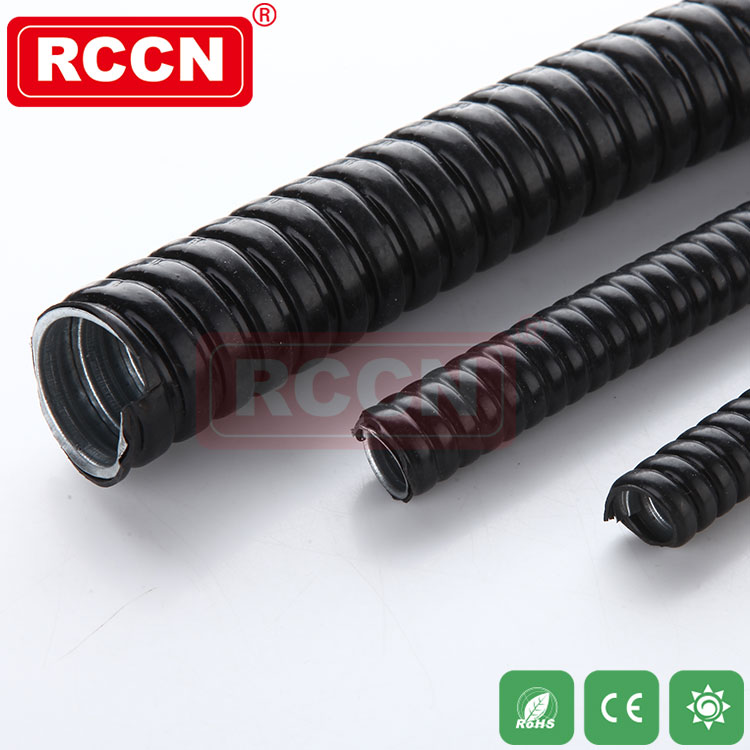

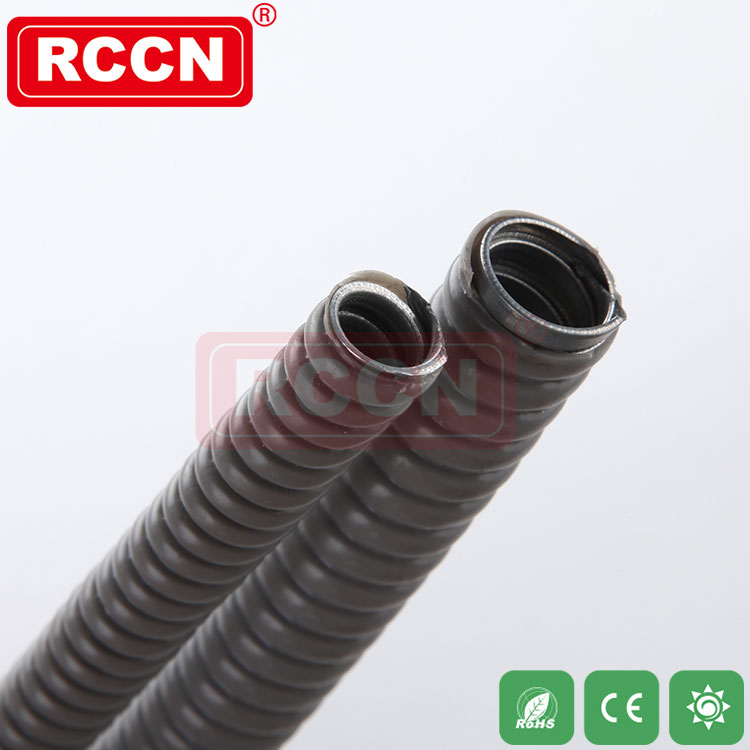

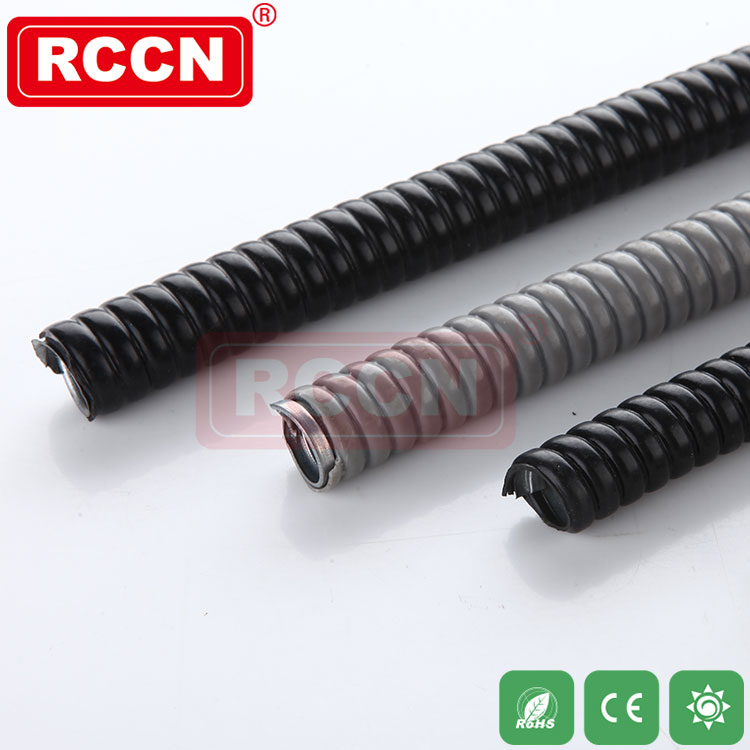

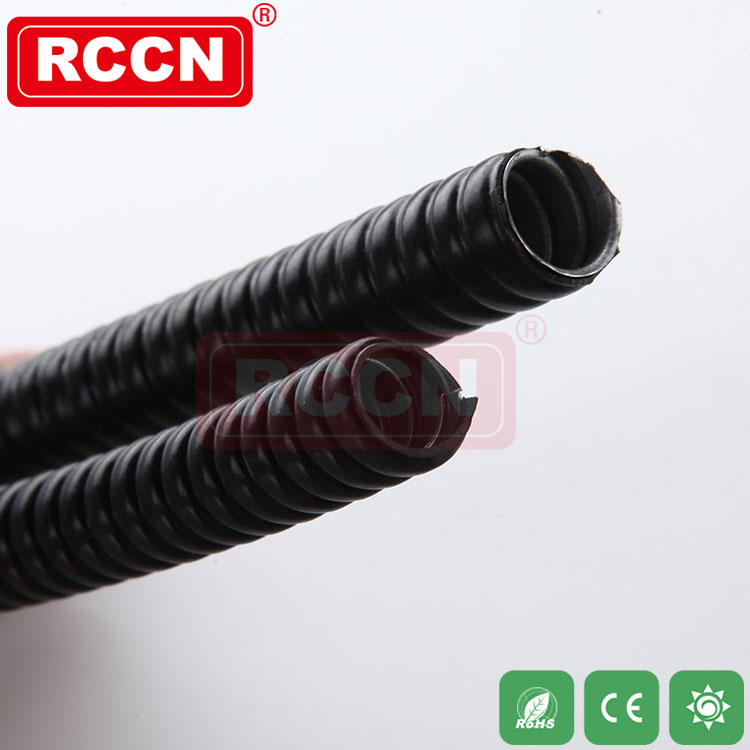

Metal Hose

Material:(inner):zinc coated steel, special insulated processed.
(outer):UL approved PVC
Certificates:C
Fireproof class:UL94V-2, low smoking, poison free
Color:black, gray
Work T.:-10℃ to +80℃,100℃ in a short time
Products Characteristics:1.good waterproof,insulated,retension
2.PVC wrapped，PVC is UV and inflammation resistant
3.uneasy to break and construction changing, for its special design
4.smoonth inside, make the wire and cable install easily
Use domain:railway,communicate project,air-dondition,machines.roboticized
equipments,power plant ships and so on
Use way:insert the cables into the conduit, then fix the correct connectors.

Item No.		Trade Sizes		I.D. d	O.D. D	Bending Radius mm±10%	Suitable metal connector NBG	Packing M
Black	Gray	Metric ø	British	I.D. d	O.D. D	Bending Radius mm±10%	Suitable metal connector NBG	Packing M
MCR-01B	MCR-01G	6	3/16''	6.0±0.3	9.2±0.5	40	NBG-01	100M
MCR-02B	MCR-02G	8	5/16''	8.0±0.3	11.8±0.5	45	NBG-02	100M
MCR-03B	MCR-03G	10	1/4''	10.0±0.3	14.5±0.5	55	NBG-03	100M
MCR-04B	MCR-04G	13	3/8''	12.5±0.3	16.8±0.5	65	NBG-04	100M
MCR-05B	MCR-05G	16	1/2''	15.5±0.3	20.2±0.5	85	NBG-05	100M
MCR-06B	MCR-06G	20	3/4''	20.0±0.3	25.0±0.5	100	NBG-06	50M
MCR-08B	MCR-08G	25	1''	25.0±0.3	30.7±0.5	120	NBG-08	50M
MCR-10B	MCR-10G	32	1 1/4''	32.0±0.3	38.6±0.5	150	NBG-10	25M
MCR-12B	MCR-12G	38	1 1/2''	38.0±1.0	44.6±1.0	180	NBG-12	25M
MCR-16B	MCR-16G	51	2''	51.0±1.0	59.0±1.0	220	NBG-16	10M
MCR-20B	MCR-20G	64	2 1/2''	64.0±1.5	73.5±1.5	310	NBG-20	10M
MCR-24B	MCR-24G	75	3''	75.0±2.0	83.5±2.0	350	NBG-24	10M
MCR-32B	MCR-32G	100	4''	100.0±3.0	109.5±3.0	410	NBG-32	10M
MCR-36B	MCR-36G	125	5''	125.00±3.0	135.5±3.0	460	NBG-36	5M
MCR-38B	MCR-38G	150	6''	150.0±4.0	160.5±4.0	500	NBG-38	5M

Item No.		Trade Sizes		I.D. d	O.D. D	Bending Radius mm±10%	Suitable metal connector NBG	Packing M
Black	Gray	Metric ø	British	I.D. d	O.D. D	Bending Radius mm±10%	Suitable metal connector NBG	Packing M
MCR-03B/HF	MCR-03G/HF	ø 10	1/4"	10.0±0.3	14.0±0.5	55	NBG-03	100M
MCR-04B/HF	MCR-04G/HF	ø 13	3/8"	12.0±0.3	16.3±0.5	65	NBG-04	100M
MCR-05B/HF	MCR-05G/HF	ø 16	1/2"	15.0±0.3	20.2±0.5	85	NBG-05	100M
MCR-06B/HF	MCR-06G/HF	ø 20	3/4"	19.5±0.3	24.5±0.5	100	NBG-06	50M
MCR-08B/HF	MCR-08G/HF	ø 25	1"	25.0±0.3	30.5±0.5	120	NBG-08	50M
MCR-10B/HF	MCR-10G/HF	ø 32	1 1/4"	31.5±0.3	38.0±0.5	150	NBG-10	25M
MCR-12B/HF	MCR-12G/HF	ø 38	1 1/2 "	38.0±1.0	44.6±1.0	180	NBG-12	25M
MCR-16B/HF	MCR-16G/HF	ø 51	2"	50.0±1.0	58.0±1.0	220	NBG-16	10M
