RCCN Lug Terminals FB

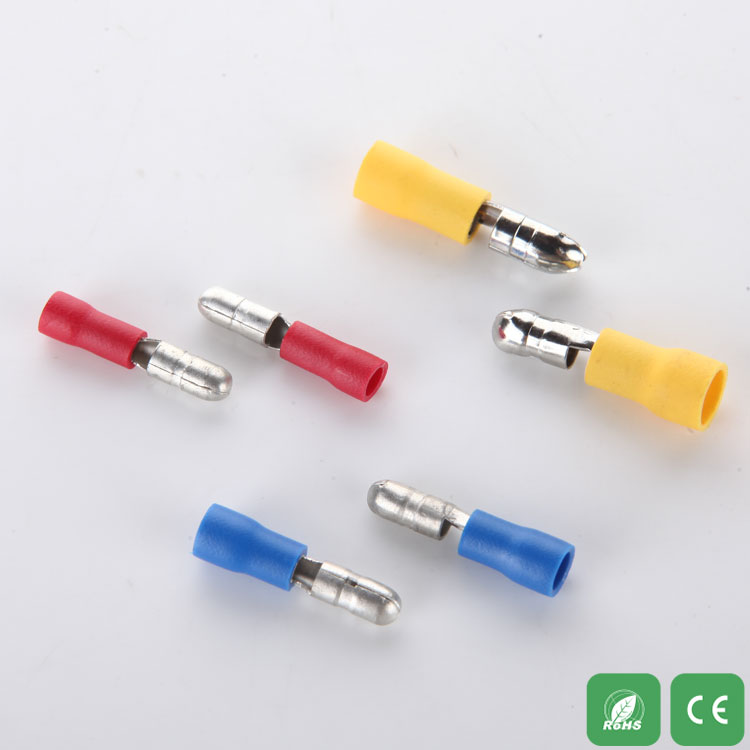

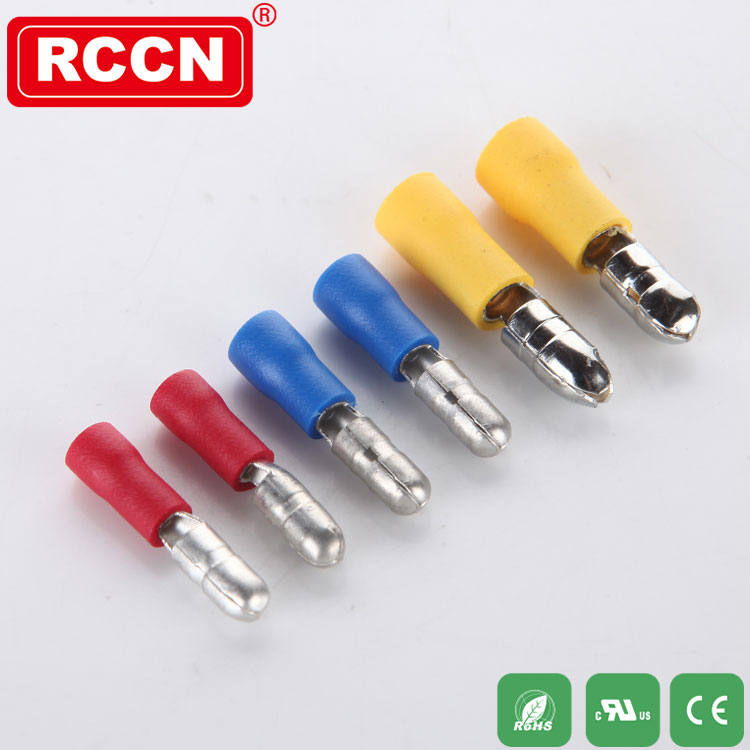

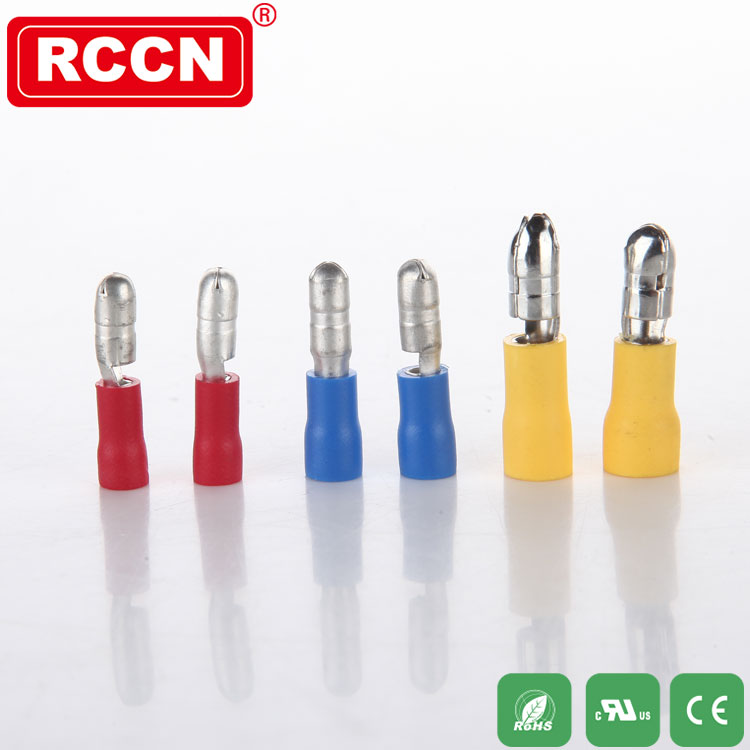

Insulated Bullet Terminals

Material: Terminals made of high quality copper, good conductivity, high-quality
ROHS-PVC jacket system, durability is not easy aging.
Features: high-quality matte plating, anti-rust greatly extended time, no sharp parts;
supporting the day into the terminal clamp to clamp the wire, wiring beautiful,
International Certification: EU RoHS environmental certification, the European CE certification.
Features: high quality, not broken after release loose, -40 degrees to 85 degrees heat-resistant normal use.
Use way: the wire stripped skin, copper wire into the terminal after

Specification

Insulated square:0.5~1.5mm2(22~16) Max. cunrrent:lmax=10A

Item No Thickness
of material
DIMENSION

Color

F d H L
mm mm mm mm mm mm mm
FB1.25-156 0.4 4.0 11.0 3.5 1.7 10.0 21.0

Red

Insulated square:1.5~2.5mm2(16~14) Max. cunrrent:lmax=15A

Item No Thickness
of material
DIMENSION

Color

F d H L
mm mm mm mm mm mm mm
FB2-156 0.4 4.0 11.0 4.0 2.3 10.0 21.0

Blue

FB2-195 0.4 5.0 11.0 4.0 2.3 10.0 21.0

Insulated square:4~6mm2(12~10) Max. cunrrent:lmax=24A

Item No Thickness
of material
DIMENSION

Color

F d H L
mm mm mm mm mm mm mm
FB5.5-195 0.4 4.0 11.0 5.0 3.4 14.0 25.0

Yellow
