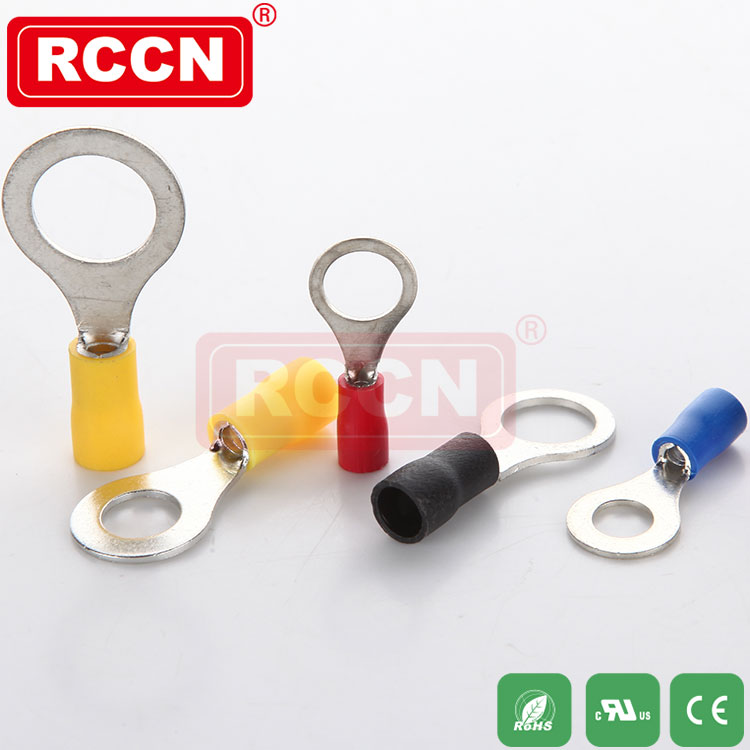

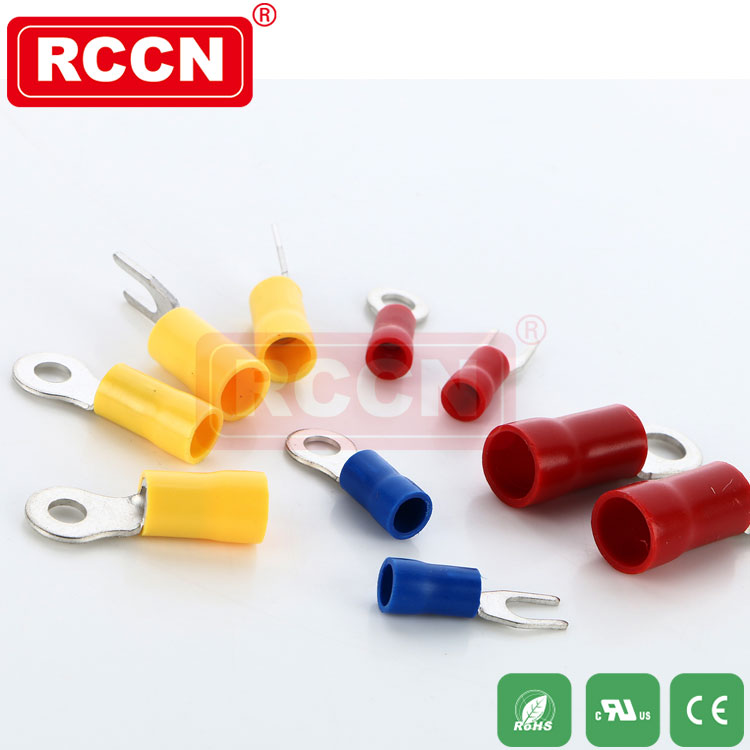

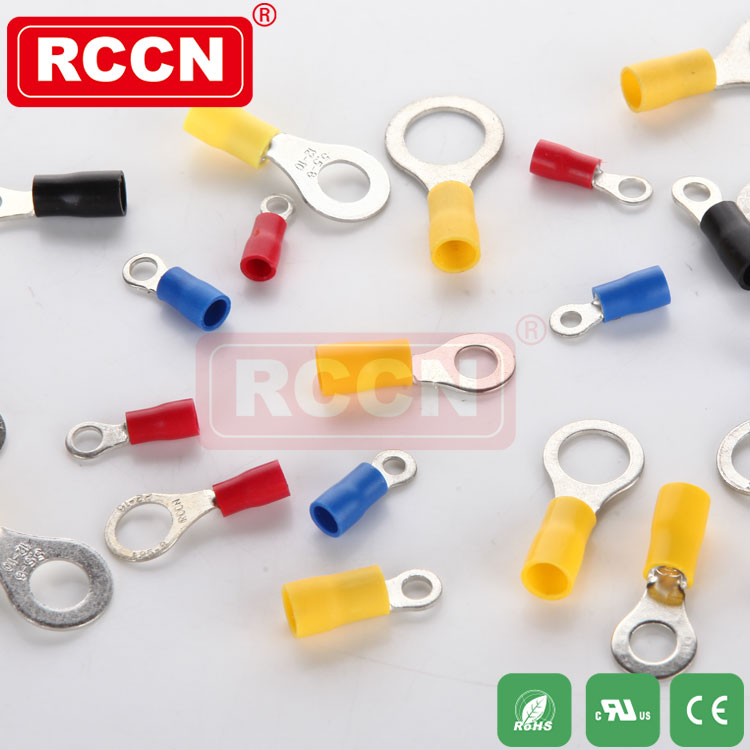

Insulated Ring Terminals

Material: Terminals made of high quality copper, good conductivity, high-quality
ROHS-PVC jacket system, durability is not easy aging.
Features: high-quality matte plating, anti-rust greatly extended time, no sharp parts;
supporting the day into the terminal clamp to clamp the wire, wiring beautiful,
International Certification: EU RoHS environmental certification, the European CE certification.
Features: high quality, not broken after release loose, -40 degrees to 85 degrees heat-resistant normal use.
Use way: the wire stripped skin, copper wire into the terminal after

Item No.	AWG/mm2	Dia. of bolt	B	L	F	H	Dφ	Color
	AWG/mm2	D2	mm	mm	mm	mm	mm
RF1.25-3	AWG:22-16 mm2:0.5-1.5 Current:19A Packing:1000PCS	3.2mm	5.7	17.8	4.95	10	4.3	Red
RFS1.25-3.5		3.7mm	5.7	17.8	4.95
RFM1.25-3.5		3.7mm	6.6	20.1	6.3
RFL1.25-3.5		3.7mm	8	21.5	7
RFS1.25-4		4.3mm	6.6	20.1	6.3
RFL1.25-4		4.3mm	8	21.5	7
RF1.25-5		5.3mm	8	21.5	7
RFL1.25-5		5.3mm	9.8	23	8.5
RFS1.25-6		6.5mm	9.8	23	8.5
RF1.25-6		6.5mm	11.6	27.5	11.1
RF1.25-8		8.4mm	11.6	27.5	11.1
RF1.25-10		10.5mm	13.6	31.6	13.9
RF1.25-12		13.0mm	19.2	36	16.5
RF2-3	AWG:16-14 mm2:1.5-2.5 Current:27A Packing:1000PCS	3.2mm	6.6	17.8	4.3	10	4.9	Blue
RFS2-3.5		3.7mm	6.6	17.8	4.3
RFM2-3.5		3.7mm	6.6	21	7
RFL2-3.5		3.7mm	8.5	22.5	7.75
RFS2-4		4.3mm	6.6	19.5	6.5
RFL2-4		4.3mm	8.5	22.5	7.75
RFS2-5		5.3mm	8.5	22.5	7.75
RFL2-5		5.3mm	9.5	22.5	7.25
RF2-6		6.5mm	12	27.6	11
RF2-8		8.4mm	12	27.6	11
RF2-10		10.5mm	14	31	13.9
RF2-12		13.0mm	19.2	36.5	16.5
RF3.5-4	AWG:12-14 mm2:2.5-4 Current:37A Packing:500PCS	4.3mm	8	24.5	7.7	13.5	6.7	Black
RFS3.5-5		5.3mm	8	24.5	7.7
RFL3.5-5		5.3mm	12	27.9	7.7
RF3.5-6		6.5mm	12	27.9	7.7
RF3.5-8		8.4mm	15	32	13.5
RF3.5-10		10.5mm	15	32	13.5
RF5.5-3.5	AWG:12-10 mm2:4-6 Current:48A Packing:500PCS	3.7mm	7.2	21.4	5.9	13.5	6.7	Yellow
RFS5.5-4		4.3mm	7.2	21.4	5.9
RFL5.5-4		4.3mm	9.5	26.5	8.3
RF5.5-5		5.3mm	9.5	26.5	8.3
RF5.5-6		6.5mm	12	31	13
RF5.5-8		8.4mm	15	33.7	13.7
RF5.5-10		10.5mm	15	33.7	13.7
RF5.5-12		13.0mm	19.2	38.1	16
RF8-3	AWG:8 mm2:6-10 Current:62A Packing:100PCS	3.7mm	10	30		17.5	4.5	Red
RF8-4		4.3mm	10	30
RF8-5		5.3mm	10	30
RF8-6		6.4mm	11	31.5
RF8-8		8.4mm	14	36
RF8-10		10.5mm	18	39.5
RF14-5	AWG:6 mm2:10-16 Current:88A Packing:100PCS	5.3mm	11	37.5		23	5.9	Red/Blue
RF14-6		6.4mm	11	37.5
RF14-8		8.4mm	14	43
RF14-10		10.5mm	18	45
RF14-12		13.0mm	18	45
