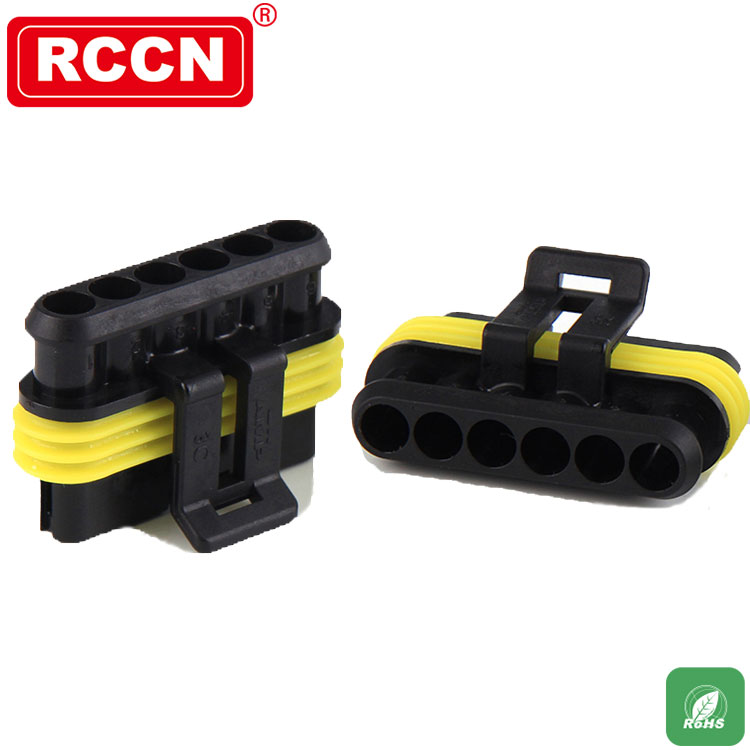

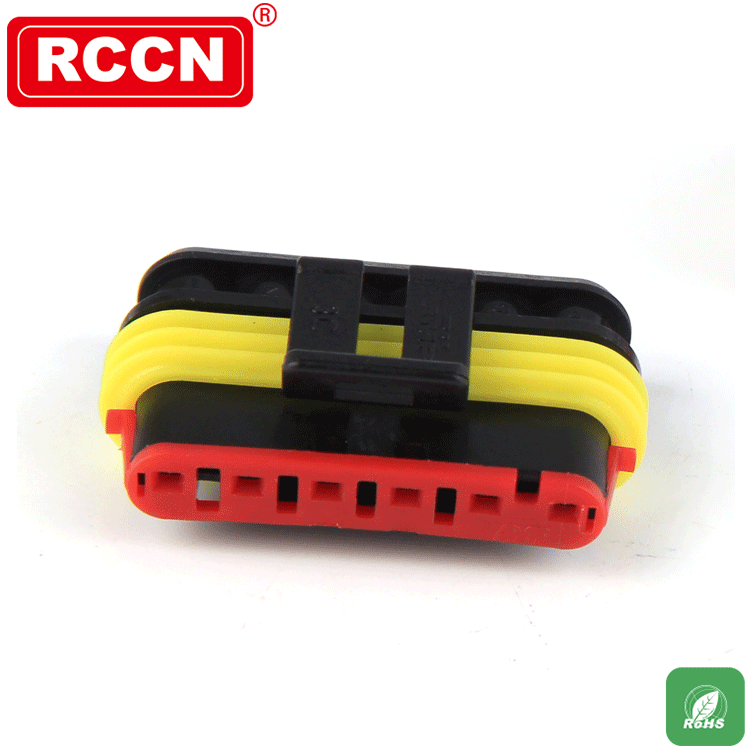

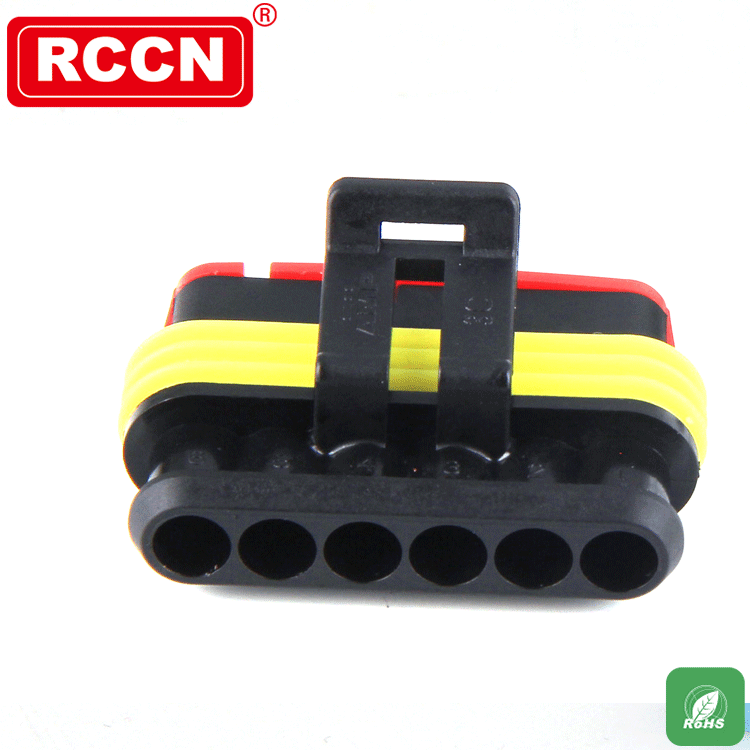

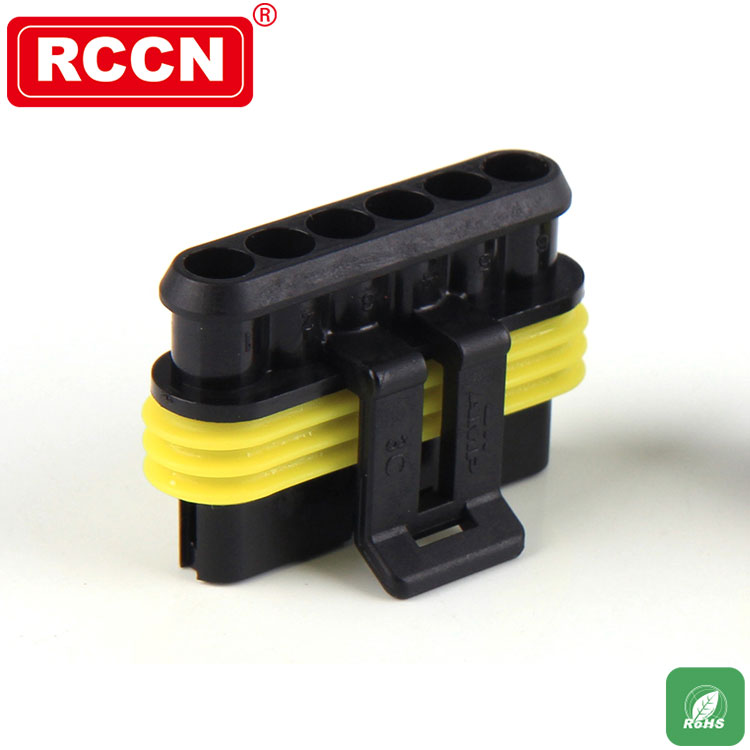

Female terminal housing 282090-1

Connector type: female terminal housing
Connector system: line to board, line to line, line to device
Main locking feature: on the terminal
Strain elimination: No
Electrical characteristics: Nominal voltage architecture (V) -12, 24, operating voltage (VDC) -24
Main features: black, cable outlet angle of 180 °, the main material PA GF
Contact Features: Docking male end width 1.5 mm
Temperature range: -40 - 125 ° C
Protection class: IP67
Uses: for cars, trucks, buses and off-highway vehicles in the shell
Packing: 350pcs
