Cable connector,cable waterproof connector

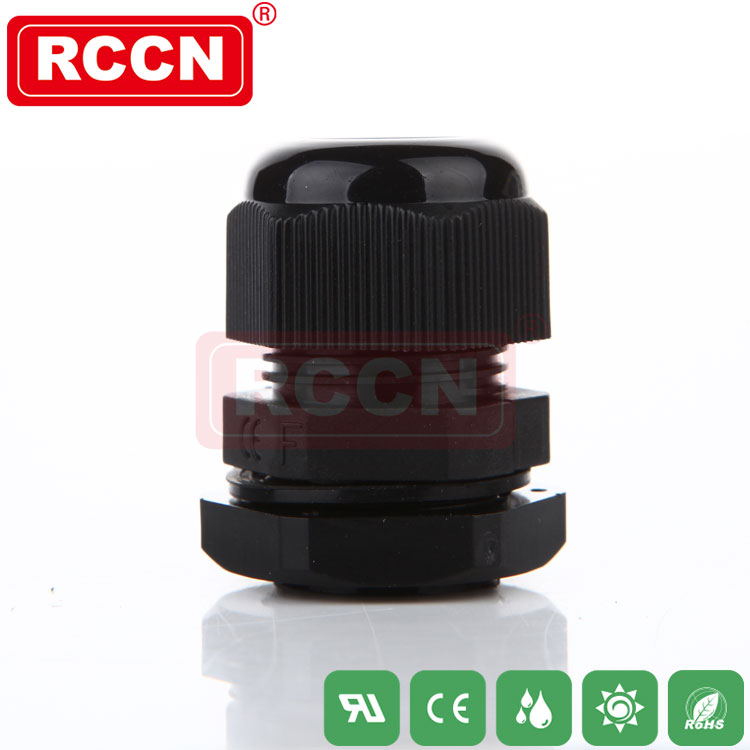

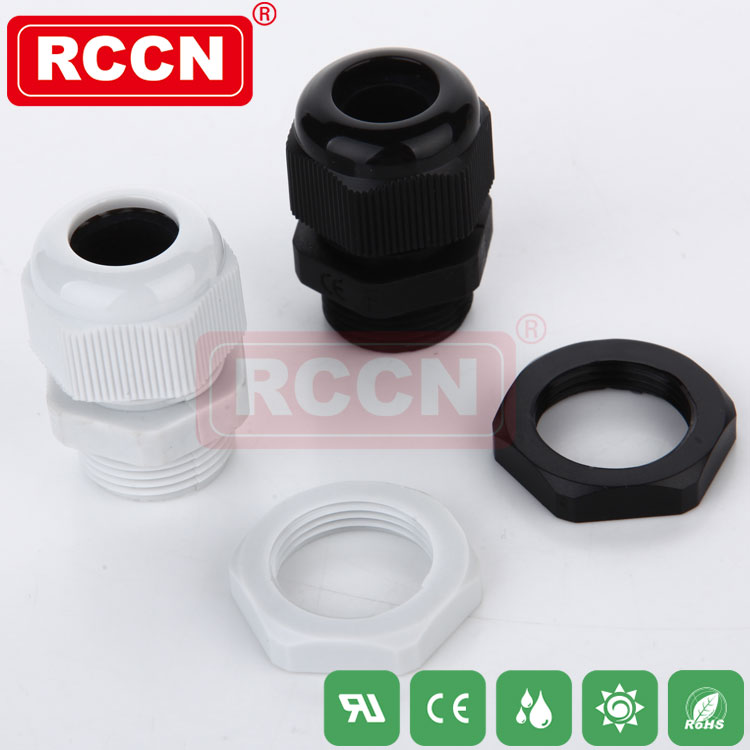

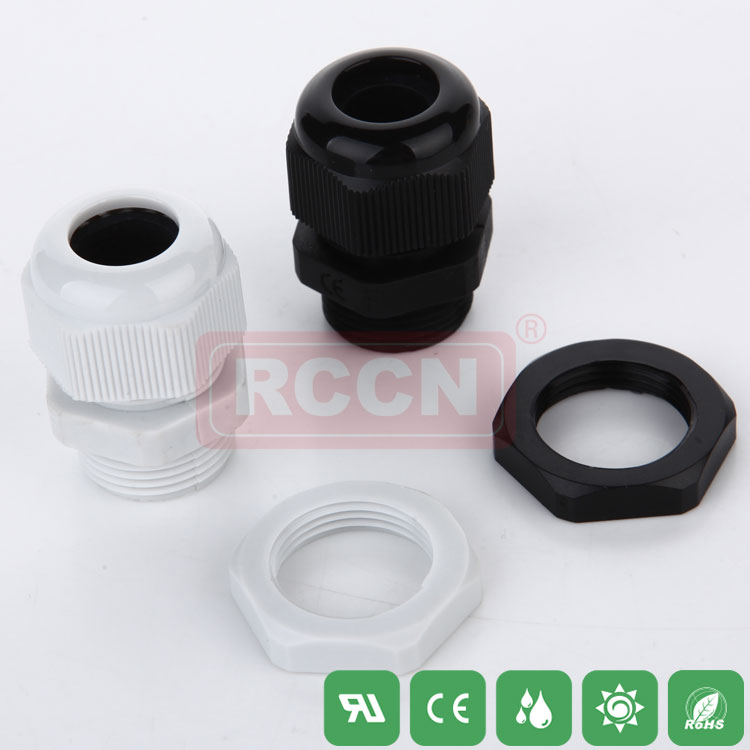

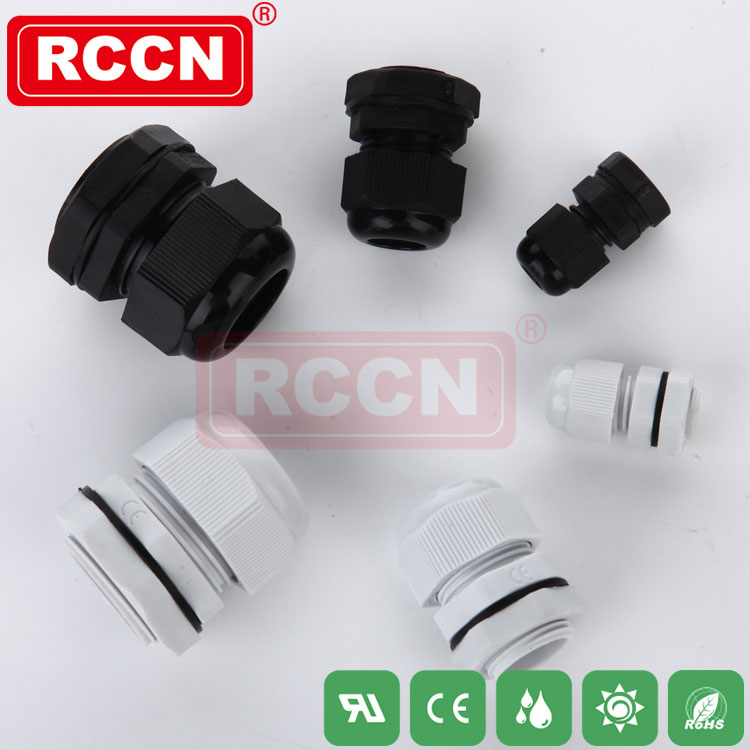

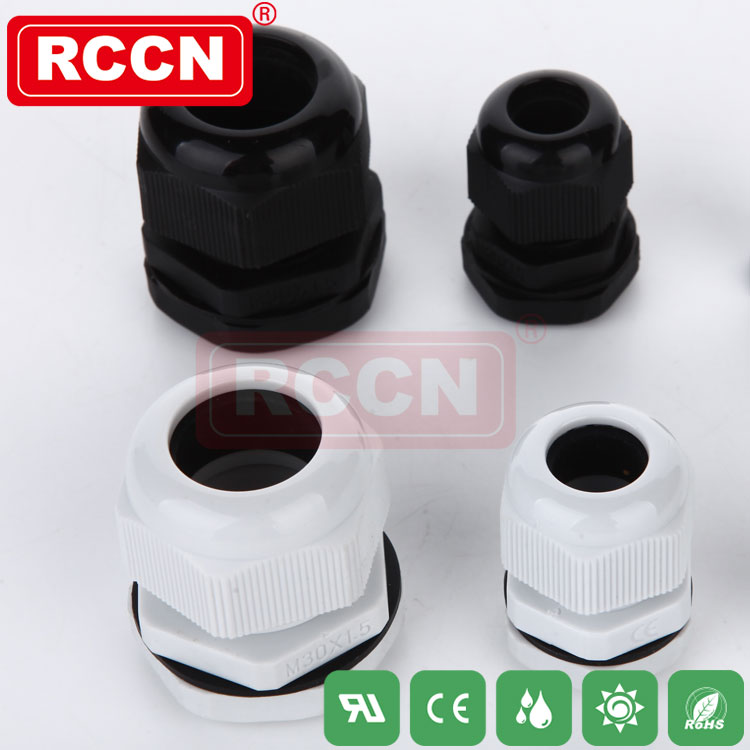

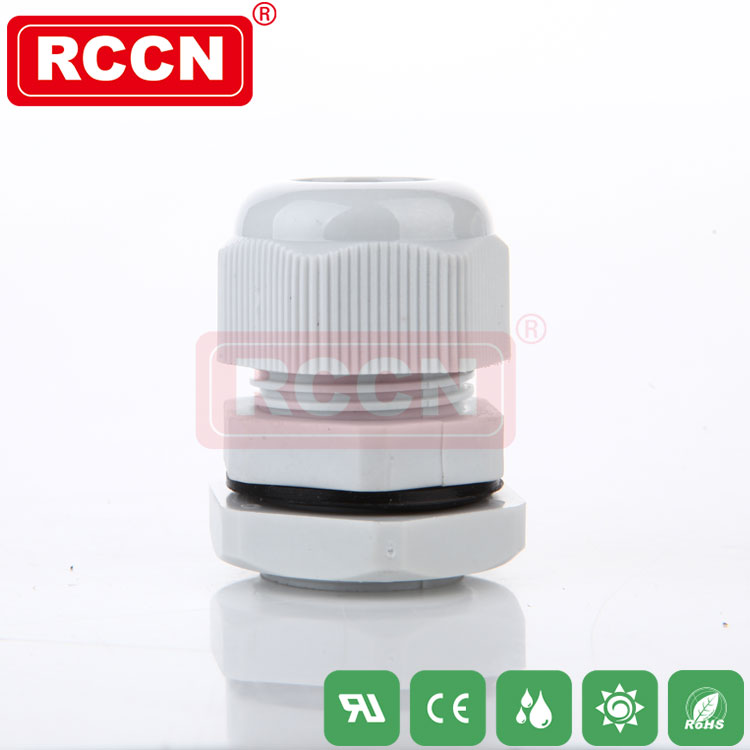

Nylon Cable Gland

Time saving, cable can be easily inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications,
mechanical control boards/ boxes.
*Material: Polyamide

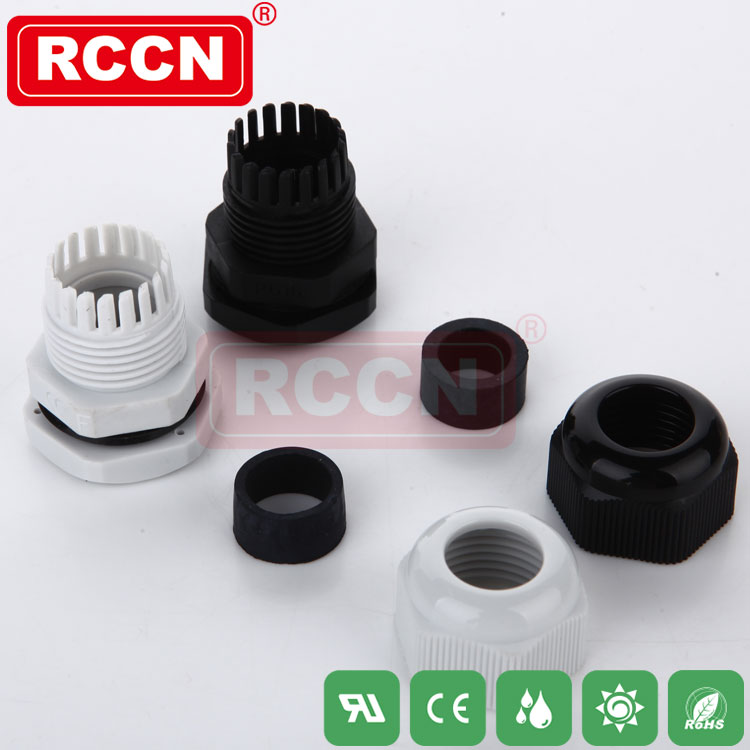

Neoprene for seal insert, with nut

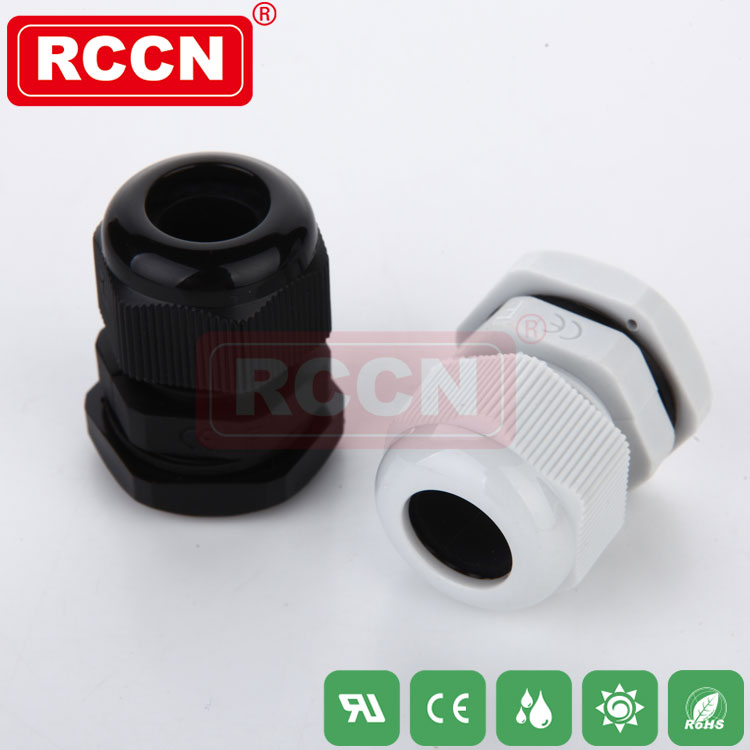

*Color: Black, White

Item No.		Thread	CableRange ￠	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Joint Length L2+L3	Spanner size A&F	Std.Pkg pcs
White	Black	Thread	CableRange ￠	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Joint Length L2+L3	Spanner size A&F	Std.Pkg pcs
standard
PG-7W	PG-7B	PG7	3-6.5	12.5	12.5-12.8	8	22	18/16	100PCS
PG-9W	PG-9B	PG9	4-8	15.2	15.2-15.8	8	26	22/19
PG-11W	PG-11B	PG11	5-10	18.6	18.6-18.9	8	27	24/22
PG-13.5W	PG-13.5B	PG13.5	6-12	20.4	20.4-20.7	9	28	27/24
PG-16W	PG-16B	PG16	10-14	22.5	22.5-22.8	10	30	30/27
PG-19W	PG-19B	PG19	12-15	24.1	24.1-24.5	10	30	30/28
PG-21W	PG-21B	PG21	13-18	28.3	28.3-28.7	10	35	36/33
PG-25W	PG-25B	PG25	16-21	30.1	30.1-30.3	11	34	37/36	50PCS
PG-29W	PG-29B	PG29	18-25	37.0	37.0-37.4	12	40	45/42	50PCS
PG-36W	PG-36B	PG36	22-32	47.0	47.0-47.4	14	48	58/53	20PCS
PG-42W	PG-42B	PG42	32-38	54.0	54.0-54.4	14	49	63/61
PG-48W	PG-48B	PG48	37-44	59.3	59.3-59.7	14	50	69/65
PG-63W	PG-63B	PG63	42-50	70.2	70.3-70.7	27	84	86/72	4PCS
thickening
PG-7SW	PG-7SB	PG7	2-5	12.5	12.5-12.8	8	22	18/16	100PCS
PG-9SW	PG-9SB	PG9	2-6	15.2	15.2-15.8	8	26	22/19
PG-11SW	PG-11SB	PG11	3-7	18.6	18.6-18.9	8	27	24/22
PG-13.5SW	PG-13.5SB	PG13.5	5-9	20.4	20.4-20.7	9	28	27/24
PG-16SW	PG-16SB	PG16	7-12	22.5	22.5-22.8	10	30	30/27
PG-19SW	PG-19SB	PG19	10-12	24.1	24.1-24.5	10	30	30/28
PG-21SW	PG-21SB	PG21	9-16	28.3	28.3-28.7	10	35	36/33
PG-25SW	PG-25SB	PG25	13-18	30.1	30.1-30.3	11	34	37/36
PG-29SW	PG-29SB	PG29	13-20	37.0	37.0-37.4	12	40	45/42
PG-36SW	PG-36SB	PG36	20-26	47.0	47.0-47.4	14	48	58/53	20PCS
PG-42SW	PG-42SB	PG42	25-31	54.0	54.0-54.4	14	49	63/61
PG-48SW	PG-48SB	PG48	37-44	29-35	59.3-59.7	14	50	69/65

Item No.		Thread	CableRange ￠	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Joint Length L2+L3	Spanner size A&F
White	Black	Thread	CableRange ￠	Thread O.D. D1	Panel Mounting Hole	Thread Length L1	Joint Length L2+L3	Spanner size A&F

PG-7LW	PG-7LB	PG7	3-6.5	12.5	12.5-12.8	15	22	18/16
PG-9LW	PG-9LB	PG9	4-8	15.2	15.2-15.8	15	26	22/19
PG-11LW	PG-11LB	PG11	5-10	18.6	18.6-18.9	15	27	24/22
PG-13.5LW	PG-13.5LB	PG13.5	6-12	20.4	20.4-20.7	15	28	27/24
PG-16LW	PG-16LB	PG16	10-14	22.5	22.5-22.8	15	30	30/27
PG-21LW	PG-21LB	PG21	13-18	28.3	28.3-28.7	15	35	36/33
PG-29LW	PG-29LB	PG29	18-25	37.0	37.0-37.4	18	40	45/42
PG-36LW	PG-36LB	PG36	22-32	47.0	47.0-47.4	18	48	58/53
PG-42LW	PG-42LB	PG42	32-38	54.0	54.0-54.4	18	49	63/61
PG-48LW	PG-48LB	PG48	37-44	59.3	59.3-59.7	18	50	69/65

PG-7SLW	PG-7SLB	PG7	2-5	12.5	12.5-12.8	15	22	18/16
PG-9SLW	PG-9SLB	PG9	2-6	15.2	15.2-15.8	15	26	22/19
PG-11SLW	PG-11SLB	PG11	3-7	18.6	18.6-18.9	15	27	24/22
PG-13.5SLW	PG-13.5SLB	PG13.5	5-9	20.4	20.4-20.7	15	28	27/24
PG-16SLW	PG-16SLB	PG16	7-12	22.5	22.5-22.8	15	30	30/27
PG-21SLW	PG-21SLB	PG21	9-16	28.3	28.3-28.7	15	35	36/33
PG-29SLW	PG-29SLB	PG29	13-20	37.0	37.0-37.4	18	40	45/42
PG-36SLW	PG-36SLB	PG36	20-26	47.0	47.0-47.4	18	48	58/53
PG-42SLW	PG-42SLB	PG42	25-31	54.0	54.0-54.4	18	49	63/61
PG-48SLW	PG-48SLB	PG48	37-44	29-35	59.3-59.7	18	50	69/65
