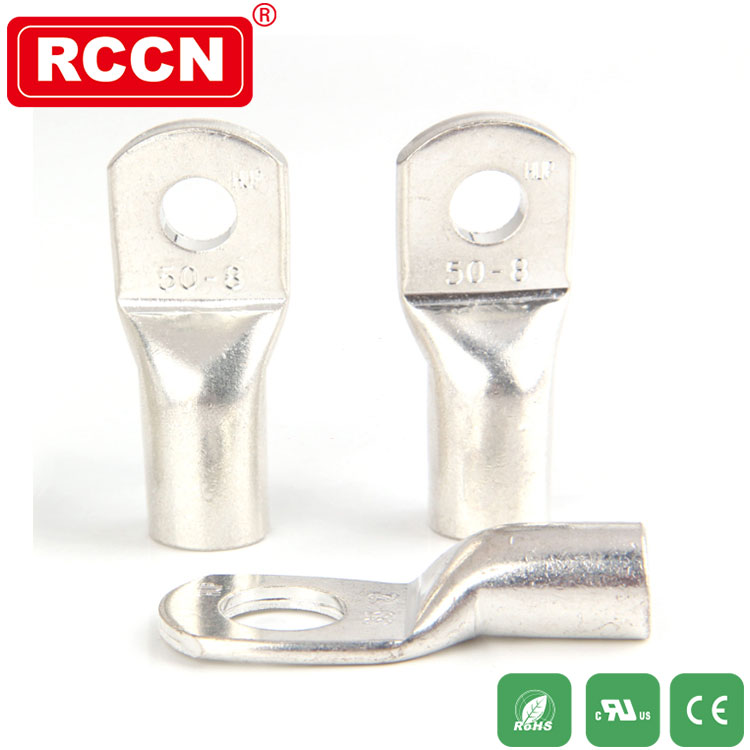

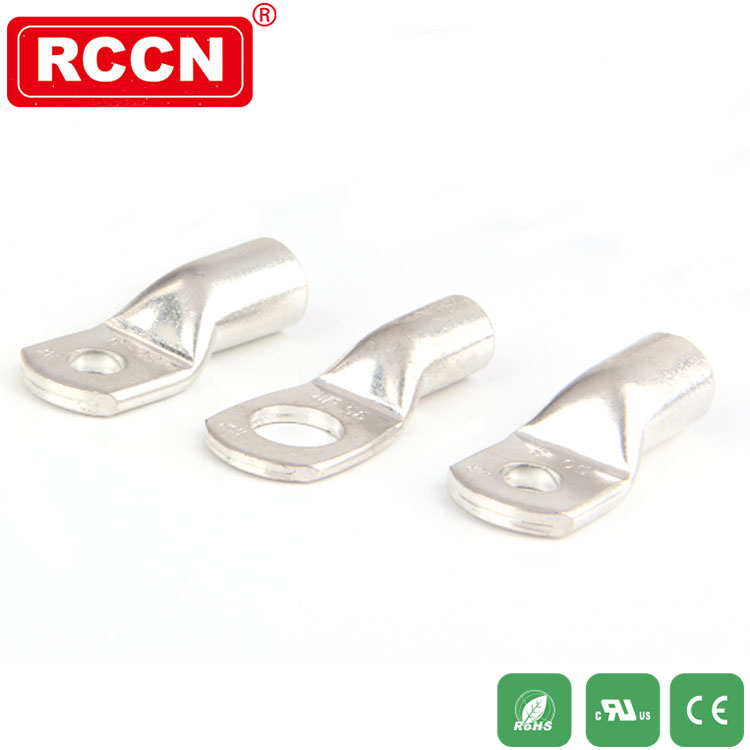

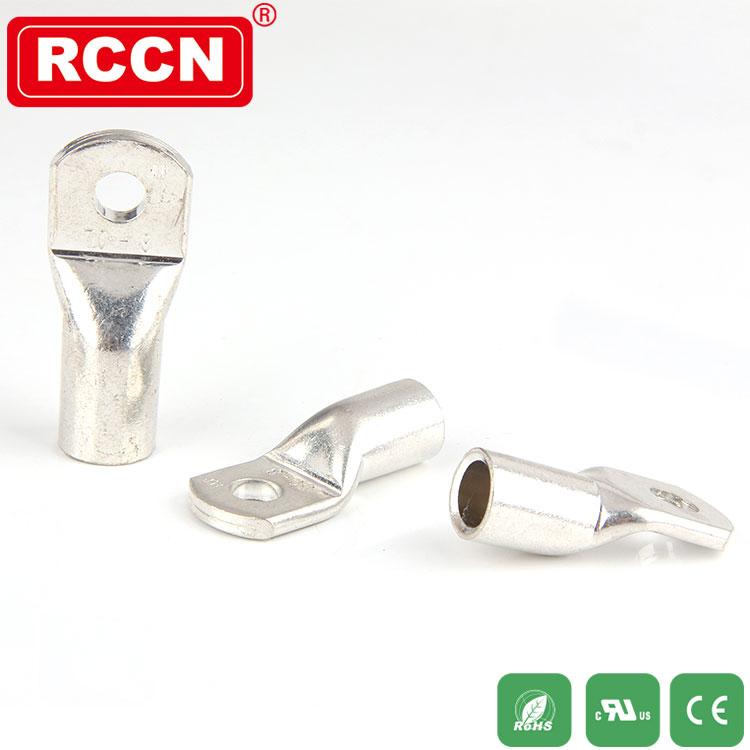

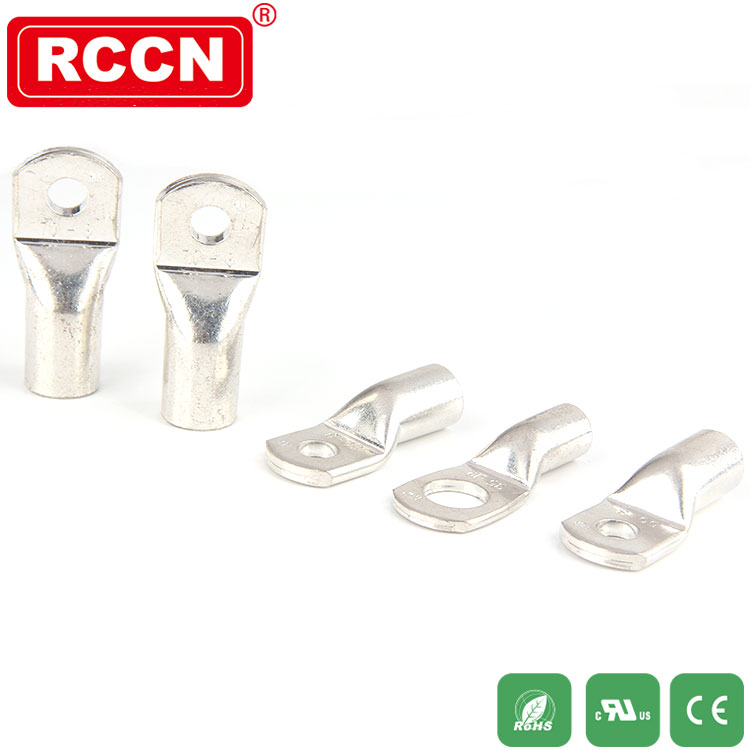

RCCN Terminas HUP

Cable Lugs, Copper

Advantage:keep perfect stability when it was
strong mechanical strain or shake,less amending,
used more widely
HUP inside hole enlarged, easy to insert cables.
Without inspection hole terminal,
Terminal Cold terminalCopper terminalCold crimp terminal standard

Specification

Item No. E Dφ dφ W B L
HUP1.5-3 3.2 3.3 1.8 6.5 6 15.3
HUP1.5-4 4.3 3.3 1.8 6.5 6 17
HUP1.5-6 6.5 3.3 1.8 9 6 22.5
HUP2.5-3 3.2 4.2 2.3 7.5 6 15.3
HUP2.5-4 4.3 4.2 2.3 7.5 6 17
HUP2.5-5 5.3 4.2 2.3 8.5 6 18.8
HUP2.5-6 6.5 4.2 2.3 9.5 6 22.5
HUP2.5-8 8.5 4.2 2.3 13 6 27.8
HUP4-5 5.3 5 3 9 8 21.8
HUP4-6 6.5 5 3 10 8 25.5
HUP4-8 8.5 5 3 13 8 30.5
HUP6-5 5.3 6.5 3.5 10 9 27.5
HUP6-6 6.5 6.5 3.5 12 9 27.5
HUP6-8 8.5 6.5 3.5 15 9 33
HUP6-10 10.5 6.5 3.5 17 9 37
HUP6-12 13 6.5 3.5 19 9 41
HUP10-5 5.3 7 4.5 12 10 28.5
HUP10-6 6.5 7 4.5 12 10 28.5
HUP10-8 8.5 7 4.5 15 10 35
HUP10-10 10.5 7 4.5 17 10 39
HUP10-12 13 7 4.5 19 10 42
HUP16-5 5.3 8.5 5.5 12 13 32.5
HUP16-6 6.5 8.5 5.5 12 13 33.3
HUP16-8 8.5 8.5 5.5 15 13 37.5
HUP16-10 10.5 8.5 5.5 17 13 41.5
HUP16-12 13 8.5 5.5 19 13 45
HUP16-14 15 8.5 5.5 21 13 45
HUP25-5 5.3 10 7 14 15 37.5
HUP25-6 6.5 10 7 14 15 37.5
HUP25-8 8.5 10 7 16 15 42
HUP25-10 10.5 10 7 18 15 46
HUP25-12 13 10 7 19 15 48
HUP25-14 15 10 7 21 15 52.5
HUP35-6 6.5 12 8.5 17 17 39.5
HUP35-8 8.5 12 8.5 17 17 44
HUP35-10 10.5 12 8.5 19 17 49
HUP35-12 13 12 8.5 21 17 51
HUP35-14 15 12 8.5 21 17 54.5
HUP35-16 17 12 8.5 26 17 58
HUP50-6 6.5 14 10 20 19 47
HUP50-8 8.5 14 10 20 19 47
HUP50-10 10.5 14 10 20 19 51
HUP50-12 13 14 10 23 19 56
HUP50-14 15 14 10 23 19 59.5
HUP50-16 17 14 10 28 19 62
HUP50-20 21 14 10 30 19 67
HUP70-6 6.5 16.5 12 23.5 21 53
HUP70-8 8.5 16.5 12 23.5 21 53
HUP70-10 10.5 16.5 12 23.5 21 56
HUP70-12 13 16.5 12 23.5 21 59
HUP70-14 15 16.5 12 23.5 21 62.5
HUP70-16 17 16.5 12 28 21 66
HUP70-20 21 16.5 12 30 21 72
HUP95-8 8.5 18 13.5 26 25 60
HUP95-10 10.5 18 13.5 26 25 60
HUP95-12 13 18 13.5 26 25 62
HUP95-14 15 18 13.5 26 25 65.5
HUP95-16 17 18 13.5 28 25 70
HUP95-20 21 18 13.5 36 26 82
HUP120-8 8.5 19.5 15 28 26 65
HUP120-10 10.5 19.5 15 28 26 65
HUP120-12 13 19.5 15 28 26 65
HUP120-14 15 19.5 15 28 26 67
HUP120-16 17 19.5 15 30 26 70
HUP120-20 21 19.5 15 36 28 85
HUP150-8 8.5 21 16.5 30.5 30 70
HUP150-10 10.5 21 16.5 30.5 30 72
HUP150-12 13 21 16.5 30.5 30 72
HUP150-14 15 21 16.5 30.5 30 72
HUP150-16 17 21 16.5 30.5 30 74
HUP150-20 21 21 16.5 36 30 88
HUP185-10 10.5 24 19 35 30 83
HUP185-12 13 24 19 35 30 83
HUP185-14 15 24 19 35 30 83
HUP185-16 17 24 19 35 30 83
HUP185-20 21 24 19 39 30 91
HUP240-10 10.5 26 21 38 35 93.5
HUP240-12 13 26 21 38 35 93.5
HUP240-14 15 26 21 38 35 93.5
HUP240-16 17 26 21 38 35 93.5
HUP240-20 21 26 21 38 35 93.5
HUP300-12 13 29.5 23.5 43 44 111
HUP300-14 15 29.5 23.5 43 44 111
HUP300-16 17 29.5 23.5 43 44 111
HUP300-20 21 29.5 23.5 43 44 111
HUP400-12 13 34 27 49.5 44 114
HUP400-14 15 34 27 49.5 44 114
HUP400-16 17 34 27 49.5 44 114
HUP400-20 21 34 27 49.5 44 114
HUP500-16 17 42 31 59 70 150
HUP500-20 21 42 31 59 70 150
HUP630-16 17 44 34.5 63.5 80 170
HUP630-20 21 44 34.5 63.5 80 170
