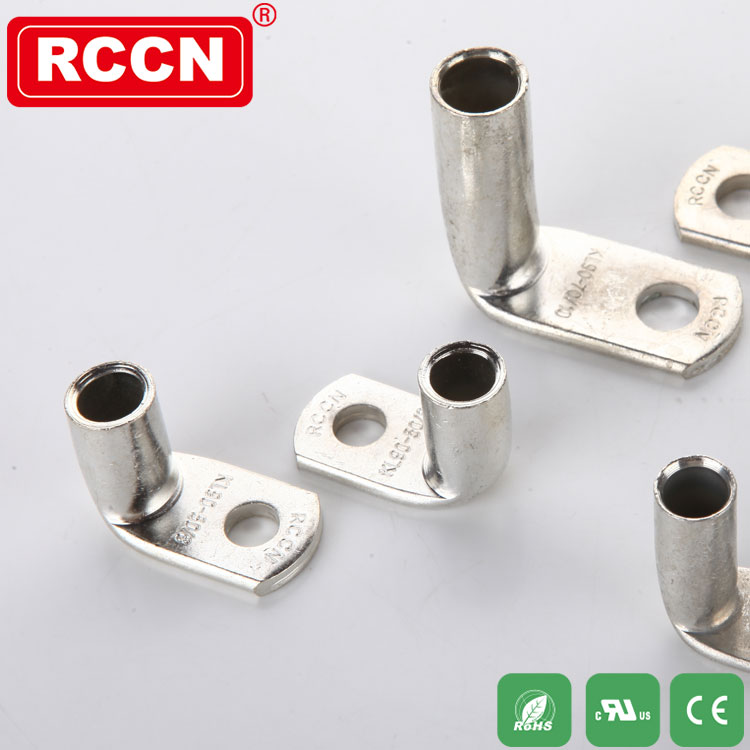

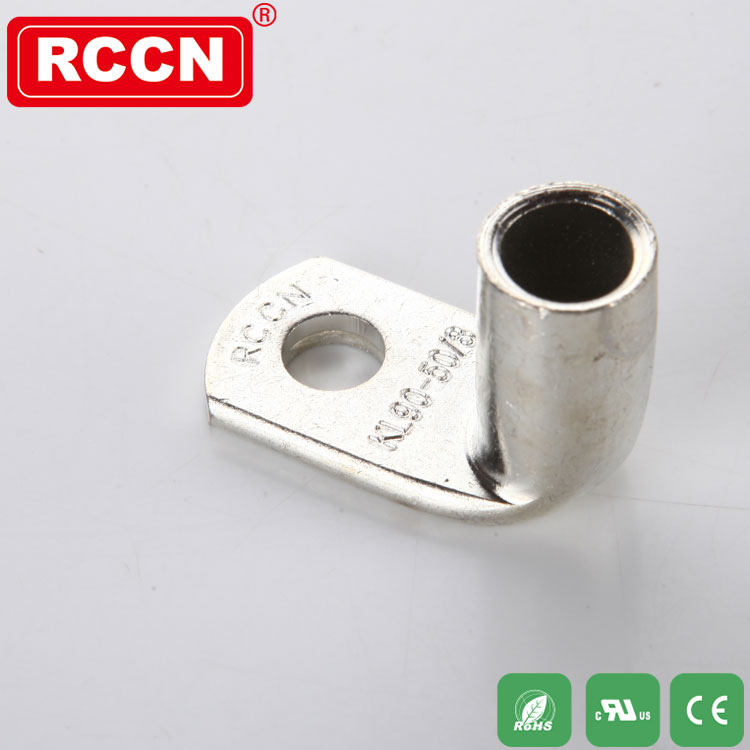

Terminal,Cold terminal,Copper terminal,Cold crimp terminal standard

Cable Lugs,Copper

Product Material: Terminal made of high quality copper, good conductivity
Features: The use of high-quality matte plating, greatly extended anti-rust time, no sharp parts; supporting the daily terminal crimping tools can be pressed wire, beautiful wiring,
International Certification: EU RoHS environmental certification, the European CE certification.
Product Features: Good quality, no crack after cracking open, -40 degrees heat to 150 degrees normal use.
How to use: peel the wire skin, into the terminal after the brass

Item No.	E	Dφ	dφ	W	B	L
KL90-16/5	5.5	8.5	5.5	12	13	17.5
KL90-16/6	6.5	8.5	5.5	12	13	18.8
KL90-16/8	8.5	8.5	5.5	15	13	23
KL90-16/10	10.5	8.5	5.5	17	13	27
KL90-16/12	12.5	5.5	5.5	19	13	31
KL90-25/5	5.5	10	7	14	15	18.5
KL90-25/6	6.5	10	7	14	15	18.5
KL90-25/8	8.5	10	7	16	15	23
KL90-25/10	10.5	10	7	18	15	27
KL90-25/12	12.5	10	7	19	15	31
KL90-25/14	15	10	7	21	15	34.5
KL90-35/6	6.5	12	8.5	17	17	18.5
KL90-35/8	8.5	12	8.5	17	17	23
KL90-35/10	10.5	12	8.5	19	17	27
KL90-35/12	12.5	12	8.5	21	17	31
KL90-35/14	14.5	12	8.5	21	17	34.5
KL90-35/16	17	12	8.5	26	17	38
KL90-50/6	6.5	14	10	19	19	20.5
KL90-50/8	8.5	14	10	19	19	23
KL90-50/10	10.5	14	10	19	19	27
KL90-50/12	12.5	14	10	23	19	31
KL90-50/14	15	14	10	23	19	34.5
KL90-50/16	17	14	10	28	19	38
KL90-50/20	21	14	10	30	19	43
KL90-70/6	6.5	16.5	12	23	21	23
KL90-70/8	8.5	16.5	12	23	21	24
KL90-70/10	10.5	16.5	12	23	21	28
KL90-70/12	12.5	16.5	12	23	21	31
KL90-70/14	15	16.5	12	23	21	34.5
KL90-70/16	17	16.5	12	28	21	38
KL90-70/20	21	16.5	12	30	21	43
KL90-95/8	8.5	18	13.5	26	25	26
KL90-95/10	10.5	18	13.5	26	25	29
KL90-95/12	12.5	18	13.5	26	25	31
KL90-95/14	15	18	13.5	26	25	34.5
KL90-95/16	17	18	13.5	28	25	28
KL90-95/20	21	18	13.5	36	25	46
KL90-120/8	8.5	19.5	15	20.5	26	30
KL90-120/10	10.5	19.5	15	20.5	26	31
KL90-120/12	12.5	19.5	15	20.5	26	32
KL90-120/14	15	19.5	15	20.5	26	35
KL90-120/16	17	19.5	15	30	26	38
KL90-120/20	21	19.5	15	36	26	46
KL90-150/8	8.5	21	16.5	27	30	30
KL90-150/10	10.5	21	16.5	27	30	31
KL90-150/12	12.5	21	16.5	27	30	33
KL90-150/14	15	21	16.5	27	30	35
KL90-150/16	17	21	16.5	27	30	38
KL90-150/20	21	21	16.5	36	30	46
KL90-185/10	10.5	24	19	35	30	40
KL90-185/12	12.5	24	19	35	30	40
KL90-185/14	15	24	19	35	30	40
KL90-185/16	17	24	19	35	30	40
KL90-185/20	21	24	19	39	30	46
KL90-240/10	10.5	26	21	31	35	43.5
KL90-240/12	12.5	26	21	31	35	43.5
KL90-240/14	15	26	21	31	35	43.5
KL90-240/16	17	26	21	31	35	43.5
KL90-240/20	21	26	21	31	35	45.5
KL90-300/12	12.5	29.5	23.5	43	44	48
KL90-300/14	15	29.5	23.5	43	44	48
KL90-300/16	17	29.5	23.5	43	44	48
KL90-300/20	21	29.5	23.5	43	44	48
KL90-400/12	12.5	34	27	49	44	48
KL90-400/14	15	34	27	49	44	48
KL90-400/16	17	34	27	49	44	48
